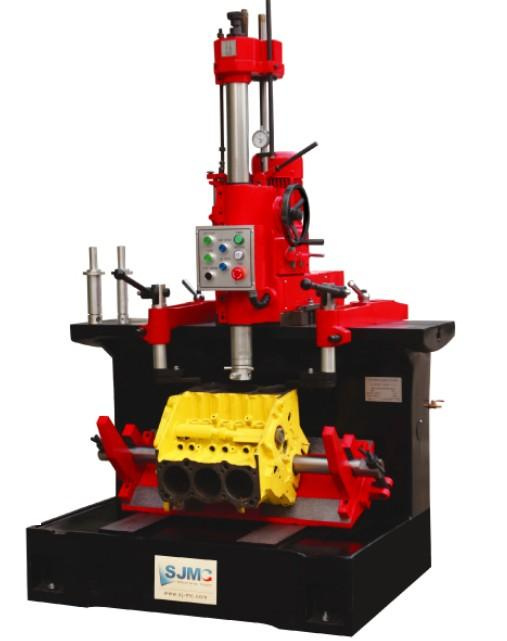

This machine is mainly used for reboring single line cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
Features:
1) Reliable performance, processing accuracy and high productivity
2) Easy and flexible operation
3) Air-floating location
4) Quick and precise automatic pressure
5) Spindle speed is suitable
6) With tool setting and measuring devices
7) With a vertical measuring device
8) Good rigidity
Model
| Unit
| TB8016
|
Boring diameter
| mm
| Φ 39- Φ 160
|
Max. boring depth
| mm
| 320
|
Boring head travel
| Longitudinal
| mm
| 1000
|
Transversal
| mm
| 45
|
Spindle feed
| mm/s
| 0.09
|
Spindle speed
| r/min
| 125,185,250, 370 ( 4 steps)
|
Spindle rapid reset
| mm/s
| 430 , 640
|
Pneumatic pressure
| Mpa
| 0.6 < P < 1
|
Motor power
| Kw
| 0.85 / 1.1
|
V-block fixture patented system
| degree
| 30 ° ,45 °
|
Overall dimensions
| mm
| 1250 × 1050 × 1970
|
Packing dimensions
| mm
| 1500 × 1140 × 2070
|
N.W./G.W.
| kg
| 1300/1500
|
