Product Specifications
| Prod Model: |
AK-CGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304 |
| Automatic Grade: |
Automatic |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Count Filling Machine |
| Packaging Container Lifting Structure: |
Chute Lifting |
| Filling Principle: |
Atmospheric Pressure |
| Packaging Type: |
Bottle |
| Dosing Device: |
Capacity Cup |
| Packaging Material: |
Plastic |
| Filling Valve Head: |
18-18-6 |
Product Description

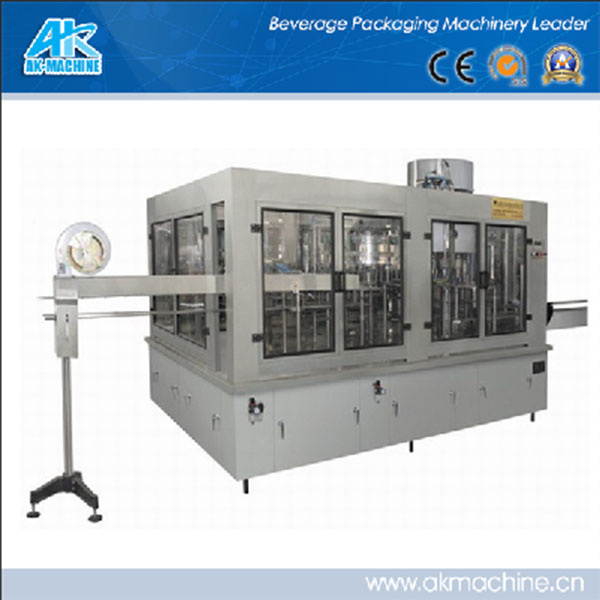

AK-CGF automatic 3 in 1 mineral/pure water filling machinery
Mineral water filling machineIt is multifunctional which can be used for washing, filling and capping. It is a kind of advanced filling machine integrator which is innovated in following the process requirements of filling Pure water, Mineral water, wine and etc based on the importing and assimilating the foreign advanced technology.
PRIMARY FEATURES 1. There are some features such as compact conformation, good shape, cozy operation, excellent automatic and poor labor intensity. 2. We adopt air conveyor bottle-feeding technology instead of the feeding screw and conveyer chain. Easily change the bottle change over parts. 3. It adopts the blocking bottleneck technology to convey bottles. It does not adjust the height of equipment when the type of bottle is exchanged. According to the diameter of bottle, you could exchange corresponding nylon elements such as arc slipper guide, thumb wheel etc.
AK-CGF automatic 3 in 1 mineral/pure water filling machinery
1)the machine can carry out the three functions of bottle washing, filling, capping.
2)the advanced programmed controller (PLC) is adopted to control the machine running automatically.
3)the bottle entry section adopts air conveyor system.
4)the bottle exit section adopts belt conveyor system, which can adjust the speed.
5)the machine are high quality, the key spare-parts are made buy famous producer.
After-sales Service Provided:
The machine which we supply to you, we can give you one year after-sale warranty, we also can arrange our engineer(s) to your factory to install the equipment and train your staffs by your requirment, but you should pay the round air ticket cost and arrange the hotel accommodation for our engineer(s).
Model
|
CGF16-12-6
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
CGF50-50-15
|
washing/filling / capping heads
|
16-12-6
|
18-18-6
|
24-24-8
|
32-32-10
|
40-40-12
|
50-50-15
|
production capacity(b/h) (for 500ml)
|
4500
|
7500
|
10000
|
15000
|
20000
|
24000
|
Punch pressure(kg/cm2)
|
2~3
|
power(kw)
|
4.30kw
|
5.05kw
|
6.55kw
|
8.65kw
|
9.65kw
|
10.70kw
|
size(mm)
(LxWxH)
|
2200x1550 x2700
|
2500x2020 x2700
|
3100x2200
x2700
|
4100x2550
x2850
|
4600x2950
x2850
|
5450x3450
x2850
|
weight(kg)
|
2500
|
3500
|
5500
|
7500
|
9800
|
11600
|
