Product Specifications
| Prod Model: |
DX-1088D3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Sslt |
| Model Number: |
Dx-1088d3 |
| Size: |
46*46*29mm |
| Wire Rope Dia: |
1.2mm |
| Low Battery Indication: |
Sound/Light Indication |
| Color: |
Black |
| Maximum Battery Standby Time: |
2 Years |
| Alarm Volume: |
>98db |
| Wire Rope Elastic Recoil: |
1/4 Lb |
| Wire Rope Length: |
1m (The Length Is Customization) |
Product Description

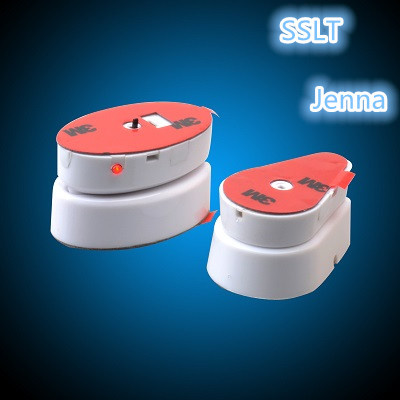

DX-1088D3
1.Choosing suitable end connector
SSLT-DX-1088D3 is the alarm pull-box with mouse sleeve connector PT-L02 and could be in different use with PT-Q, PT-B, PT-L01, PT-Z connector.
2. How to install SSLT-DX-1088D3
1) Clean the part of pull-box with towel and strip 3M sticker protector on the bottom, then stick the pull-box on the table or wall and the pull-box also could be fixed on the display stand with screw.
2) Puncture the PIN IN red spot displayed on the wheel of pull-box with the pin at the end of wire rope and push the pin to the bottom. After that, the alarm is activated immediately and send out sound/light indication, then take out the pin.
3) Knot the displays need to be protected with wire rope and insert the pin at the end of wire rope into L02
hole. Meanwhile, the end of wire rope is automatic locked tightly.
4) The red LED light of the activated alarm pull-box twinkling every 8-10 seconds.
3.The part trigger alarm
1) The alarm sounds immediately when the pull-box is teared from the table on purpose.
2) The alarm sounds immediately when the wire rope is cut off on purpose or broken.
4.How to take out displays from wire rope
Use GK02 or GK06 lock remover could unlock PT-L02 wire rope. Open the protection cap of EAS046 lock remover and cling it to the
bottom of PT-L02 lock, then take out the wire rope of PT-L02 lock.
How to adjust length of the end of wire rope:
There is a small hole in the side of PT-L02 lock. Use special key to loosen the wire
rope and adjust length of it, then use the key to lock the wire rope tightly.
5.How to shut down the alarm
Two below ways could be used to shut down the alarm after it sounds.
1) Use special anti-theft screwdriver to open top cover of SSLT-DX-1088D3 alarm pull-box and a switch will be revealed on the wheel of the
alarm pull-box. Push out black button of the switch towards the edge of the wheel with the pin at the end of wire rope, then the alarm is shut down. If the alarm malfunction recovers, it could be reopen with the pin.
2) Use remote control YK38 to shut down the alarm. Point Led window of remote control to the twinkling LED light and push the button on remote
control, after hearing three fast DI beep, the alarm is shut down. If the alarm malfunction recovers, it could be reopen with the remote control.
