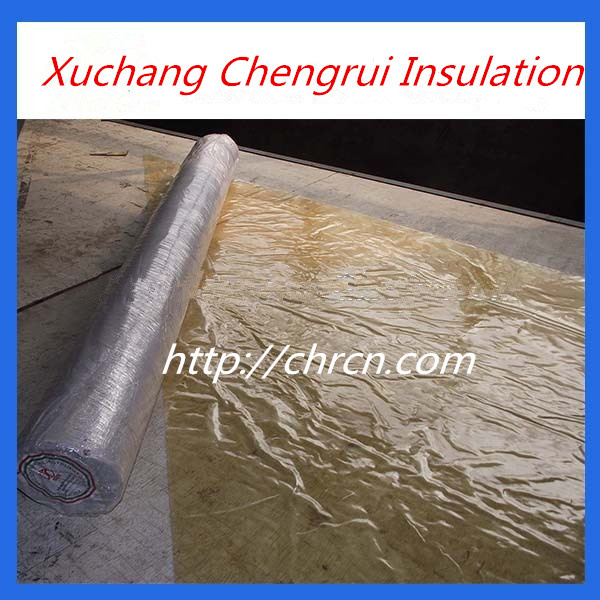

Alkyd Insulation Varnish Tape 2432

Name: Alkyd Insulation Varnish Tape 2432
Brand: China-Manufacturer-Directory.com
SKU: 702726232
Availability: InStock
Rating: 4.7 (109 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 6kg
Min Order:	500kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	2432
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.11mm-0.20mm
Width:	20mm 25mm 50mm 1200mm
Package:	Carton and Pallet
Heat-Resistance:	B Class 130
Storage Life:	1 Year
Application:	Insulating Varnish
Type:	Insulation Tape
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	<10KV
Brand:	Chr

Product Description

It is prepared by impregnating the glass fibre cloth with oil-modified alkyed varnish and then baking the coated cloth.
2432-Alkyd Varnished Varnished Glass cloth is prepared by impregnating the glass
fibre cloth with oil-modified alkyed varnish and then baking the coated
cloth.

Characteristics of Alkyd Varnished Varnished Glass cloth  :
It is class B(130 degree c)
It has good dielectric properties at normal condition
breakdown voltage>5.0-9.0 KV/mm
Alkyd Varnished Varnished Glass cloth  has high mechanical strength and suitable elongation.

Applications of Alkyd Varnished Varnished Glass cloth  :
It can be used for coil insulation and slot liner of electrical machines and
appliances with class B insulation system.
Nominal thickness:0.11mm, 0.13mm, 0.15mm,0.17mm,0.20mm

Item	Checking measure			unit	Requirments
1	appearance				Uniform lacquer flim ,no air bladder ,no crease,or any other defect .lacqure film cant be felt when open ,with neat cutting of the whole roll
2	width			mm	negotiable
3	Normal thickness			mm	0.12±0.020
4	thermoplastic (70±2,24h)			/	Lacquer film no felt ,no break off
5	Shrinkage 105±2,6h)(average )			%	≤4
6	Volume Resistance			Ω.m	Normality ≥1.0×1011
7	Breakdown voltage	room temperature	Medium	KV	≥7.2
		room temperature	min		≥4.8
		heating	medium		≥5.2
		heating	min		≥2.5
		After bending	medium		≥5.0
		After bending	min		≥2.5

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
