ADSS Cable
![]()
![]()

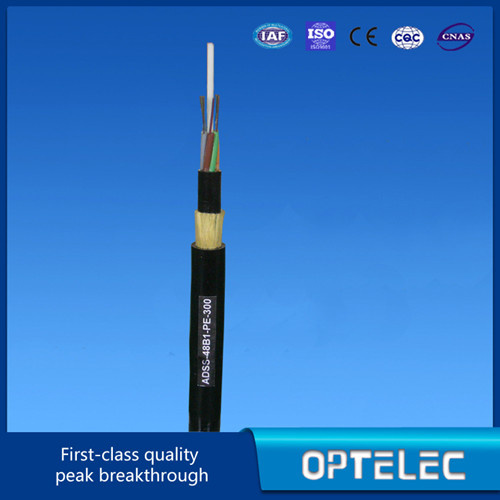

Description:ADSS cable is the short form for All-dielectric Self-supporting Optical Cable.
ADSS fiber optic cable is loose tube stranded; The tubes are filled with water resistant filling compound.
The tubes are stranded around fiber reinforced plastic are a non-metallic central strength member into a compact and circular cable core.
After the ADSS cable core is filled with filling compound, it is covered with a thin PE inner sheath, after two layers of Aramid yarns which are applied in two directions over the inner sheath as strength member,
ADSS optical fiber cable is completed with PE or AT outer sheath.
ADSS cable structure:1. Optical fiber cable
2. Fiber jelly
3. PBT loose tube
4. Filling compound
5. Central strength member FRP
6. Filling rope
7. PE inner sheath
8. Aramid yarn
9. Outer sheath
Notes: The use of power corrosion resistant sheaht is depended on power of ADSS optical fiber cable
PE shealth is used when power is less than or equal to 12KV;
Power corrosion resistant sheath (AT sheath) is used when power is more than 12KV.
ADSS Cable laying mode: Self supporting overhead
ADSS Cable operation temperature: -40C~ +65 degreeC
Features:. Small cable Dia, light weight, 1, 500m span, low attached load on tower.
. Tension strength is over 90KN.
. Non-metal structure, good insulation, anti-thunder.
. Fine production technology, even force for aramid fiber, with superior stress flexibility
. Anti gun fire
. Anti electro-corrosion.
. Adapt for bad climate.
. May construct without power cut, a power line failure doesn't influence cable's normal transfer.
Tension units are elastic modulus aramid fiber.
. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) ≤ 25KV/m.
Application:. Erect on the same pole with power line in new and old power line.
. A long span
. Areas of strong electric field, multi-thunder, etc
Installation Guide:![]()
Package&Shipment:
![]()
Technical Specifications:| ADSS with grade A sheath (Parts) |
| Structure drawing | Order Type Model | ADSS-PE 24B1-100M | ADSS-PE 24B1-200M | ADSS-PE 24B1-300M |
| Fiber count | 24fiber | 24fiber | 24fiber |
| Size of tube | φ2.0mm | φ2.0mm | φ2.0mm |
| Cable diameter | φ12.3 mm | φ12.4mm | φ12.6mm |
| Cable weight | 124kg/km | 128kg/km | 134kg/km |
| RTS | 6kN | 12kN | 18kN |
| Linear expansion coefficient | 9.0×10-6/degC | 8.0×10-6/degC | 5.6×10-6/degC |
| Young's modulus | 5.8kN/mm2 | 8.8kN/mm2 | 11.6kN/mm2 |
| ADSS with grade B sheath (Parts) |
| Structure drawing | Order Type Model | ADSS-AT 24B1-100M | ADSS-AT 24B1-200M | ADSS-AT 24B1-300M |
| Fiber count | 24fiber | 24fiber | 24fiber |
| Size of tube | φ2.0mm | φ2.0mm | φ2.0mm |
| Cable diameter | φ12.3 mm | φ12.4mm | φ12.6mm |
| Cable weight | 124kg/km | 128kg/km | 134kg/km |
| RTS | 6kN | 12kN | 18kN |
| Linear expansion coefficient | 9.0×10-6/degC | 8.0×10-6/degC | 5.6×10-6/degC |
| Young's modulus | 5.8kN/mm2 | 8.8kN/mm2 | 11.6kN/mm2 |
![]()
![]()
