All-in-One Motherboard with N550 2.6GHz, Lvds Dual 24bit, 2COM

Name: All-in-One Motherboard with N550 2.6GHz, Lvds Dual 24bit, 2COM
Brand: china-manufacturer-directory.com
SKU: 750191825
Availability: InStock
Rating: 4.7 (84 reviews)

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	ITX-M65_N55
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Graphics:	Support VGA/HDMI/Lvds Display Output
Printed Circuit Board:	Six Layer
Main Chipset:	AMD
Structure:	Mini-ITX
SATA Interface:	SATA2.0
Audio Effects:	Not HiFi
Memory:	DDR3
Integrated Graphics:	Integrated Graphics
Maximum Memory Capacity:	4G
Main Board Structure:	Integrated

Product Description

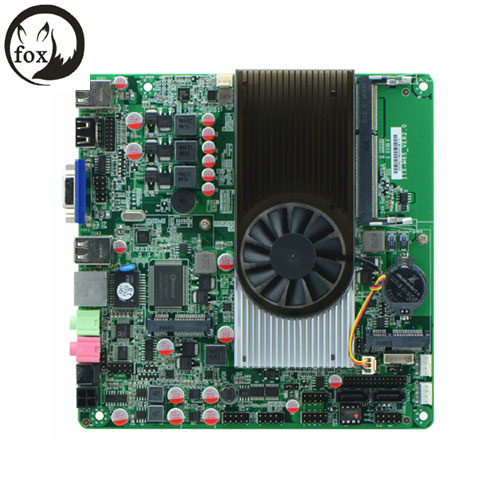

All-in-one Motherboard with N550 2.6GHz,LVDS dual 24BIT,2COM

AMD® N550 2.6GHz dual core Processor
RS880M+SB820M Chipset
1* SO DDRIII 1333/1066MHz, Max. Up to 4GB
ATI HD4250 Graphics, support 1080P HD
1* RTL8111E Ethernet,Support Wake-on
-LAN and PXE function
1* Mini-PCIE, support WIFI
Integrated Realtek HD ALC662 for 6-Channel output
Mini ITX Form Factor(17cmx17cm)

Model NO.	ITX-M65_N55 VER:2.0
CPU	AMD® N550 2.6GHz dual core Processor
Chipset	RS880M+SB820M Chipset
Memory	1* SO DDRIII 1333/1066MHz, Max. Up to 4GB
Graphics	ATI HD4250 Graphics, support 1080P HD
	Support VGA/HDMI/LVDS display output
	LVDS supports dual 24BIT
ExpansionSlots	1* Mini-PCIE, support WIFI
LAN	1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
Storage	2* SATAII
	1* MSATA, support SSD
Audio	Integrated Realtek HD ALC662 for 6-Channel output
	Support MIC/Line-out/Line-in
Rear I/O	4* USB 2.0
	1* HDMI
	1* VGA
	1* RJ-45 LAN
	1* Line out(green)
	1* Mic(red)
	1* 12V DC_JACK input
Internal I/O	1* LVDS 2*15pin
	1* JHDMI
	1* JVGA
	2* COM
	4* USB 2.0
	1* AUDIO pin (Front Audio interface 2*5pin)
	1* CD_IN pin Amplifier interface
	1* FP1 (2*5pin Front panel buttons and LED connected)
	1* ATX_12V (Can be used as input and output 12V power connector)
	2* PWROUT (Hard drive power connector)
	1* LVDS INVERTER
Fun interface	1* CPUFAN and SYSFAN 3pin
GPIO	1* GPIO (Support 4-way GPIO function)
BIOS	AMI 8MB DPI Flash ROM
Watchdog	Support hardware reset function (L256, 0~255 seconds)
Power Input	DC_12VSingle power supply
OperatingTemp.	-10ºC~60ºC
Storage Temp.	-20ºC~70ºC
Humidity	0%-95%(relative humidity; non-condensing)
Dimension	170mm x 170mm
