Product Specifications
| Prod Model: |
QJ226 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Seals Type: |
Tool, Car and Truck and Other Areas |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Double |
| Outer Dimension: |
Large (',200-430mm) |
| Material: |
Bearing Steel |
| Load Direction: |
Radial Bearing |
| Separated: |
Separated |
Product Description

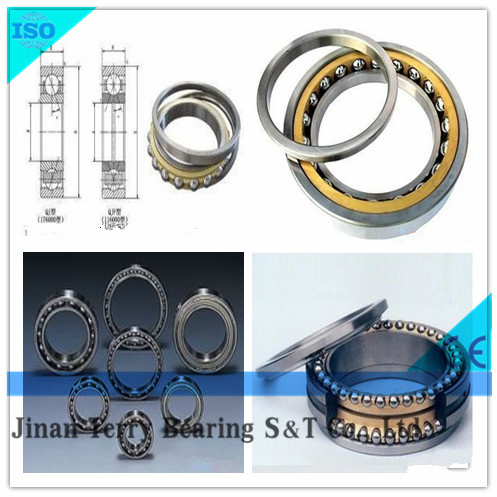

high precision angular contact ball bearing QJ226
QJ four point angular contact ball bearing is a kind of bidirectional single row angular contact ball bearing. As a result of the special design the groove in the inner and outer ring,it has two contact points with 35 or 45 contact angle between every groove and ball,and so the products can bear bidirectional axial load. It has high limited speed and is siutable for the high-speed operation.It allow the bearing to load a number of balls due to its combined inner ring with double half rings,thus giving a higher load bearing capacity.
OUR SPECIALTY
Our special solutions invented by professional machine and too manufacturing department are specially adapted to the needs of production .That means we can manufacture products flexibly and reduce the cost. The high-speed precision bearings developed by Terry are widely used in the fields of metallurgy mill, railway transportation,precision machinery,Construction Machinery,automotive and medicine The variety of standard and non -standard precision machine tool bearings are widely used for various high-speed precision machine tools and numerical control machine tools , which mainly include precision spindle bearings , precision ball screw bearings and bearing units etc. we possesses not only the first level bearing design technology including design theory , design software and computer hardware etc.,but also the first level bearing testing technique including bearing testing design methods, testing means, failure analysis measures etc.Possessing the complete bearing optimum design theory, our company can produce the bearings beyond the standard performance for different conditions .In particularly ,we have mastered the producing and matching technology of super precision machine tool bearings, and enjoy the approximately same lenel major technology as well-known international brands.
Delivery ways :
1).Small or sample order can shipped by DHL,TNT,EMS,UPS or
other ways as customer require.
2).big Quantity order shipped by sea.
3). Professional supplier: Over 10 years in precision bearing, rollers.
4). SGS/CE/ISO9001 Certificate
Advantage :
1).Excellent and high quality control
2).Prompt delivery
3).Competitive price
4).Small order accepted
5).Customers' drawing or samples accepted
6).OEM service
We supply following items
Bearing No. |
d(mm) |
D(mm) |
B(mm) |
QJ205MPA |
25 |
52 |
15 |
QJ206MPA |
30 |
62 |
16 |
QJ207MPA |
35 |
72 |
17 |
QJ208MPA |
40 |
80 |
18 |
QJ209MPA |
45 |
85 |
19 |
QJ210MPA |
50 |
90 |
20 |
QJ211MPA |
55 |
100 |
21 |
QJ212MPA |
60 |
110 |
22 |
QJ213MPA |
65 |
120 |
23 |
QJ214MPA |
70 |
125 |
24 |
QJ215MPA |
75 |
130 |
25 |
QJ216MPA |
80 |
140 |
26 |
QJ217MPA |
85 |
150 |
28
|
We are one of the most influential bearing suppliers and professional sales. Our products categories mainly include: Auto bearing, Deep Groove Ball Bearings, Cylindrical Roller Bearings, Tapered Roller Bearings, Thrust Ball Bearings, Self-aligning Ball Bearings, Angular Contact Ball Bearings, Spherical Roller Bearings, Needle Bearings, linear Bearings, Pillow Block Bearings, the Ceramic Bearings, Joint Bearings, Slewing Bearings, Cam Followers Bearings and Electronic Bearings etc.
About the market of our products, except for our domestic market, our products meet to countries all over the world, such as Asia, Africa, South America, Europe, Middle East and etc. Because of the high quality level and good services, are accepted by all clients
Our company offers more than 25, 000 different kinds of bearing. In addition, we can supply from stock and have enough stock bearings ready for clients.
We are engaged in exporting brand bearings for many years, such as SKF bearings, TIMKEN bearings, NSK bearings, NTN bearings, KOYO bearings, NACHI bearing, and IKO bearings. Also we are an agency of UBC bearings, GMN bearings and Luoyang LYC bearings, Wafangdian ZWZ bearings, Harbin HRB bearings.
High quality and long life bearings are the aim of IKC Bearings, creatibg the naximum value for customers, our company is pushing forward moden managerment in full aspects and builds up own bearing brand "PLETON", and will make in known at home and abroad. We will try our best to provide customers with excellent products and services, and are wishing to sincerely cooperate with customers from home and abroad to achieve win-win.
