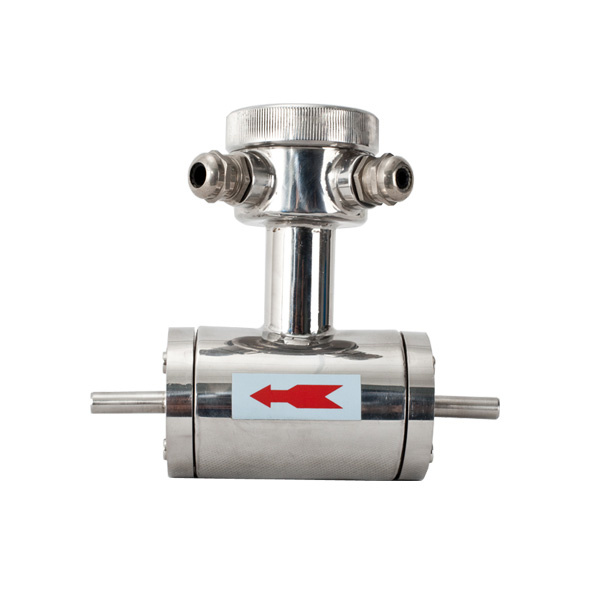

All Stainless Steel Electromagnetic Flowmeter/Flow Meter

Product Specifications

Prod Model:	AMF series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dn:	3-3000mm
Electrode Material:	316L, Hb, Hc, Ti, Ta, PT
Lining Materil:	Cr, Pur, PTFE, Fe, Customization
Working Pressure:	DIN Pn0.6-40mpa, ANSI Cl150-2500, JIS 10k-30k
Flow Sensor Material:	Carbon Steel, 304/316 Stainless Steel
Construction:	Integral, Remote
Power Supply:	24VDC, 220VAC, Lithium Battery
Output Signal:	4-20mA, Pulse
Communication:	RS485, RS232, Hart, Profibus, Modbus
Repeatability:	0.1%
Type:	Electromagnetic Flow Meter
Accuracy:	?à0.2-0.5%
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles
Size:	DN100-500
Principle:	Faraday Electromagnetic Induction

Product Description

CE, ISO9001, BV approved

Garantee the quality for 12 months

4-20mA, Pulse output

RS485, RS232, HART, MODBUS, PROFIBUS

Favourable price

Features:

-LCD Display

High Accuracy: +/-0.2% (Customize), +/-0.5% (Standard)

Temperature of Measured Liquid: < 80(Rubber), < 180 (F4), < 60 (PUR), < 260(PFA)

Pressure of Measured Liquid: 0.6-40MPa

Ambient Temperature: -25~+60

Power Supply: 220V AC, 24V DC, Built-in Battery (Working life: 3-5 years)

Protection Grade: IP66, IP67, IP68

Connection: Flange, Clamp on, Thread

Ex-Proof Marks: Exde I b II BT3

Communication: RS-485, HART

Data can be saved more than 10 years when there is no electricity
