Specifications:
1. Photoelectric integration RF module
2. Low noise, low distortion, low optical power
3. Using high quality NXP or NEC module
4. Multistage optical signal indication
5. Using plug-in devices with guiding groove, could achieve blind mating. Asymmetrical stitch of the equalizer had been designed to avoid incorrect using. Gilded copper stitches and pins are suitable for contacting and debugging.
6. The standard single output model could be extended to two tap or split outputs.
7. Use two aluminium panels inside to preventing electromagnetic radiation
Multistage lightning protection devices ensure long-time stable and continuous working in an adverse environment.

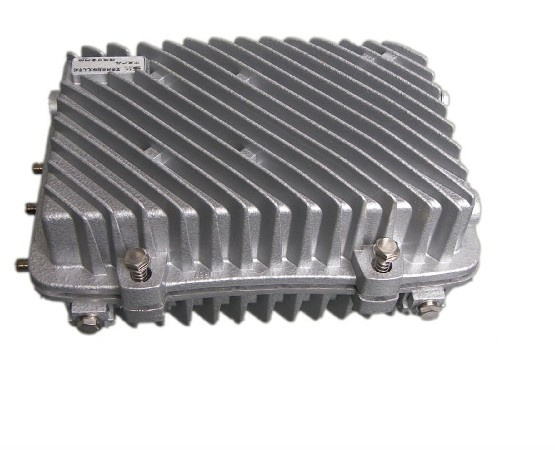

8. New attractive aluminium alloy case with waterproof, moistureproof and anti-Oxidation design is favourable to installation and heat elimination.
9. Intelligent: RG-45 Ethernet interface is optional, for implementing a monitor system under
.
Items |
Units |
Technical Parameter |
Downstream Receiving |
Upstream Receiving |
Optical Power |
|
-7 ~ +2dBm |
1 ~ 3mw |
Optical Return Loss |
dB |
≥ 45 |
|
Optical Wavelength |
nm |
1100 ~ 1600 |
1310± 10 |
Optical Fiber Connector |
|
FC/APC, SC/APC(optional) |
Operating Fiber Type |
|
single model |
Carrier To Noise Ratio |
dB |
≥ 51 |
|
C/CTB |
dB |
≥ 65 |
|
C/CSO |
dB |
≥ 60 |
|
Frequency Band |
MHz |
45/87 ~ 750/862 |
5 ~ 30/65(optional) |
Flatness In Band |
dB |
± 0.75 |
± 1.5 |
Nominal Output Level |
dBuV |
≥ 100 |
|
Max Output Level |
dBuV |
≥ 108 |
|
Automatic Gain Control |
|
Output Levelkeeping unchanged when the input optical signal is from -7 to +2. (optional) |
|
Gain Adjust Range |
dB |
1 ~ 20dB Fixed Attenuations (1dB step)or adjustable continuously |
1 ~ 20dB Fixed Attenuations (1dB step) |
Slope Adjust Range |
dB |
1 ~ 15dB Fixed Attenuations (1dB step)or adjustable continuously |
|
RF Reflection Loss |
dB |
≥ 16 (45 ~ 550MHz)
≥ 14 (550 ~ 750/862MHz) |
|
NPR Dynamic Range |
dB |
|
≥ 10 (NPR≥ 30) |
Output Impedance |
Ω |
75 |
Working Temperature |
degrees |
-40 ~ +60 |
Storage Temperature |
degrees |
-40 ~ +80 |
Power Voltage |
V |
AC135 ~ 265 or AC35 ~ 90 |
|
|
|
|
|
