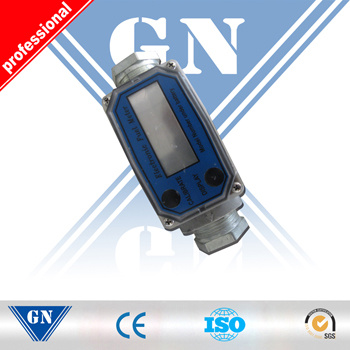

Aluminium Turbine Flow Meter (CX-WLTFM)
Product Specifications
| Prod Model: |
CX-WLTFM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Temp: |
130c |
| Max Size: |
200mm |
| Output And Communitaion: |
Pulse,4-20mA,RS485,RS232 |
| Certificate: |
ISO,CE,SGS |
| Pressure: |
4.0MPa |
| Type: |
Turbine Flow Meter |
| Measuring Principle: |
Mechanics |
| Measuring Media: |
Liquid |
| Accuracy: |
?à0.6-1% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
|
| Sensor: |
Flange,Thread,Insertion |
Product Description
Turbine Flow Meter
Brief introduction
1.It can measure the liquid rate and total flow rate of low viscosity
2.Widely used in the fields of Petrol, Chemical industry,Metallurgy,Scientific research
3.Transmitting distance from sensor to display instrument up to 1000m.
MODEL:CX-LTFM
| Size | 4~200mm |
| Flow rate | 0.04 ~800m3 / h |
| Medium temp. | -20 ~ +120 C |
| Ambient temp. | -20 ~ +55 C |
| Power supply | Voltage: +5-24 VDC, Current: ≤ 10mA |
| Output | 4 ~ 20mA two-wire |
| Display | Local LCD indicator |
| Explosion | No or yes (optional) |
| Accuracy | 1% |
| Connection | Thread(DN4-DN40),flange(DN50-DN200) |
| Max pressure | 4.0Mpa(DN4-DN40),2.5Mpa(DN50-DN200) |
MODEL:CX-GTFM
| Output | 4-20ma/pulse |
| Supply | 24VDC±15% or lithium battery |
| Accuracy | 2.5~1.5 class |
| Display | Optional |
| Size | DN25~DN300(can be customized) |
| Communication | RS485 |
| Material | Aluminium alloy or stainless steel |
| Ex-proof | ExdIIWT6 or ExiSIICT4 |
| Protection | IP65 |
| Installation | Flange |
| Medium temp | -20C~80C |
| Ambient temp | -30C~60C |
Main features
1.High accuracy, Everlasting, Small volume turbine flowmeter
2.Lithim battery, can supply 9000 hours power
3.Module desi output module, sensor and long-distance transfers
4.It can be used with IS
5.Easy to change the spare parts inside, and easy to assembling and maintain
Technical parameters
| Connecting Style | NPT(female thread) ANSI(flange) |
| Material | Aluminum 316 stainless steel |
| Present dimension | 1/2" , 3/4" , 1" 2" |
| Flow range | 1/2" :1-10GPM (3.8-37.9LPM) |
| 3/4" : 2-20GPM (7.6-75.7LPM) |
| 1" :5-50 GPM (18.9-190LPM) |
| 1-1/ 2" : 10-100GPM (38.0-380LPM) |
| 2" : 20-200GPM (76-760LPM) |
| Accuracy | Turbine flowmeter with microlat |
| Turbine flowmeter with microkit | 1/2'' | ±1.5% |
| 3/4" | ±1.0% |
| 1" | ±1.0% |
| 1-1/ 2" | ±0.5% |
| 2" | ±0.5% |
| Repetition | ±0.1% |
| Pressure class | 300PSI/21 |
| Temperature range | 140F-+2500F(-400ºC-1210ºC) |
| 140F-+1400F(-100ºC-600ºC) |
| Material of connected parts | noumenon | Aluminum |
| axletree | chinaware |
| axes | carbide |
| rotor | PVDF |
| annulus | 316 |
| Supposed filter dimension | 55 |
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. Now company involves in polyurethane, fuel consumption, automotive, dispensing robots, semiconductors, odorizing equipment, batteries, electricity, telecommunications, petroleum, chemical, coal, metallurgy, water conservancy, food, medical, machinery and other industries. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Now we have super mirco flow meter, oval gear flow meter, coriolis mass flow meter, electromagnetic flow meter, piston flow meter, and Spur gear flow meter, gear pump, gear metering pump. There is no other manufactures who can produce micro flow meter and many company import this kind of flow meter from Japan or America. After we put our micro flow meter into market, the news was spreaded widely and we got many reputation from our client. We now have sold this flow meter to more than 100 countries which contain wide and different applications. Meanwhile our oval gear flow meter has aquired many certificates and filled the vacancy of Chinese market. At the same time, in order to cooperate with the whole set of sales and services of the product, we can also produce supporting quantitative systems, various proportioning systems and industrial automation systems, allowing customers to have a wider range of choices.
