Product Specifications
| Prod Model: |
XY004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1220mm*2440mm,1220mm*3000mm: |
1220*3600mm |
| 1220mm*6000mm: |
Aluminum Thickness: 0.5mm+0.5mm |
| High Strength: |
High Smoothness |
| Light Weight: |
Easy to Install |
| Recyclable: |
Environmental |
| Surface Finishing: |
Color Printing |
| Panel Thickness: |
4mm |
| Aluminum Thickness: |
0.5mm |
| Function: |
Mould-proof |
| Usage: |
Cladding Decoration |
| Certification: |
ISO |
Product Description
Descriptions

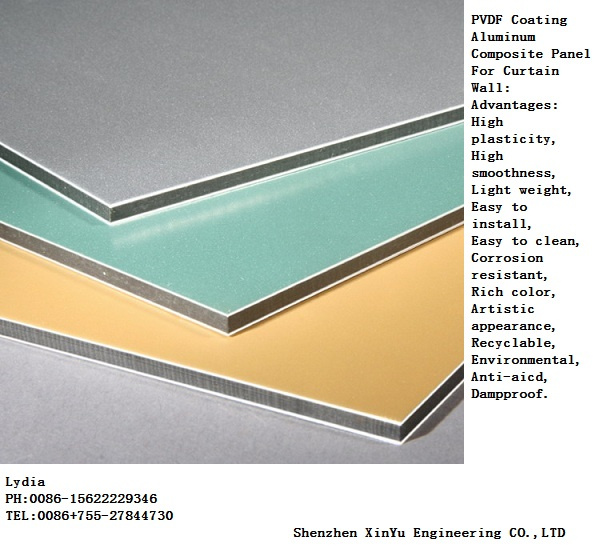

Aluminum Composite panel for construction cladding and curtain wall is made from high quality Aluminum alloy supplied by world famous big enterprises. The surface is coated with fluorocarbon (PVDF) paint made by PPG from USA or Akzon from the Netherlands
The Aluminum panel is composed of aluminum plate, reinforcement bars and installing racks etc.
Custom thickness of panel is 2.0mm, 2.5mm, 3.0mm and the standard dimension is 1220x2440 (mm).
The fluorocarbon (PVDF) coating has excellent corrosion and environment resistances, it can prevent ultraviolet (UV) and protect color of panel from discoloring and pulverizing. The fluorocarbon paint we're using is supplied by PPG, DuPont, Akzon, Nippon etc. As a professional manufacturer, we can produce different color, thicnkess, dimension and shape according to customer's demand and request.
Commodity |
Fireproof aluminum plastic composite panel, steel-plastic composite
panel, stainless steel plastic composite panel, titanium-zinc plastic
composite panel, copper-plastic composite panel, titanium-plastic
composite panel |
panel |
A3003, A5052 high quality aluminum plate, titanium plate,stainless
steel plate, copper plate |
Core material | Fireproof polyethylene or polyethylene |
| Surface coating | PVDF, Polyester |
| Color | All colors, Enamel grain, Marble grain, Wood grain, Wire drawing |
| Sticking film | USA DuPont macromolecule sticking film or Japanese MITSUBISHI macromolecule sticking film. |
| Total thickness | 3mm, 4mm, 5mm, 6mm |
| Aluminum skin | 0.12mm, 0.15mm, 0.18mm,0.21mm,0.30mm,0.40mm,0.45mm,0.50mm |
| Width | 1000mm. 1240mm, 630m |
| Length | 2000mm, 2440mm, 3000mm, 6000mm |
1. Dimensions of Aluminum Composite Panel:
1). Total Thickness: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm
2). Aluminum foil thickness: 0.15mm, 0.21mm, 0.3mm, 0.4mm, 0.5mm
3). Widths:
Standard width: 1220mm
Maximum width: 1600mm
4) Lengths: Standard length: 2440mm
5) Standard size: 1220 * 2440mm; Special size is available upon request;
6) Surface Coating: PVDF, Polyester coating
2. Fixing System:
Smartfix ACP/Honeycomb Fixing System. German awarded facade fixing system
3. Raw materials of Aluminum Composite Panel:
1)USA PPG and Sweden Berger fluorocarbon coating;
2)High quality aluminum alloy foil of AA3003 and AA5005;
3)American DuPont or Japanese MITSUBISHI Macromolecule sticking film;
4)Core material: Fireproof polyethylene or normal polyethylene (PE);
4. Color: Silver, bright silver, metallic champagne, champagne, copper, ivory, pearl white, pink, metallic grey, violet, ocean blue, jewelry blue, coffee, orange, green, Indian red, stone pattern, crisscross silver, woven + silver, lambency silver, natural woven stainless steel, zebra pattern silver, hammer stamp, etc...
(Other special colors are also available)
5. MOQ: 300square meters for each color.
6. Package: Wooden crate
7. Delivery terms: FOB Guangzhou (Canton)
8. Delivery date: Within 15 days after receiving the 30% down payment;
9. Payment: T/T with 30% deposit of total amount and 70% balance by T/T before shipping, L/C at sight
10. Certificates: CE, SGS, and TUV ISO: 9001: 2000
11. Product features of Aluminum Composite Panel
1) Excellent weather resistance and fire resistance;
2) Excellent durability and good torsion strength;
3) Lightweight, rigid and superior surface flatness;
4) Good impact-resistance and ultra strong peeling strength;
5) Good workability, simple installation, easy processing and maintenance;
6) Environmental protection.
12. Application:
Curtain Wall decoration, advertising board, signboards, like commercial centre, offices, banks, cladding, facades, roofs, ceilings, bathrooms, kitchen cabinets and balconies, partitions, furniture, canopies, tunnels, subway interiors, telephone booths, column covers or renovations, Display platforms, yachts, industrial usage etc.
1. Dimensions of Aluminum Composite Panel:
| Total Thickness: | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm |
| Aluminum foil thickness: | 0.15mm, 0.21mm, 0.3mm, 0.4mm, 0.5mm |
| Widths: | Standard width: 1220mm
Maximum width: 1600mm |
| Lengths: | Standard length: 2440mm |
| Standard size: | 1220 * 2440mm; Special size is available upon request |
| Surface Coating: | PVDF, Polyester coating |
2. Fixing System:
Smartfix ACP/Honeycomb Fixing System. German awarded facade fixing system
3. Raw materials of Aluminum Composite Panel:
1)USA PPG and Sweden Berger fluorocarbon coating;
2)High quality aluminum alloy foil of AA3003 and AA5005;
3)American DuPont or Japanese MITSUBISHI Macromolecule sticking film;
4)Core material: Fireproof polyethylene or normal polyethylene (PE);
4. Color: Silver, bright silver, metallic champagne, champagne, copper, ivory, pearl white, pink, metallic grey, violet, ocean blue, jewelry blue, coffee, orange, green, Indian red, stone pattern, crisscross silver, woven + silver, lambency silver, natural woven stainless steel, zebra pattern silver, hammer stamp, etc...
(Other special colors are also available)
5. MOQ: 300square meters for each color.
6. Package: Wooden crate
7. Delivery terms: FOB Guangzhou (Canton)
8. Delivery date: Within 15 days after receiving the 30% down payment;
9. Payment: T/T with 30% deposit of total amount and 70% balance by T/T before shipping, L/C at sight
10. Certificates: CE, SGS, and TUV ISO: 9001: 2000
11. Product features of Aluminum Composite Panel
1) Excellent weather resistance and fire resistance;
2) Excellent durability and good torsion strength;
3) Lightweight, rigid and superior surface flatness;
4) Good impact-resistance and ultra strong peeling strength;
5) Good workability, simple installation, easy processing and maintenance;
6) Environmental protection.
12. Application:
Curtain Wall decoration, advertising board, signboards, like commercial centre, offices, banks, cladding, facades, roofs, ceilings, bathrooms, kitchen cabinets and balconies, partitions, furniture, canopies, tunnels, subway interiors, telephone booths, column covers or renovations, Display platforms, yachts, industrial usage etc.
Aluminium Composite Panel
1. Dimensions
Width:1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm
Length :2440mm, 3200mm,4000mm 5000mm 6000mm,or customized
Thickness : 2mm, 3mm, 4mm, 5mm, 6mm
Thickness of ALU-layer : 0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm
Inner Core : Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof material
Color : Solid color, metallic color, brush color, mirror, marble, wooden color, glossy
Surface : PE coating , PVDF coating, NANO, Brush surface, mirror surface
Thickness of film :0.07mm,0.09mm
FCL and LCL :1220*2440*4mm 1500 sheets in 20 feet container; wooden pallet package in Less Container Loading
Non-standard sizes and special colors are available, according to customers' requests
2. Standard: according to GB/T 17748-2008 standard.
3. Basic Material
| front side | aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
roasting painting |
| Core material | nontoxic polyethylene, PE, FR, LDPE |
| Back side | aluminum alloy sheet coated with polyester resin painting(PE) |
4. Characters of bathroom wall covering panels
| Super peeling strength | Excellent surface flatness and smoothness |
| Superior weather, corrosion, pollutant resistance | Even coating, various colors |
| Fireproof, excellent heat and sound insulation | Superior impact resistance |
| Lightweight and easy to process | Easy to maintain, self-clean
|
ShenZhen XinYu Engineering Co., Ltd is a comprehensive enterprise with scientific research, development, manufacture, and sale service.XinYy is leading manufacturer of Aluminum panels, Aluminum composite panels, Aluminum honeycomb panels, Aluminum Ceilings and hardware for curtain wall systems in China.
As ISO9001:2008 certified company, XinYu is specializing in design, research and development, manufacturing and selling of the Aluminum paneling materials for curtain walls.With the famous brand XinYu and advanced fabrication facilities as well as professional team, XinYu is on the way of fast growing and expanding.
Our company is professional in selling and manufacturing the aluminium composite panel(ACP), which conforming to the standard of International Quality System ISO9001:2000 & GB/T 24001-1996 IDT ISO1400:1996 Environments Manager System, GB/T 28001-2001 Occupational Health Safety Management System.
According to the clients' requirment all over the world, we develop the production line for the aluminum anodizing plate, the aluminum plate, the aluminum honeycomb plate and the aluminum ceilling.We supply the best quality and the competitive price.
Backed by our determination to serve you better, we are able to continuously improve our products & services to meet your needs.While placing great emphasis in research and development, we are consistently improving to create more value to our customers.
