Aluminum Door Window Router Machine Lock Hole Copy Router Machine

Aluminum Door Window Router Machine Lock Hole Copy Router Machine
Supplier: Jinan Parker Machinery Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,EXW
contact supplier

Product Specifications

Prod Model: ACH130
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function: Aluminum Door Window Router Machine Lock Hole Copy

Product Description

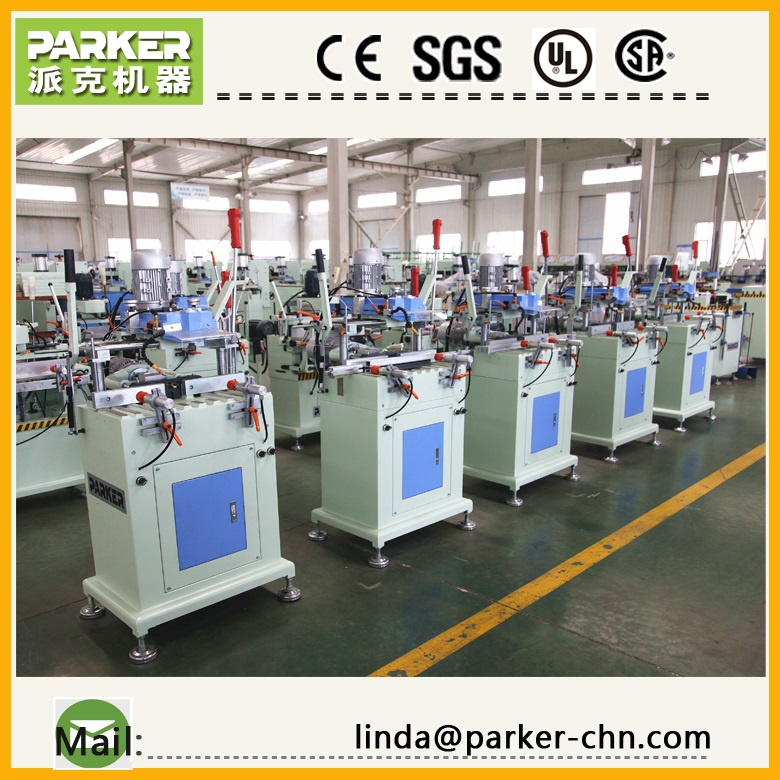

                             aluminum door window router machine lock hole copy router machine


Model: ACH130

Features:

1. For processing different kinds of holes, grooves and water slots and so on.

2. Top sale model for high efficiency, low fault rate and easy operation.

3. Clamping devices keep fixing profiles when power is off suddenly, to protect workers and machines well.

4. Copying plate is changed easily.

5. Compact structure and small volume.

Parameters:
Model:ACH-130
Power:380V/50HZ/4.5Kw
Rotary speed:18000rpm/min
Air pressure:0.5-0.8MPa
Air consumption:20L/mins
Diameter of cutter:Φ8mm
Processing section(WxH):200x150mm
Copying dimension:370x125mm
Surface roughness:Ra12.5μm
Overall dimension: About 2180x1000x1700mm
Weight: About 380Kg



===========================

PARKER MACHINERY CO.,LTD

Contact: Linda

Parker Machinery Co., Ltd., China has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.

Parker machines sell well, become well-known and outstanding at the national fairs of door-window equipment, owing to:

Using of European standards, and taking in the view and pithy of the design.

Purchasing main parts internationally.

Selling machines to other countries, such as Iran, North America, South Africa, Russia, Korea, Middle East, and so on.

Carrying our "Handover key project" ahead of other in this area.

Combining the manufacture with the development of design software of door-window.

Owing more than twenty sales and service agencies.

To meet the great need of development of hi-grade door-window, combining with almost ten years of experience, we introduced advanced technology from other countries, and developed five types, more than forty specifications of door-window and curtain wall equipment. Door-window factories needn't import any hi-grade machine from other countries any more.

Let's share science and technology of the world!
