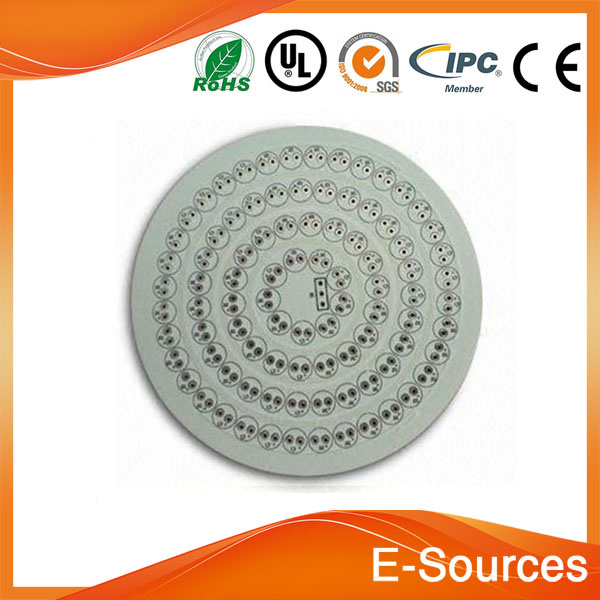

Aluminum LED PCB Circuit Boards, LED SMD PCB Board

Product Specifications

Prod Model:	p31
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Guangdong China (Mainland)
Surface Treatmen:	Lead Free HASL
Min. Hole Size:	0.1mm
Min. Line Width:	0.075mm
Min. Line Spacing:	0.075mm
Layers:	Single-Layer
Certification:	SGS
Mode Of Production:	DIP
Metal Coating:	Tin
Customized:	Customized
Condition:	New
Base Material:	Aluminum

Product Description

E-SOURCES Three Advantages

1) Integrate Industry chain, we have 3 our own and holding companies for manufacturing components and PCBs. We can do LED PCB&PCBA,PCB, PCBA, ODM, OEM and EMS one stop service, can ensure high quality and low price.

2) Professional, we have imported and advanced WORLD FAMOUS BRAND producing and inspection equipment. We have 10 experienced engineers to keep our process and technology support, we have our own corporation culture and management system ISO9001:2008 to courage our stuffs high efficiency.

3) Excellent Service, our experienced engineers and advanced equipments can control the producing, inspection and after service to satisfy our customers need, and our dedicate sales team can provide 24 hours service.

Factory  Manufacture  Capability
NO	ITEM	Techinical    capabilities
1	Materials	Aluminum  FR-4
2	layers	1-36  layers
3	Min. core  material	5mil(excluding  copper)
4	Prepreg  type	7628  2116  1080  3313
5	Max. board  size	520*720mm
6	Copper  thickness	min. base  copper  1/3  OZ
		max. finished  copper6OZ
7	Min. board  thickness	2-  layer  10mil
		4-  layer  16mil
		6-layer    24mil
		8-layer    32mil
		10-layer  40mil
8	Max. board  thickness	236mil(finished  board  thickness)
9	Min. line  width/space	3mil/3mil  HOZ  copper  base(inner  layer)
10	Min. hole  size	8mil
11	PTH  wall  thickness	≥ 1mil
12	Hole  dia. tolerance	± 3mil
13	Hole  dia. tolerance	± 2mil
14	Countersink  hole	Min. depth(D)6mil; The  Depth  of  tolerance± 6mil
16	Min. solder  mask  bridge	3.2mil(HOZ  base  copper,   green)
17	Outline  tolerance	± 4mil
18	Twist  &   Bow	≤ 0.75%
19	Peelable  mask  thickness	≥ 8mil  1  printing
20	Insulation  Resistance	> 1012Ω   Normal
21	Through    hole	< 300Ω   Normal
	resistance
22	Current  breakdown	10A
23	Peel  strength	1.4N/mm
24	S/M  abrasion	> 6H
25	Thermal  stress	28  degrees  20Sec
26	Test  Voltage	20-300V
27	Min. blind/burried  via	8mil
28	Surface  finish	HAL  ENIG  IMAG  IMSN  OSP  HAL+G/F  ENIG+G/F
29	Impedance  control	Single  ended  impedance  50Ω /70Ω ± 10%  Normal
		Differential  impedance  90Ω /100Ω ± 10%  Normal
30	Max. aspect  ratio	12:01

FAQ
Q1: What is your products range?
We provide PCBA for IT, communication, tablet PCs, smart cards, financial equipments, auto electronics, GPS modules. We can do OEM,ODM.

Q2:Do you provide material sourcing service?
We have our own industry chain. Our material sources are stable, high quality and low prices.

Q3:Do you provide complete unit assembly service?
Yes, include plastics, metal box, Coil, cable inside etc

Q4:What is your payment term ?
T/T  or L/C at sight.and  It ' s negotiable

Q5:What is you trade term?
FOB Guangzhou/Shenzhen port.

Q7:Do your pay for import taxes and duty?
No, they are not included. Clients should pay for them.

Q8:How long do you need to make samples? And how about the lead time?
About  15-20 days for samples, and about  45 days bulk production after get your  payment

Q9: How do you make sure product quality?
We have 3D SPI, AOI,and we do ICT, Electronic test, Visual inspection, Functional test.
