Product Specifications
Prod Model: |
DCT-628/LB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Plate Size: |
120*120mm |
Box Size: |
100*100*55mm |
Installation Size: |
105*105mm |
Shape: |
Square |
Socket: |
Universal Socket |
Voltage: |
125V |
Current: |
15A |
Open Type: |
Fast Pop up or Slow Pop up |
Available Moulds: |
118 Type, 120 Type, 128 Type, 45 Type, etc. |
Grounding: |
Standard Grounding |
Application: |
Residential/General-Purpose |
Hole-Digit: |
6 Digits |
Installation: |
Floor |
IP Rating: |
IP44 |
Color: |
Grey |
Certification: |
ISO: 9001 |
Customized: |
Customized |
Condition: |
New |
Housing Material: |
Aluminum |
Product Description
Brass finish pop up floor box kit includes the box, cover, and 15A UL listed Decora receptacle.The unit pops up when in use and otherwise is flush with the floor.It also comes in a stainless steel finish, or Aluminum finish.DCT-628/LB

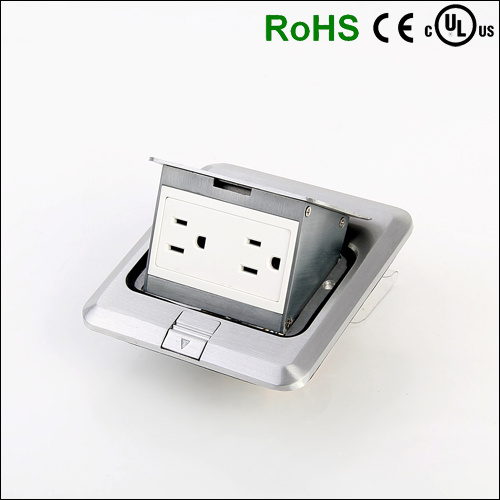

Aluminum Pop up Type IP44 waterproof Floor socket with 15A UL receptacle Introduction
Features:
- Pops out from the floor to provide a convenient power outlet.
- When do not needed, can be stored flush with the floor to offer no troublesome hindrance.
- Rubber seal keeps out water and floor wax.
- Dust & Water protected gasket (IP44).
- Supplied with Flush metal square box with raised & adjustable adapter (100×100×55mm)
- Suits 3 modules: TV, Telephone, Computer & other mechanisms (118, 120, 45, F types).
Application:
Suitable for offices, shops, Department stores, Bank IT & Communication area and homes as floor outlets.
SLOW POP-UP TYPE
Damper device
- Slow Up "soft & silent" with protected force-down locking.
- Smooth "hair-line" finish & scratch resistance cover.
- The opening speed of the floor socket is 20 times slower than regular products. Status of opening: slower and even speed.
- The opening speed can be adjustable for your own requirements.
Material | Brass alloy & Al. alloy |
Surface color | Golden & Silver |
Surface treatment | Satin / sanblasting / spray painting |
Open type | Fast Pop-up & Slow Pop-up |
Shape | Square type |
Panel diameter | 120*120mm |
Steel Box Size | 100*100*55mm |
Box material/ thickness | Ga steel / 1.2mm |
Cutout size | 105*105mm |
Steel base box | Supply complete with temporary plastic cover plate for box |
Bracket Material | Zinc alloy & Al. alloy |
Gasket | IP44 |
Assembling module | 120 type, 118 type, 128 type, 45 type, etc. |
Module capacity | 3 modules |
OEM | YES MOQ-200PCS |
Part Number | Panel Material | Open Type |
DCT-628/GBD | Brass alloy | Slow Pop-up |
DCT-628/GB | Brass alloy | Fast Pop-up |
DCT-628/LBD | Al. alloy | Slow Pop-up |
DCT-628/LB | Al. alloy | Fast Pop-up |
DCT-628/YBPD | Nickel Brass | Slow Pop-up |
DCT-628/YBP | Nickel Brass | Fast Pop-up |
FAQ:
What is Residential and Commercial area?
Residential consists of Apartment Buildings, Condominiums, Townhouses (two or more houses that are attached), or single family homes. Residential floor sockets (boxes) are designed to match and look good in a family's home decoration, which will help to make the room decoration looks very elegant.
What is Commercial area?
Commercial area refers to Air port, Office Buildings, Schools, Churches, High rises, Exercise Gyms, Department stores etc.
Why the Residential area need the floor socket (boxes)?
1. There are often open staircases in our homes where there is not wall on the second floor of the home. The open railing on the top of the stairs does not have a wall so a floor box is required.
2. There are a lot of scenic places in our country where a home owner has glass walls to get the best view possible (mountains, lakes, ponds, etc). You can not use an outlet in glass so it is required on the floor.
3. There are a lot of people with large homes and large rooms where there is no wall close enough for a wall outlet.
4. People like to have a floor box in their living room where they would like to have a lamp and don't want a cord coming to the lamp from the wall. They put the floor box where they would like the lamp to be.
5. Entertainment systems in many countries' houses are very common. Some people like to have a floor socket (box) beneath their television system and like to have all of the hook ups in the floor box like phone, power, cable, cat5, etc for all of the entertainment purposes.
