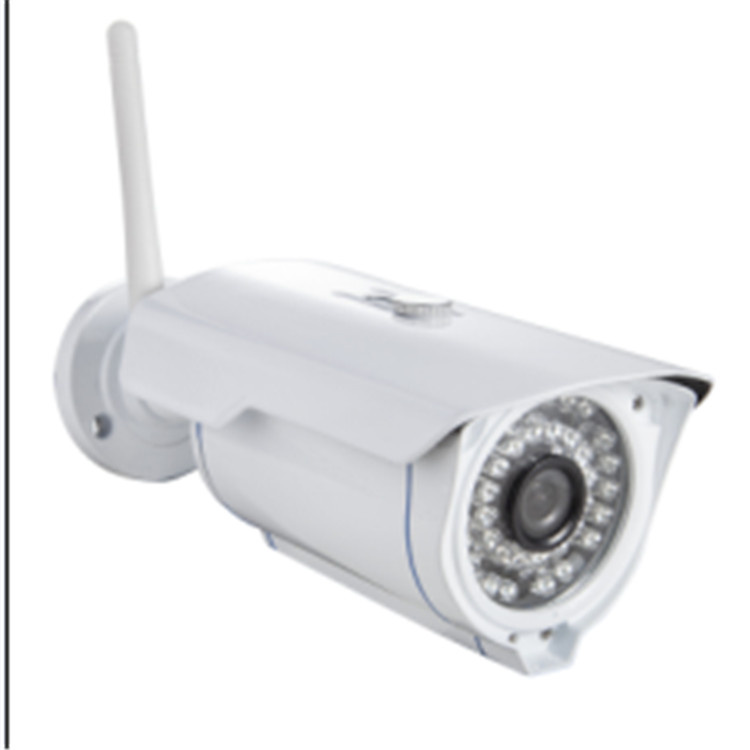

| Model No.: ALY007 |
| System | Main Processor | Hisilicon processor,built-in ARM9 and a high-speed video co-processor. |
| Operating system | Embedded Linux OS |
| Image Sensor | Sensor | High Definitioin Color CMOS Sensor |
| Display Resolution | 1280*720 (1.0 Megapixel) |
| Min.Illuminatioin | 0.1 Lux / F1.2 (With IR Illuminator) |
| lens | Lens Type | Glass Lens |
| Lens Parameter | Focal Length:3.6 mm; Aperture:F 2.4 |
| Angle of View | 65° |
| Video | Image Compression | H.264. |
| Image Frame Rate | 30fps maxmium, downward adjustable |
| Resolution | 720P(1280 x 720), VGA(640 x 360), QVGA(320 x 180) |
| Image Adjustment | Automatic |
| Infrared Mode | Automatic |
| Night Visibility | 36pcs IR-LEDs, night vision range up to 15 metres |
| Filter Switch(IR-Cut) | Built-in IR Cut, no color deviation indoor or outdoor. |
| Record | TF Card Record | Support Built-in TF card, up to 128GB.( only support FAT32 file system), Note: the standard version didn't include TF card, if you need, please ask the manufacturer add it for you. |
| Record Mode | Alarm Record; Motion Detection Alarm Record; Timing video; Manual Record. |
| Record Standard | VGA @ 25 fps |
| Playback | Support remote playback. |
| Network | Ethernet | RJ-45 Ethernet |
| Wireless | Standard IEEE 802.11 b/g/n, Security support :WEP, WPA, WPA2 Encryption. |
| Online Visitor | Online Visitor LAN support 10 people, WAN support 5 people. |
| Onvif | Support Onvif Protocol, Support NVR (above Onvif version 2.4.2) |
| Alarm | Alarm | Supports Motion detection Alarm, Phone push alarm, Email alarm. |
| Others | Product Type | Metal Gun type / Waterproof outdoor use |
| DC Power | DC12V/1A.. |
| Working Temperature | 0~55 °C |
| Working Humidity | 10%- 90% RH |
| Size | Item size: 165mmx83mmx72mm (LxWxH) |
| Packaging size:182mmx110mmx149mm(LxWxH) |
| Weight | N.W.:500g G.W.: 750g (Note:Actual Weight Final) |
| Accessories | Adaptor, User Manual, Bracket,Screw. |
System
Required | SmartPhone & TablePC | Support iOS and Android system, Provide free App "APCam" |
| PC | Only support remote monitor on Internet Explorer(IE) browser. |
| Certification | CE,FCC,RoHS |
| Warranty | Limited 2-Year Warranty |
"Features:
1: Plug &Play (P2P): Plug and Play, No need DDNS, No need Port Forwarding.
2: Easy Operation: Network connection no need PC. You can easily realize all the function via the APP.
3: Onvif: Support Onvif Protocol, Support NVR (above Onvif version 2.4.2)
4: TF Card:Support Built-in TF card, up to 128GB.( only support FAT32 file system), Support remote playback. (Note: 32GB TF card can be recorded up to 15 days.)
5: Alarm: Support Motion detection alarm, Phone push alarm,Email alarm."
