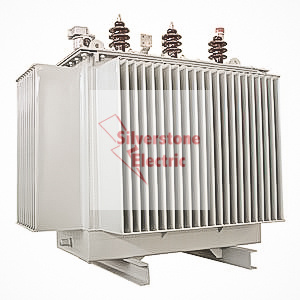

Amorphous Alloy Distribution Transformer

Product Specifications

Prod Model:	SBH15-10/30-1600KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Application:	Audio

Product Description

Amorphous alloy transformer
Its core is amorphous alloy. The amorphous alloy is with relatively high magnet induction intensity, low coercive force, low loss, low stimulated magnetic current, and stability with temperature changes. Amorphous alloy transformer, comparing to the silicon steel S9 series transformers, the empty loading loss decreases 78-80%, empty loading current decreases 50%. Its energy saving effect is very visible, it is a energy saving, environmental protection and high efficient transformer.

Main functions and characters:
Core is with three phases, four frames, and 5 columns.
Use Dyn11 to connect other parts as vector, reduce the influences by network wave, improve the power supply.
Oil box is sealed, free from maintenance. Box is sealed, free from maintenance.
Empty loading loss is only 20% of S9 type transformers, empty loading current is only 50% of S9 transformer.

Our Transformer Product Range
S10 S11 S13 oil type transformer: 50-31500KVA, 6-33KV, 50/60HZ, off load tape changer
SZ10 SZ11 oil type transformer: 50-31500KVA, 6-33KV, 50/60HZ, on load tape changer
SCB9, SCB11 dry type transformer: F grade insulation, 50-3150KVA, 6-33KV, 50/60HZ
SCBH15 11KV amorphous alloy dry type transformer: F grade insulation
SGB10 SGB11 11KV dry type transformer: H grade insulation
SBH15 Oil type amorphous alloy transformer 11KV Level
S13-M 1full sealed oil immersed power transformer
Dry type reactor
S(B)H15-16 Amorphous Transformer
BKSC(G)Dry-type shunt reactor
QKSC Dry Startup reactor
Smoothing reactors

KD-LK-type low-pressure filter reactor
Cast resin dry type earthing transformer
Dry type rectifier transformer
Rectifier transformer
Furnace transformer
Note: We can design and manufacture special transformer as customers' requirements.
Ordering Instruction: 1. Product model; 2. Rated capacity; 3. Voltage range; 4. Regulation range; 5. Frequency; 6. Connection symbol; 7. Technical specs for customized transformer.
