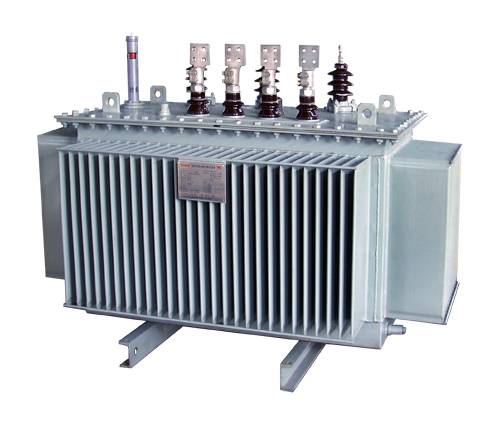

Amorphous Alloy Power Transformer

Product Specifications

Product Description

The amorphous alloy oil immersed type transformers adopted amorphous alloy to construct the transformer cores, able to save no load loss about 70% or more compared with silicon steel, no-load current decrease about 80%, this type is most ideal distribution transformer to achieve best energy saving result.

Features:

-          Isotropic soft magnetic material

-          Low unit iron loss

-          Thin sheet, about 0.03mm, low filling factor

-          High resistance rate, low eddy current loss

-          Production technology simplified, energy saving, no pollution, but easily fragile

-          Sensitive to mechanical stress, influence on the performance.

-          Cost some higher.

Our amorphous transformers had overcome above problem, successfully passed strict type test (including S.C. test) from Shenyang Transformer Test Lab, a state lab with world famous institutes.

Generally the normal working condition required: -25ºC ~ 45ºC, altitude not more than 1000m, if some necessary parts changed, the transformer can run in more ultimate conditions: i.e. -45ºC~50ºC, or 2000m altitude and etc.

Applicable standard: IEC76

Basic Parameters

Number of phases:                              1 or 3

Rated primary voltage:                     3~11KV

         Highest voltage:                                 3.6 ~12KV

Rated secondary voltage:                220V~240V, 380V~430V, or 690V

         Rated capacity of distribution type:       15KVA ~ 3150KVA

         No load loss, Load loss:                      As per user requirement or our design.

         Voltage regulation:                             off load tap changer: +5%, or 2x2.5%, or on-load tap changer

         Cooling methods:                                ONAN

         Vector group:                                        Dyn11, Yyn0

Normal creepage:                               > 25mm/KV
