Product Specifications
| Prod Model: |
NY-BD-RE-01 |
| Markets: |
North America,South America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Commodity: |
Amplifier Circuit Board |
| Layer Count: |
2 Layers |
| Base Material Details: |
Fr-4 (Tg135-140) |
| Board Thickness: |
1.6mm |
| Finished Copper Thickness/Weight: |
1oz |
| Laminate Size/Board Size: |
158.24mm*150mm/Panel |
| Soldermask: |
Blue |
| Silkscreen/Legend: |
Bottome White |
| Surface Finishing/Treatment: |
Plated Gold |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

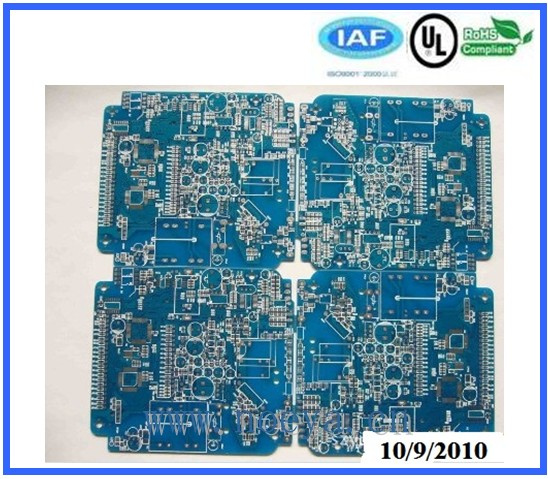

Car amplifier PCB board:
Technical details:
1). Layer count: 2 layers
2). Material details: 1.6mmFR-4(TG135-140)., 1oz finished copper weight
Min. Board thickness:
0.4mm for 2 layers and 4 layers
0.8mm for 6 layers
3). Plated gold finishing
4). Min line width/spacing: 0.22mm
5). Min, Hole size(aperture).: 0.23mm, hole tolerance: +/-0.05mm
Min. Solder bridge: 0.08mm
Dimension tolerance: +/-0.1mm
6). Outline/profile/contour: CNC routing, milling +v-cutting
Drills: CNC
7). Lead time: 5 days for prototypes, 7-9 days for mass production
8). Certification: RoHS&UL
9). Application: Car amplifier
10). Board size details and panelized details:
Size: 158.24mm*150mm/panel
Panelized details: Each panel with 4PCS
Breaking off strips: NONE
11). Circuit characteristic: Complicated
Advantages: 1). Best quality and attractive price.
2). Best on time shipping
3). With E-test
4). Customer service
5). Instant quote
6). No minimum lot Requirements (Prototypes and small qty are both acceptable for us).
7). Ultra modern manufacturing facility
Main markets:
Iran, USA, UK
Hot-selling time: Feb &Mar. 2012
Capacity: 8, 000sqm/month for 6 layers PCB; 10, 000sqm/month for 4 layers PCB; 12, 000sqm/month for 2 layers PCB; 15, 000sqm/month for 1 layer PCB.
|
layer |
|
1-6 |
|
processing area of the largest |
|
600*600MM |
|
Min. board thickness |
|
0.4mm for 2 layers |
|
|
|
0.40 for 4 layers |
|
|
|
0.80mm for 6 layers |
|
|
|
1.00mm for 8 layers |
|
|
|
1.20mm for 10 layers |
|
Min. line width |
|
0.10mm |
|
Min. spacing |
|
0.10mm |
|
Min. aperture |
|
0.20mm |
|
Hole wall copper thickness |
|
0.020mm |
|
Metal tolerance of sperture |
|
+-0.05mm |
|
tolerance of no-metallic aperture |
|
+-0.025MM |
|
Hole tolerance |
|
=+-0.05MM |
|
Dimension tolerance |
|
+-0.1mm |
|
Min. solder bridge |
|
0.08mm |
|
|
|
|
|
insulation resistance |
|
1E+12ou(normal) |
|
thickness aperture ratio |
|
10: 01 |
|
thermal shock |
|
288 celsius degree(10seconds/37imes) |
|
anti-electric strength |
|
more than 1.3KV/MM |
|
Distortion and bending |
|
less than or equo to0.7% |
|
anti-peel strength |
|
1.4N/MM |
|
Solder dose hardness |
|
more than or equo to6H |
|
Flame retardant |
|
94V-0 |
|
Impedance control |
|
+-5% |
|
Bare PCB Delivery Time |
|
Layer |
Prototype |
Mass production (Above 30(Square) |
|
1L |
Quick Sample: 12Hours Usual time: 1-2days |
5-7days |
|
2L |
Quick Sample: 24Hours Usual time: 3-4days |
7-9days |
|
4L |
Quick Sample: 48Hours Usual time: 5-7days |
9-10days |
|
6L |
Quick Sample: 72Hours Usual time: 6-8days |
10-12days |
Shenzhen Noeya Technology Co., Ltd. is a professional high-tech PCB manufacturer, which was built in 2003. Over years, our scale has been expanding: More than 300 workers, more than 1, 500m² For day-output, more than 500, 000m² For year-output.
Our main products mainly applied FR-4(TG135-170), CEM-1 and FR-1(94V0). The finished PCB boards including Single and double layer PCB, 4 layers PCB, 6 layer and 8 layer multilayer PCB, High Frequency PCB(HFPCB), HDI PCB, High density PCB with blind and buried-vias. Especially we are strong in single layer, double layer, 4 layers and 6 layers PCB board, which are widely applied in LED lightings, computers, Telecommunications, Auto, digital, home appliance and consumer electronics. Selling well both at home and abroad.
We've got a contingent of producing and sales team. With advanced processed devices and checking and testing technology. We are cooperating with much domestic and abroad branded business, like Gree, FOSS, BYD Auto and Gospell etc. We abide by the national laws and regulations, pay emphasis on environment and environmental production. We have already got ISO9001: 2000. Our products quality can meet IPC-A-600F \IPC-D-600G, MIL-STD-105D LEVEL II \and UL STANDARD. With strictly quality checking and strictly following-up the goods, supply exact lead time and quality products.
We will take a series of special training to improve our staff's professional skills and service quality and speed so that our management system can be enter into normalization and informationization.
