Product Specifications
| Prod Model: |
XK-DSP1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

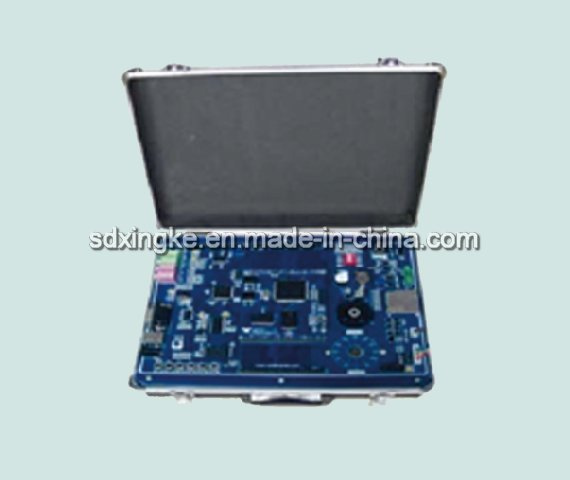

1. It likes a suitcase and is easy to carry.
2. This system uses modular, bus type and open design thought. "
1. Product structure:
The experiment box structure, easy to carry.
2. Main parameters:
Size: 500 (L) x 340 (W) x 165 (H);
The power supply: Single-phase AC 220V± 5% 50Hz ≤ 45VA.
3. Main composition:
Fixed-point TMS320F2812, extension 256 K * 16 SRAM, 512 K * 16 FLASH, 256 M * 8 bits of nand FLASH memory, integration Altera company CPLD chip EPM3128ATC100 and provide download interface, 8 segment digital tube interface, LED light diode, independent buttons, a buzzer and reset circuit, RS-232 interface, CAN BUS 2.0 interface, 485 interface, IIC interface, RTC interface, AD input interface, other AD interface extended out, DA output interface, audio input/output interface, 12864 graphics LCD interface, 1602 characters LCD interface, a DC motor control interface (motor fixed in the experiment box), a stepping motor control interface (motor fixed in the experiment box), 6 road PWM output interface, SD card interface, USB interface, from 100 M network interface.
4. Main functions:
CSS software application experiment, DSP experiment, algorithm experiment
5. Annex:
Experimental download line, experimental jump line, commonly used tools, software disc, the product specification.
Shandong Xingke was established in 1999. Registered capital of our company was 12 million Chinese Yuan, and capital asset was 50 million Yuan. We have more than 300 employees till today, and more than 85% of them are specialized technicians. We have more than 30 senior & middle administrative staffs, and more than 80 senior & middle research & development engineers.
Product of our company covers many fields of educational equipment (such as electro-technology, electronic technology, electrical automatization, automation of electric power systems, pneumatic & hydraulics, mechatronics, intelligent buildings, numerically controlled lathes, etc. ). We possess 28 series, more than 280 kinds of products; And we own scores of patented products.
Our company covers more than 1, 200 square meters for research & development office. We also have a powerful R&D management team. We have built technology center, research laboratory, industrial park, nationwide marketing-network and customer service center.
We are expecting communication, cooperation and win-win business with you. Welcome to contact us when assistance is needed.
