Product Specifications
| Prod Model: |
RM1E48V100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 75 G: |
17.5 X 81 X 67.2 Mm |
| Theory: |
Digital |
| Usage: |
Industrial |
| Type: |
Mini |
| Carry Base: |
Decimal Counter |
| Function: |
Delay on Operate Timer |
| Carry Mode: |
Multifunction Timers |

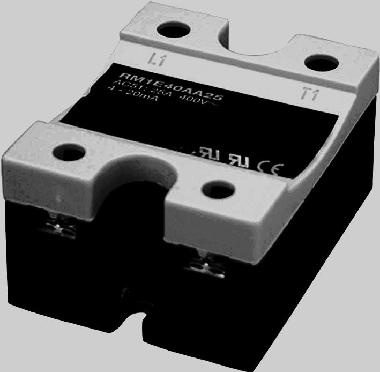

Product Description
Introduction
The analog switching relay works in accordance with the phase angle control principle, the output switching point in the AC sine wave depends
On the control input which can be either 4-20mA or 0-10VDC. 4 mA or 0 VDC correspond to zero output power whilst 20 mA or 10VDC correspond to full
Output power (near linear power response). The relay switches off every time the output current crosses zero, and switches ON in accordance with the applied control input.
Property
AC Solid State Relay
Analog switching (phase-angle control) for resistive and slightly inductive load applications
4 - 20mA or 0 -10V control input
Rated operational current: 25, 50 and 100 AACrms
Rated operational voltage: Up to 600 VACrms
Variable intensity LED-indication according to input current
Integral snubber network
Controlled directly by PLC or thermal temperature controller
Brain Electrical Co., Ltd is a specialized manufacturer and exporter of various monitoring relay, solid state relay, panel meter, proximity switchs and other other electrical products. We also will supply good service to all customers with honest cooperation attitude and try our best to develop the process of automation.
Our Brand: BRAIN
Product certifications: ISO9000, CCC, CE, UL, TUV.
What we offer:
1) Electric products: Various monitoring relay, AC contactors, solid state relays, earth-leakage protective breakers, motor controller, tools, meters, switches, fuses and other electrical accessories
2) Pneumatic elements: Cylinders, cylinder accessories, solenoid valves, PU tube
3) New Energy: Solar inverter, Solar Power system
4) Consulting service: We have successful experience in helping foreign suppliers source electrical and parts in China.
Philosophy: What can we do for you?
1) Excellent quality, reliable services and reasonable prices
2) Creating value for Customers
