Product Specifications
| Prod Model: |

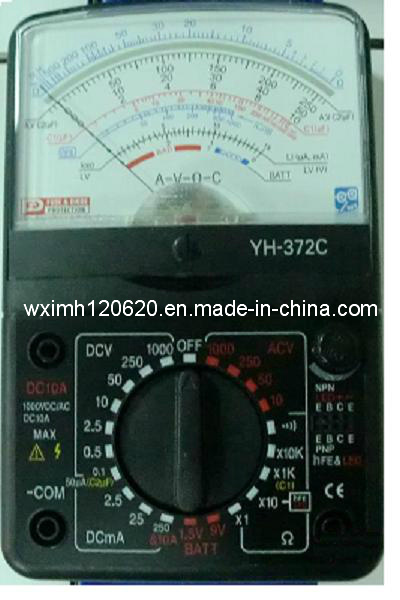

TP-372C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue |
| Display Mode: |
Indicator |
| Power Source: |
AC and DC |
| Theory: |
Electronic Meter |
| Installation: |
Desktop |
Product Description
1). Capacitance Test With Additional Tool Kit(CT-1)
100pF~0.025UF/2.5UF/25UF(± 3.0% F. S. ). 2000UF
2). Fully Safety Protection
3). High Input Impedance: DC 20 kΩ/V. AC 9 kΩ/V
4). Portable Case with back stand
5). AC Voltage Range (± 4.0% F. S. )
10/50/250/1000V
6). DC Voltage Range (± 3.0% F. S. )
0.1/0.5/2.5/25/250mA, 10A
7). DC Current Range(± 3.0% F. S. )
0.05/2.5/25/250mA, 10A
8). Resistance Ranges (± 4.0% of Arc. )
X1. X10. X100. X1K(C1). X10K(0.2~20MΩ)
9). Decibels Test: (-20~ +62dB)
10). Continuity Test With Buzzer
11). Battery Test: 1.5V. 9V
12). Leakage Current & Diode Test
13). Transistor & LED Test
14). Dimensions & Weight:
150*97*38mm & 310g approx
15). Power: 6F22 9V 1PC. AA size 1.5V 2PCS
Wuxi Imhoo Technology Factory is a specialized manufacture of va-rious electrotechnical meters and electric instruments.
Our Main products are different analog and digital multimeters and panel meters, battery tester and so on. The annual output reaches 800, 000 sets, which are used as equipments in communication, transmitter-receiver, transmitting and distribution electricity, power station, industrial jointing, electric cooker control, chariot and autom-atic control system.
Our products, manufactured accoding to ISO9001/2000(International Quality Ma-nagement System)and technical standard IEC 61010-1-2001(International Electronic Committee) and JB/T9283-1999, have a stable performance and reliable quality.
Our products have gained the quality license of CMC Measuring Apparatus for
Domestic sales as well as the quality license for exportation.
We will decelop further with steady steps all through, exploit and innovate
To serve our clients with excellent products and most-satisfied service.
Quality Policy: Exploit and innovate, keep improving, fine management and hi-ghquality service.
Quality Promise: Be accordance with ISO9001 and keep developing to meet theclient's requirement at present as well as in the future.
