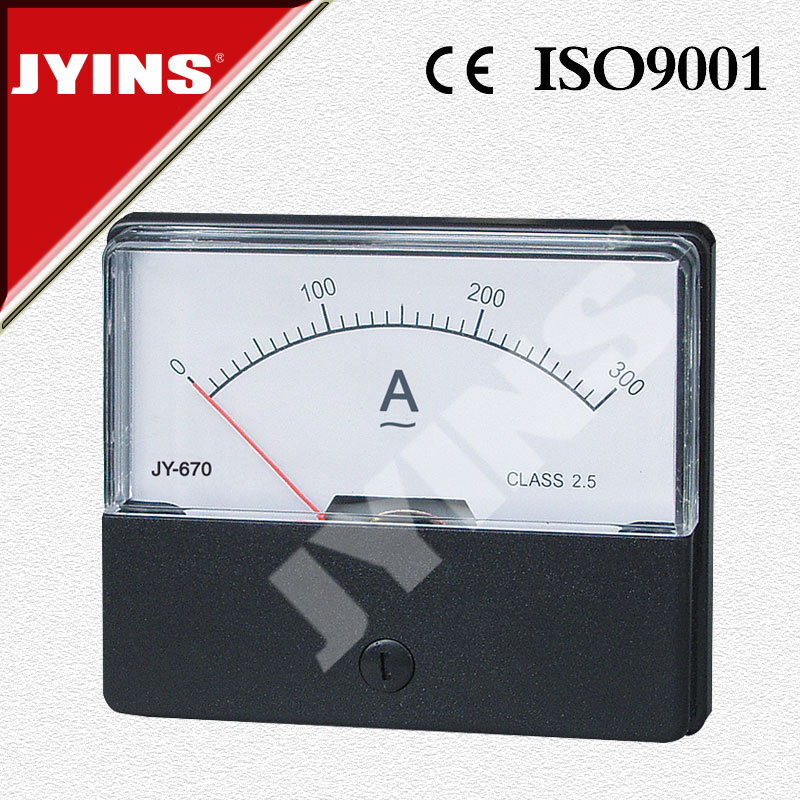

Analog Panel Ammeter / Meter (JY-670)
Product Specifications
| Prod Model: |
JY-670 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
18 Months |
| OEM: |
Accepted |
| Power Supply: |
According to Your Requirement |
| Frequency: |
0-60Hz |
| Operate Temperature: |
-10-40 |
| Display: |
Indicator |
| Application: |
Electronic Equipment |
| Installation: |
General Installation Meter |
| Theory: |
Electronic Meter |
| Kind: |
Thermocouple Type |
| Power Source: |
AC Meter |
Product Description
Analog Panel ammeter / Meter (JY-670)
Model: JY-670
Accuracy: Class 1.5
Specification: 0.1A 0.5A 1A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A
For 5A-10KA use external current transformer with secondary current 5A and 1A.
Notes: For 60A, 75A, 100A meters, when these meters directly connected to circuit, their accuracy is class 2.5.
For 20A-60A direct reading JY-48 meters, the accuracy is class 2.5.
Changeable scale: All scales with pringting technique.
The dial plate with different scale, which is at the same division and internal value, can be changeable.
But the accuracy is unchangeable
Specification: 30V 50V 75V 100V 120V 150V 200V 250V 450V 500V 600V
For 450-450KV, meters can use potential transformer with secondary voltage 100V.
Heat resistance: Case of non-combustible plastic material.
Fastening: By means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max. 43mm.
Heat resistance: Case of non-combustible plastic mateial.
|
The more technical data |
|
Name |
precision |
normal specification |
remark |
|
AC ammeter |
A |
2.5 |
0.5-50A |
can be diractly connected |
|
|
A |
2.5 |
10/5A-800/5A |
secondary current passed by current transformer |
|
|
KA |
2.5 |
1KA-10KA |
secondary current passed by current transformer |
|
AC voltmeter |
V |
2.5 |
10V-600V |
can be diractly connected |
|
|
KV |
2.5 |
1KV-35KV |
100V secondary voltage passed by voltage transformer |
|
DC ammeter |
µ A, mA |
2.5 |
50μ A-500μ A 1mA-500mA |
can be diractly connected |
|
|
A |
2.5 |
1A-15A |
can be diractly connected |
|
|
A |
2.5 |
15A-750A |
outer attached shunt 75mV 60mV 50mV |
|
|
KA |
2.5 |
1KA-3KA |
outer attached shunt 75mV 60mV 50mV |
|
DC voltmeter |
V |
2.5 |
3V-600V |
can be diractly connected |
|
|
KV |
2.5 |
1KV-3KV |
outer attached resistance value |
|
Hz meter |
Hz |
2.5 |
45-55HZ 55-65HZ36V. 100V
127V. 220V. 380V |
|
|
Overall dimension: 60x70mm |
opening overall: 48x48mm |
Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.
We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...
"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.
We sincerely welcome our friends at home and aboard to guide us and then develop together.
