Product Specifications
| Prod Model: |
59L1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
18 Months |
| OEM, ODM: |
Accepted |
| Power Supply: |
According to Your Requirement |
Product Description

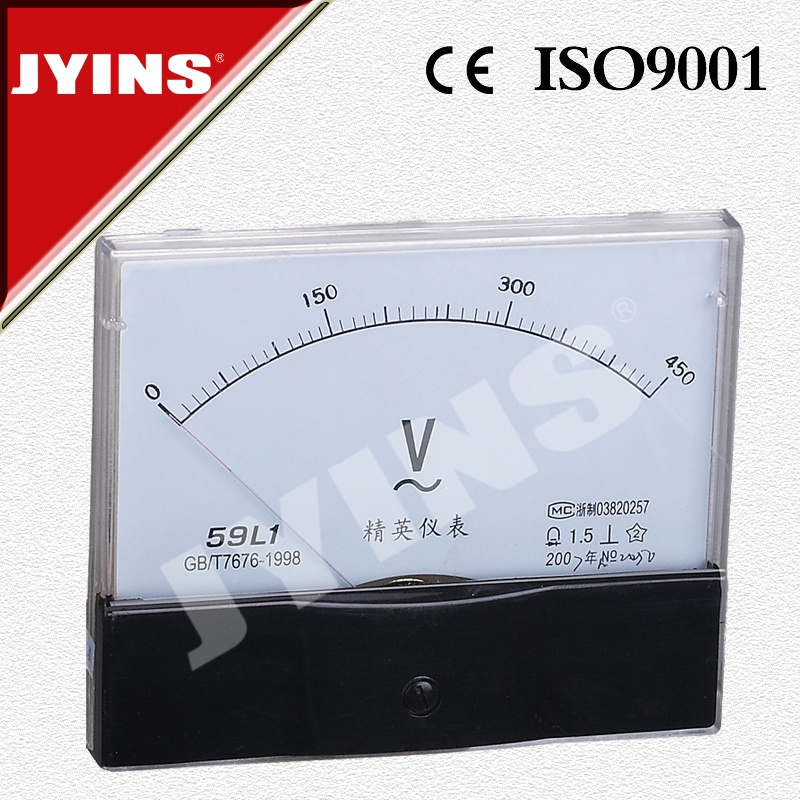

Analog Panel Meter (59L1)
Uses and applications:
This series of meters is a direct imitation of power measurement display instruments, measuring DC current and voltage, AC current and voltage, frequency, power factor, phase sequence, power, synchronization instructions and other non-power measurements. It has been widely used in a variety of AC and DC transmission and distribution systems, power control panels and other electrical devices, in the industries of maritime shipping, rail transport, chemical flameproof, low voltage equipment, construction equipment, generators, machinery equipment, etc. Being able to make electrical measurement and non-power measurement, it is a high-end instrument applied in general environmental conditions.
Model: 59L1 Panel meter Series
Size: Panel Dimension: 118*98mm Hole cutout dimension: 90*70mm
Features:
Current: 59L1-A 59C2-A Power: 59L1-KW Mvar
Voltage: 59L1-V 59C2-V Power factor: 59L1-cos
Frequency: 59L1Hz Synchronization meter: 59L1-S
Carton size: 54.5*34*37cm Quantity: 60pieces/box¢
|
Name |
Common scale(measure range) |
NOTE |
|
Ac ammeter |
A |
0.5-50A*1T1 10A-200A |
Directly switch on |
|
10/5A-800/5A |
Switch on second current through current transformer |
|
KA |
1KA-10KA |
|
AC voltmeter |
V |
10V-600V |
Directly switch on |
|
KV |
1KV-35KV |
100V Switch on second current through current transformer s |
|
DC ammeter |
Ua, mA |
50ua-500uA 1Ma-500mA |
Directly switch on |
|
A |
1A-15A |
|
15A-750A |
75Mv Buildout current divier |
|
KA |
1KA-3KA |
|
DC voltmeter |
V |
3V-600V |
Directly switch on |
|
KV |
1KV-3KV |
Buidout rated resistance |
