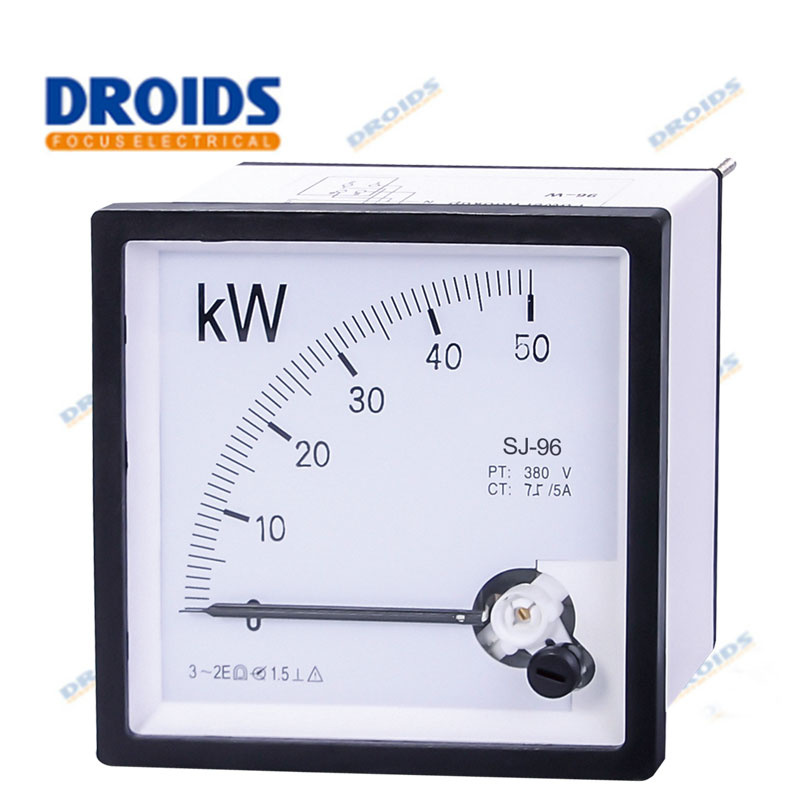

Analog Panel Power Meter (96*96)

Name: Analog Panel Power Meter (96*96)
Brand: china-manufacturer-directory.com
SKU: 767217195
Availability: InStock
Rating: 4.8 (141 reviews)

Price:	US $ 10.00/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Product Description

Accuracy: Class1.5
Voltage (three-phase three wire): 100, 110 and 220V (balance or unbalance)
Voltage (three-phase four wire): 100, 110, 220, 380 and 415V (balance or unbalance)
Current: If the current is over 10A, the current circuits have to be connected current transformer, which secondary current is 5A or 1A
If the current is not over 10A, it can be connected directly according to actual current
Frequency: 50 or 60Hz
Specification: 100W, 200W to 1kW, 2kW to 1mW, 2mW to 6mW

1. Professional manufacturer
2. High quality CE approval, competitive price.

Name		precision	normal specification	remark
AC ammeter	A	1.5	0.5-50A	can be directly connected
	A	1.5	10/5A-800/5A	secondary current passed by current transformer
	KA	1.5	1KA-10KA	secondary current passed by current transformer
AC voltmeter	V	1.5	10V-600V	can be directly connected
AC voltmeter	KV	1.5	1KV-35KV	100V secondary voltage passed by voltage transformer
DC ammeter	µA mA	2.5	50μA-500μA 1mA-500mA	can be directly connected
	A	1.5	1A-15A	can be directly connected
	A	1.5	15A-750A	outer attached shunt 75mV 60mV 50mV
	KA	1.5	1KA-3KA	outer attached shunt 75mV 60mV 50mV
DC voltmeter	V	1.5	3V-600V	can be directly connected
DC voltmeter	KV	1.5	1KV-3KV	outer attached resistance value
Hz meter	Hz	2.5	45-55HZ 55-65HZ	36V.100V.127V.220V.380V
Power meter	KW.VAR	2.5	100V 380V 380-380KV	100V secondary voltage passed by voltage ; Secondary current passed by current transformer 5-10KA/5A
cosφ meter	cosφ	2.5	COSφ =0.5-1-0.5	100V/5A 220V/5A 380V/5A

Prod Model:	96*96 Type meter
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	96mm*96mm
Display:	Indicator
Installation:	Direct Connected
Usage:	Meter for Industry and Home Use
Electric Equipment:	Single-phase
Theory:	Machine-electric Type
Power Meter Connection:	Terminal
Measured Signal:	Continuous Wave
Type:	Power Meter
