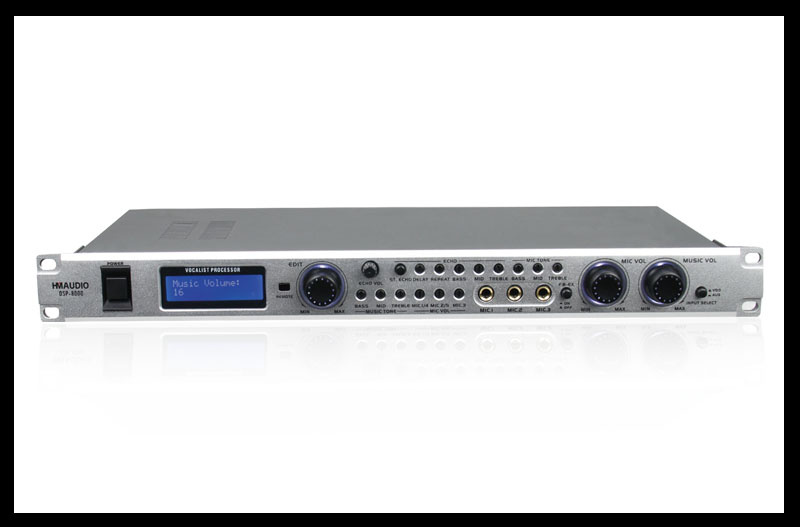

Analog Processor (DSP8000)

Name: Analog Processor (DSP8000)
Brand: china-manufacturer-directory.com
SKU: 707350785
Availability: InStock
Rating: 4.4 (129 reviews)

Supplier:	Huiming Electronic Technology Co., Ltd.
Price:	Negotiable/Box
Min Order:	50/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DSP8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. Professional double reverb eff, classic traditional analog reverb & digit DSP mode, volume can be independent adjust, So the singer can easily get professional level concert, high S/N.
2. Professional F. B restraint module, easily solved screaming.
3. Channel output hsa7 balance & 7 unbalance(L/R/ /L-surround/R-surround/L-LOW/R-LOW/MID), can be flexible with the power op-AMP
4. 32 memory functions, of 16 preset & 16 ' self eff, all parameters to AUTO save, close-down the machine the data will not lost.
5. Center & surround output channel, vocal & music its volume ratio independent adjust.
6. SUB channel has 45-500Hz phase adjust the volume can be control independently
7. Music & MIC 3 band parameters EQ, analog eff has 2 parameters EQ.

Technical Parameter
Items	Parameter			Test
Output channel	main output(L/R)		√
	center		√
	SUB		√
	(L/R)		√
(dB)S/N	MIC		75dB	1KHz OdB input
	MUSIC		90dB
THD	MIC		0.03%	1KHz OdB
	MUSIC		0.01%	input
MAX Input Level	MIC		300mv	1KHz
	MUSIC		6V	input
MAX Input Level	MIC		10Vrms	1KHz
	MUSIC		10Vrms	input
Sensitivity	MIC		15mV
	MUSIC		300mv
(Ω )	MIC		10K unbalance
Input impedance	MUSIC		47K unbalance
Channel resolution	85dB
Output impedance	300 balance, 1K unbalance
Feed back inhibition	√
Tone adj	MIC	BASS: 100Hz(± 15dB), MID: 1KHz(± 15dB), TREBLE: 10KHz(± 15dB)
	MUSIC	BASS: 100Hz(± 15dB), MID: 1KHz(± 15dB), TREBLE: 10KHz(± 15dB)
Weight	Net Weight		3.0KG
	Total Weight		3.5KG
Dimensions(WHD)	Unit Dimensions		48517050mm
	Pack Dimensions		500253103mm

Since 1999 Huimig Electronic Technology Co., Ltd. Has been manufacturing DSP processor professional audio & karaoke system. In digital audio DSP treatment effect has development & production experience & many variety of DSP audio solutions. Our team has committde itself to the development & production with every possible effort toward top quality, customer satisfaction, quick delivery & good service.

HM adopts production management systems & advanced production technologies. We're the best OEM/ODM business partner.
