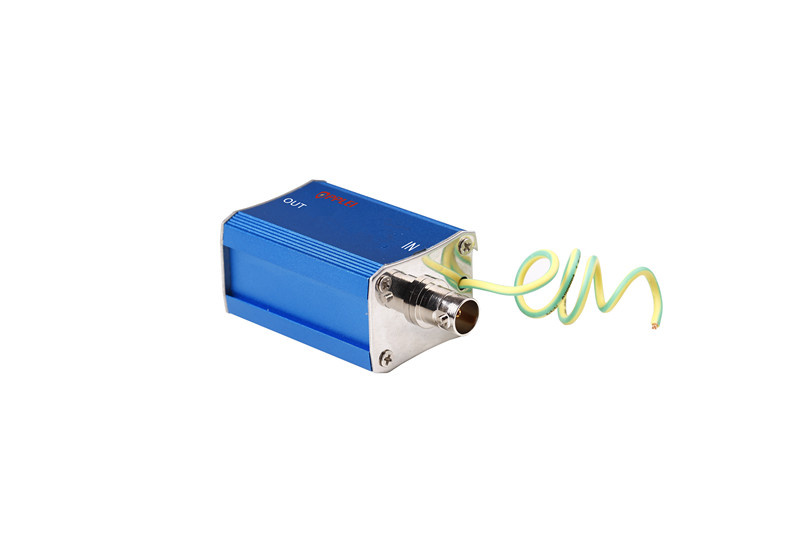

Analog Video Signal Surge Protector
Product Specifications
| Prod Model: |
SV-BNC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
SV-BNC
Analog video signal surge protector
1. Product features
Multi. Protection circuits, Gas-Tube + TVS technology
Low insertion loss
Quick response
Dual protection in Common mode and differential mode
TVS array technology, low capacitance
Multi-Strike Capability
Engineered BNC surge protection devices in multiple configurations
2. Applications
Lightning protection of analog video signal with BNC connector
DVR
VCR
CATV System
Antenna of Television
FM receivers
3. Technical data
| Model | SV-BNC |
| Nominal operating voltage Un | 5V |
| Nominal discharge current In (8/20μs) | 3KA |
| Maximum discharge current Imax (8/20μs) | 5KA |
| Protection level Up (8/20μs,3KA) | ≤20V |
| Response time Ta | ≤1ns |
| Transmission rate | 100Mbps |
| Insertion loss | ≤0.5dB |
| Protection route | 1 |
| Dimension | 85*25*25mm |
| Connector type | BNC |
| Weight | 80g |
| Mounting type | Series connected before the protected equipments |
| Housing material | Aluminum |
| Index of protection | IP20 |
| Operating environment | Temperature:-40-+85ºC humidity: ≤95% |
| warranty | Five-year warranty, three-year replacement |
| Related items | SV-BNC-4, SV-BNC-8, SV-BNC-16 |
