Product Specifications
| Prod Model: |
KHR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Yellow |
| Place Of Origin: |
Henan China (Mainland) |
| Model Number: |
Khr-a |
| Brand Name: |
Ke-Hui |
| Rated Power: |
220V |
| Power Frequency: |
50Hz |
| N.W: |
15kg |
| Size: |
0.7m X0.4m X0.5m |
| Cooling Medium: |
Water-Based, Oil-Based |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Type: |
Quenching Medium Test Machine |
Product Description

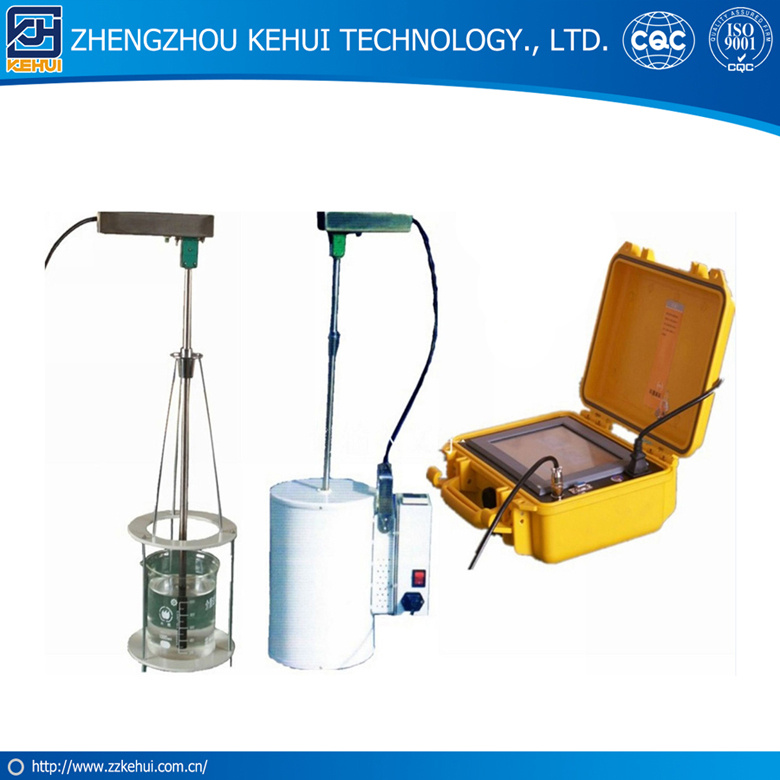

New brand KHR-A portable tempering Oil quenched dielectric test instruments
For heat treatment factory
1. Test the minimum at the maximum cold speed and the maximum of 300 centigrade degree, as the data for judgment of quenching medium.
2. Detect quenching medium regularly.
3. To judge whether the cooling medium should be changed or not.
4. Detect the cooling performance of different parts of cooling medium, and optimize the cooling process and equipment.
5. Quenching quality accident (quenching cracks, deformation. Not quench) analysis.
For cooling medium production factory
1. Analysis the relation of the component part of medium and the cooling performance.
2. Confirm the composition of quenching medium.
3. Help to develop new products
4. Control the product quality
Product function:
1. Can store 64 test results
2. Can stack four test results on one map for comparative analysis
3. Set RS232C interface and the corresponding software that can divert the test results to external computers.
4. Test of heating process and cooling process
About us:
We are the loading manufacturer specialized in designing and manufacturing different kinds of Automatic Arc Welders, Tungsten Electrode Grinders, Quenching Medium Performance Analyzers, Tube end facing machines in China with experience of 20 years, manufacturing according to the ISO9001: 2008 quality control system guidelines, CQC. We help our customer develop special arc welders for their application and OEM service offered.
Contact me:
Tina Guo, Tel: 086-371-56576016, Fax: 086-371-56576006
|
Probe |
Furnace |
Measurement record device |
|
Probe ontology
size |
12.5×
60mm |
Furnace type |
Vertical tubular
furnace |
Sampling speed |
Max1000 times/S |
|
|
Heating temperature |
<900°C |
Measurable max cold speed |
2000°C/S |
|
Probe
length |
600mm |
Heating time |
<10min |
LCD touch screen size |
8 feet |
|
Temperature-control
accuracy |
±1°C |
|
|
power supply |
AC220V
50Hz,50W |
|
Probe
thermocouple |
1.5
WRNK |
power supply |
AC220V,50Hz
1000W |
|
|
Outline dimensions |
310×210×320mm |
Outline dimensions |
290×250
×130mm |
|
