Summary:

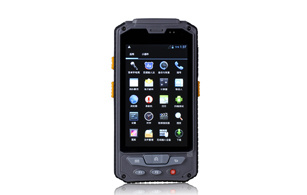

D9006 is the Android platform to develop a handheld mobile terminal based on Cortex, using A9 1.2GHZ processor, with 32GBROM, 8GBRAM storage space, maximum support 32G MICRO SD card. It contains GPRS, WCDMA, WIFI, Bluetooth and other wireless communication module. 4.3 inch IPS screen, resolution 480*800, high-definition full view, the sun is visible, support multi touch screen. D9006 with IP67 protection grade excellent sealing performance, which can fully meet the outdoor poor working conditions. The product has a power down protection of data security, data is not lost if it is completely power down (remove the battery and no external power supply). It using Moto-SE4500 and Honeywell-5180 2D code read head. Read stability, fast decoding, error rate ≤ 0.01%.
Parameter:
Processor: Cortex A9 1.2GHZ
Memory capacity: ROM: EMMC 32Gb RAM: LPDDR2 8Gb
Operating system: Android 4.22
Wireless communication
GPRS: GPRS, EDGE, 4-band 900/1800, 850/1900
WCDMA:
Band 850/2100, Cat. 8 HSDPA Cat. 6 HSUPA
WIFI:
Conform to the IEEE 802.11b/g
Bluetooth:
Conform to the Bluetooth 4.0
Display: 4.3 inch IPS screen, resolution 480*800, high-definition full view, the sun is visible
Touch screen: Support multi touch capacitive touch
The indicating lamp: Network indicator, the charge indicator lamp
Audio: Support voice broadcast
Micro SD card: Support 32G MICRO SD card
Data security:
The product has a power down protection data security, data is not lost when power off (completely remove the battery and no external power supply)
GPS index
Channel: 12 channels
Receive type: L1, C/A code, with carrier phase smoothing
Recapture: < 1s
The latest ASIC chips; COAST patented algorithm; EVEREST multipath mitigation technique
Error: < =10 meters
Navigation map: Support Kay Rucker, Baidu, Google, Gao De and other navigation map
Input method: Full screen handwriting, handwriting strokes, half dome, Pinyin, numbers, letters, symbols
Physical interface: High speed USB2.0 device interface, 3.5 stick inserted charging interface
Camera: Post 500W pixel camera with flash
Flashlight: Low power LED lighting, emergency use
Fingerprint module (optional)
Registration time: 3 seconds, compared to time < 0.1s, ratio of time: 0.5 seconds (100 pieces)
FRR < 0.1%, false accept rate < 0.001%, fingerprint capacity: 512
High frequency
Registration time: 3 seconds, compared to time < 0.1s, ratio of time: 0.5 seconds (100 pieces)
FRR < 0.1%, false accept rate < 0.001%, fingerprint capacity: 512
Battery performance
Battery:
4000mAh lithium polymer battery, standby time: More than 150 hours, working time: More than 8 hours, the AC adapter and charging (1A)
Battery standby time:
The wireless communication function can standby after a full charge, it can run normally after 360 hours.
Battery charging time:
Charging time < 4.5 hours
Charging time
8 hours (a full charge)
Work environment:
Operating temperature: -20'C~50'C
Storage temperature: -20'C~70'C
Relative humidity: 10%~90%RH, No condensation
Level of protection: IP65
Physical parameter
Total weight: Less than 300 grams (including battery, not including the charger)
Body size: 148 (long) x 77.5 (wide) x 27 (thick) 2 ± Mm
Annex
Standard: 1 lithium battery, 1 charging head 1, 1 USB data communication line.
