Product Specifications
| Prod Model: |
CES-EDU210A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Teaching Model |
| Laser Model: |
Red Laser |
| Usage: |
Computer |
Product Description

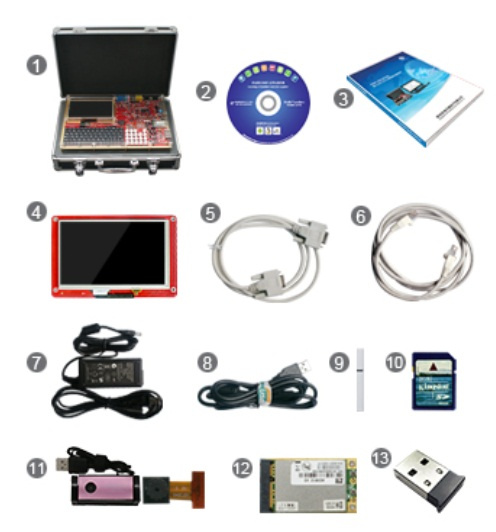

CES-EDU210A Hardware Configuration:
Samsung S5PV210, Cortex-A8, Frequency is 1GHz.
1GB DDR2 SDRAM, Samsung K4T1G084QQ.
1GB, NAND FLASH Samsung K9K8G08U0A
PMU: MAXIM, MAX8698C
Support VGA/LVDS/TFT Multi-display functions
Platform with 7-inch LCD touch screen, four-wire resistive touch screen
Audio stereo input/ output, IIS signal, Wolf WM8580A
4 channels USB HOST 2.0, 1 channels USB OTG2.0, 4 channels serial
1 channels HDMI 1.3 HD Interface
4 SDIO ports for MMC / SD, WiFi
DM9000AEP, 10M/100M Cable Interface
2*8 Keyboard scan surface
Internal real time clock (with back-up lithium battery)
Support ZTEs MG3732, MC8630, AD3812V2(minipci)
Support WiFi module, built in 802.11 b/g/n
Support GPS, the use of SIF III, can be globalpositioning
Support 2-megapixel camera
DC 12V power supply
CES-EDUA210A Sofware Configuration:
Kernel: Linux 3.0. 8
System boot: U-boot-1.3. 4
Debugging too: DNW 1.01
Cross compiler: Arm-2009q3
File System: AMDISK, YAFFS2
GUI: Google Android 4.0
3G communication module: Support text messages, internetfunctions
WiFi module: Support 802.11b/g
Bluetooth module: Support Bluetooth communication
GPS module: Support SIF III Global Positioning
Camera module: Support CMOSdriver
Ethernet module: 10M/100M adaptive network portdriver
HDMI Display: Support HDMI output
AUDIO driver: Support AUDIO
LCD Display: Support LTE480 WVGA(800*480)
TOUCH driver: Four-wire resistive touch screen driver
I2C driver: Audio, Camera, HDMI with the I2C driver to communication
USB HOST driver: Support HOST function, canconnect U disk, Mouse, Keypad
USB OTG driver: Support device function
Keypad driver: Support 8*8 button scanning
SD/MMC interface: Support high speed SD/MMC Card
RTC driver: Support real time clock
MFC driver: Multi-Format Video Codec
UART driver: Serial communication
JPEG driver: JPEG CODEC
2D driver: 2D hardware acceleration
3D driver: 3D hardware acceleration
