Product Specifications
Product Description

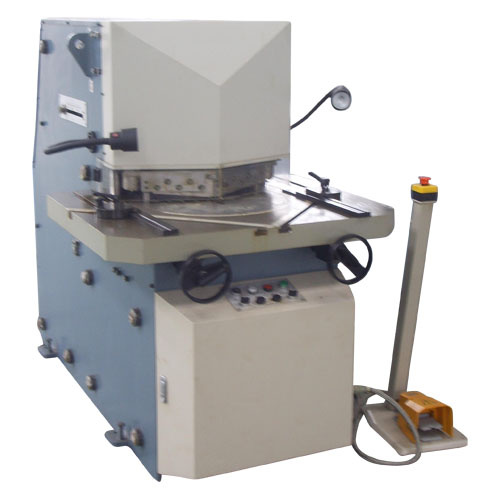

QA28Y Series Angle Cutting Machine
Technical Specifications and Features
QA28Y-6X200
1.Shear Size(mm)--------------------- 6(A3).3(SS)
2.Shear length(mm)-------------------200
3.Adjustment of Cutting angle ---------- 60°-135°.30°-135°
4.Shear number(time/min)------------ 30
5.Size of Working table(mm)--------- 1000X800
6.Main power(KW)-------------------- 5.5
7.Dimension(L x W x H)---------------2150X1200X1650 mm
8.Weight(KG)--------------------------- 2100
Main features:
1.High-rigidity&precisely machined steel-welded machine frame which stress is removed by vibration process;
2.Hydraulic variable-angle shear;
3, The large range for adjustment cutting angle, the adjust fast speed for handwheel;
Main components of the machine:
1, Main oil seals:NOK_made in Japan
2, Solenoid Valve:YUKEN_made in Taiwan.ATOS_made in Italy
3, Main electrical equipments:
Trip switch\ Button etc:SCHNEIDER
Intermediate relay\ AC contactor:SCHNEIDER
4.Blades:IKS-- Sino-German joint venture
WUXI RUIKE MACHINERY Co., Ltd is a professional metal-forming machinery manufacturer, specialized in making sheet shearing, bending machine, rolling machine, and machine tools, which has successfully developed and produced over 120 models of metal-forming equipment. It has become a newly rising powerful metal-forming machinery manufactory of China.
Our products are well sold to most citise and provinces of China and many foreign countries and region of the world. And the products are highly appraised by our customers in Australia, Russia, Canada, Mexico, Singapore, South Africa, Braisl, Sweden and other foreign countries.
Our company persisting in the principle of taking quality as the foundation of existence, that was of development and resource of customers for the company.
Main products:
1 CNC Hydraulic guillotine shears (QC11K Series)
2 CNC Hydraulic Press brake (WC67K Series)
3 CNC Hydraulic swing beam shears (QC12K Series)
4 Hydraulic guillotine shears (QC11Y Series)
5 Hydraulic Press brake (WC67Y Series)
6 Hydraulic swing beam shears (QC12Y Series)
7 Iron worker (Q35Y Series)
8 Drilling and Milling machine
9 Milling machine
10 Foot shears
11 etc
