Product Specifications
| Prod Model: |
7302-B-2RS-TVP |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Separated: |
Separated |
| The Number Of Rows: |
Single |
| Rolling Body: |
Ball Bearings |
| Outer Dimension: |
260mm |
Product Description

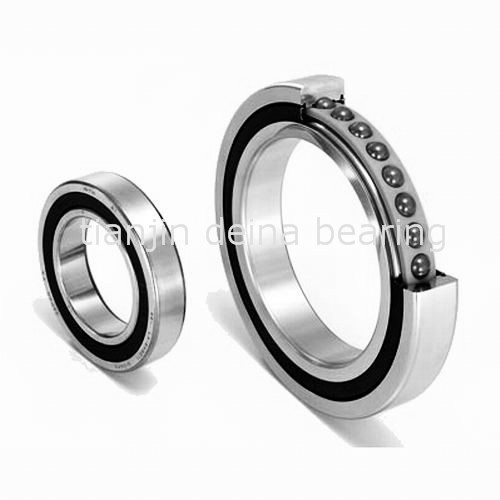

Angular Contact Ball Bearing 7302-B-2RS-TVP
1)Description:
*Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.
*Single row angular contact ball bearings can support axial forces in one direction and high radial forces. They must be axially adjusted against a second bearing fitted in a mirror image arrangement.
2)Product Features
*Optimised internal design
*High load ratings
*Increased limiting speed
*High strength ball guided brass cage
*High dimensional and running accuracy
*Narrow axial clearances or preloads range
*Universal facing in standard
3)Product Benefits
*Long life
*Reduced heat generation, vibration and noise
*Easy handling and installation due to universal facing
*high speed ccnpacity
4)Dimension:
Inner Diameter 15mm
Outside Diameter 42mm
Thickness 13mm
|
Model |
d |
D |
B |
|
mm |
mm |
mm |
|
7302-B-2RS-TVP |
15 |
42 |
13 |
|
7303-B-2RS-TVP |
17 |
47 |
14 |
|
7304-B-2RS-TVP |
20 |
52 |
15 |
|
7305-B-2RS-TVP |
25 |
62 |
17 |
|
7306-B-2RS-TVP |
30 |
72 |
19 |
|
7307-B-2RS-TVP |
35 |
80 |
21 |
|
7308-B-2RS-TVP |
40 |
90 |
23 |
Tianjin DeINA Bearing Sales Co., Ltd, has been in manufacture/research/development of bearing & bearing components for 15 years
The main products includes:
-----Ball bearing: Deep Groove ball bearings, Thrust ball bearings, Angular contact ball bearings, self aligning ball bearings, Insert Ball Bearings
-----Roller bearing: Spherical roller bearings, Tapered roller bearings, Cylindrical roller bearings, Needle Roller Bearings, CARB Toroidal roller bearing
-----Other bearings: Spindle Bearings, Bearing housing, Pillow block bearing, Bearing Ball, Miniature bearings and Adapter Sleeves.
Our manufacture range is from 8mm to 3 meters, and we have large stock at present. The material we mainly using includes Chrome Steel GCR15, high Carbon Steel GCR11 and stainless steel.
Our bearings successfully used in some of the following fields: Automotive Trucks, Railways, Shipping, Mining, Steel Industries, Petrochemicals, Power generation including Agricultural machinery, Textiles, Outer Space Fight, Civil & Military aviation.
With advanced technology and fine product quality, for the last 5 years international trading, Our products are of good reputation & well sells to Mid-East, North & South American, European, & Asia Countries etc, And got good reputation.
"Trust is no boundary, friendship is no boarder" we welcome any end user/agency/OEM/ODM projects. DeINA- be your trust.
