Shanghai Shengjian Bearing Co., Ltd. >> Angular Contact Bearing (7315C/DB 7315C/DF 7315C/DT 7316AC 7316AC/DB)

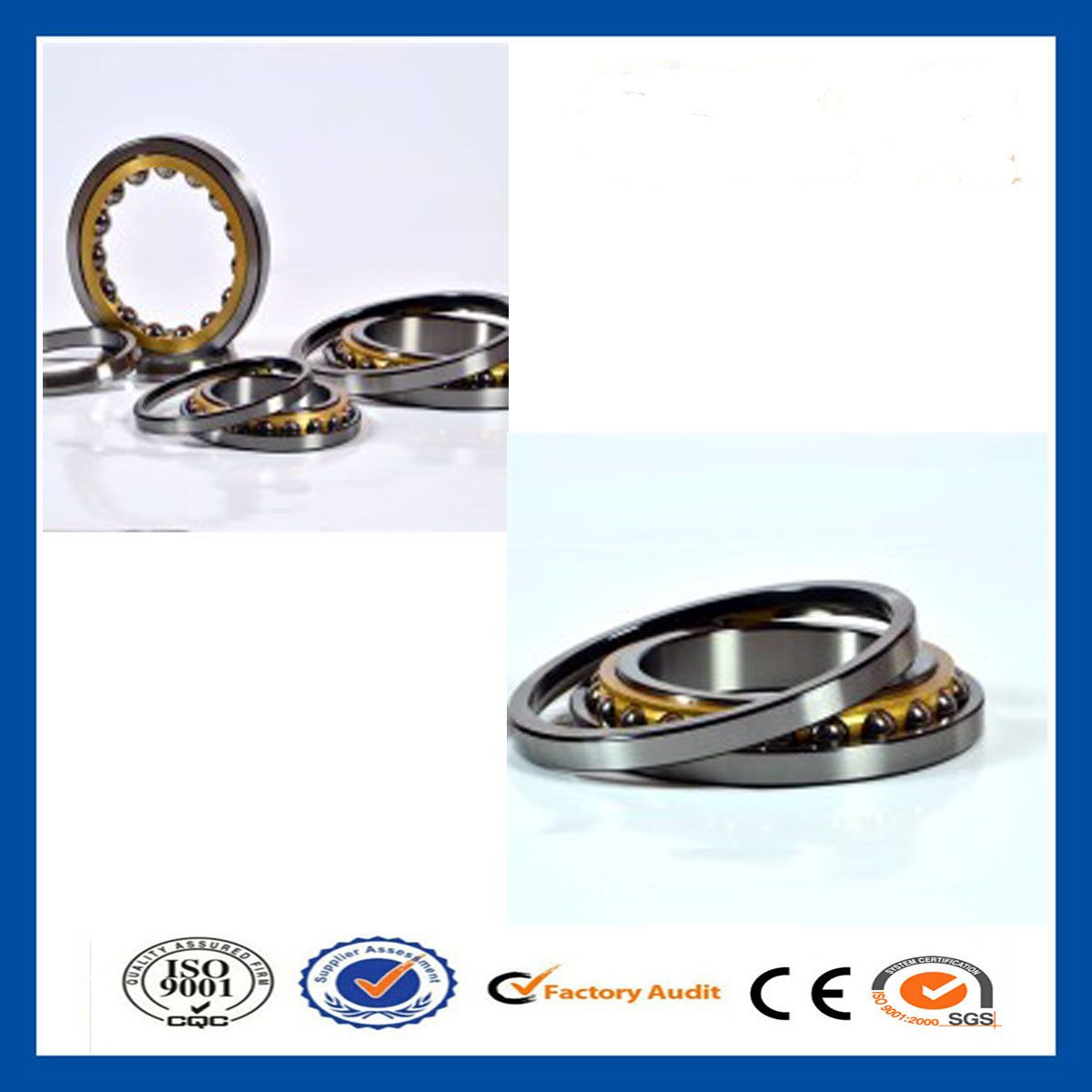

Angular Contact Bearing (7315C/DB 7315C/DF 7315C/DT 7316AC 7316AC/DB)

Name: Angular Contact Bearing (7315C/DB 7315C/DF 7315C/DT 7316AC 7316AC/DB)
Brand: china-manufacturer-directory.com
SKU: 621130484
Availability: InStock
Rating: 4.9 (128 reviews)

Supplier:	Shanghai Shengjian Bearing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	7315C/DB 7315C/DF 7315C/DT 7316AC 7316AC/DB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bore Size:	10mm~220mm
Outside Size:	30mm~400mm
OEM:	Accepted
Rolling Body:	Ball Bearings
The Number Of Rows:	Single
Outer Dimension:	Medium and Large(',120-190mm)
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Unseparated

Product Description

Angular contact bearing
Feature
A, which can also bear radial and axial load or axial load
B, running resistance is small, the limit speed is high
C, high rotation accuracy
D, low noise and vibration
E, single row angular contact ball bearings can only bear a direction of the axial force, is usually used to balance the axial force
Product application:
Machine tools, precision instruments, automotive, fluid transportation machinery, light industry machinery, etc.

New Model	Old Model	Bore D	Exterior D	Width	Cr	Cor	Grease Lubrication Speed	Oil Lubrication Speed	Weight
New Model	Old Model	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
7200AC/DB	246200	10	30	18	7.55	4.4	23000	29000	0.062
7200AC/DF	346200	10	30	18	7.55	4.4	23000	29000	0.062
7200AC/DT	446200	10	30	18	-	-	-	-	-
7200B	66200	10	30	9	4.3	2	22000	29000	0.031
7200B/DB	266200	10	30	18	6.95	4.05	18000	23000	0.062
7200B/DF	366200	10	30	18	6.95	4.05	18000	23000	0.062
7200B/DT	466200	10	30	18	6.95	4.05	18000	23000	0.062
7200C/DB	236200	10	30	18	8.1	4.7	32000	43000	0.062
7200C/DF	336200	10	30	18	8.1	4.7	32000	43000	0.062
7200C/DT	436200	10	30	18	8.1	4.7	32000	43000	0.062
7201AC/DB	246201	12	32	20	12.1	7.25	22000	27000	0.076
7201AC/DF	346201	12	32	20	12.1	7.25	22000	27000	0.076
7201AC/DT	446201	12	32	20	12.1	7.25	22000	27000	0.076
7201B	66201	12	32	10	6.95	3.4	20000	27000	0.038
7201B/DB	266201	12	32	20	11.3	6.8	16000	21000	0.076
7201B/DF	366201	12	32	20	11.3	6.8	16000	21000	0.076
7201B/DT	466201	12	32	20	11.3	6.8	16000	21000	0.076
7201C/DB	236201	12	32	20	12.8	7.7	30000	40000	0.076
7201C/DF	336201	12	32	20	12.8	7.7	30000	40000	0.076
7201C/DT	436201	12	32	20	12.8	7.7	30000	40000	0.076
7202AC/DB	246202	15	35	22	-	-	-	-	-
7202AC/DF	346202	15	35	22	13.2	8.55	19000	24000	0.096
7202AC/DT	446202	15	35	22	13.2	8.55	19000	24000	0.096
7202B	66202	15	35	11	7.45	3.95	18000	24000	0.048
7202B/DB	266202	15	35	22	12.1	7.85	14000	19000	0.066
7202B/DF	366202	15	35	22	12.1	7.85	14000	19000	0.096
7202B/DT	466202	15	35	22	12.1	7.85	14000	19000	0.096
7202C/DB	236202	15	35	22	14.1	9.15	26000	35000	0.096
7202C/DF	336202	15	35	22	14.1	9.15	26000	35000	0.096
7202C/DT	436202	15	35	22	14.1	9.15	26000	35000	0.096
7203AC/DB	246203	17	40	24	16.5	11	17000	21000	0.144
7203AC/DF	346203	17	40	24	16.5	11	17000	21000	0.144
7203AC/DT	446203	17	40	24	16.5	11	17000	21000	0.144
7203B	66203	17	40	12	9.35	5.05	16000	21000	0.07
7203B/DB	266203	17	40	24	15.2	10.1	12000	17000	0.146
7203B/DF	366203	17	40	24	15.22	10.1	12000	17000	0.146
7203B/DT	466203	17	40	24	15.2	10.1	12000	17000	0.146
7203C/DB	236203	17	40	24	17.7	11.8	23000	30000	0.144
7203C/DF	336203	17	40	24	17.7	11.8	23000	30000	0.144
7203C/DT	436203	17	40	24	17.7	11.8	23000	30000	0.144
7204AC/DB	246204	20	47	28	23.5	16.8	14000	17000	0.224
7240AC/DF	346204	200	360	116	430	924	2200	3000	50.3
7204AC/DT	446204	20	47	28	23.5	16.8	14000	17000	0.224
7204B/DB	266204	20	47	28	21.6	15.4	10000	14000	0.224
7204B/DF	366204	20	47	28	21.6	15.4	10000	14000	0.224
7204B/DT	466204	20	47	28	21.6	15.4	10000	14000	0.224
7204C/DB	236204	20	47	28	25.2	18	19000	26000	0.224
7204C/DF	336204	20	47	28	25.2	18	19000	26000	0.224
7204C/DT	436204	20	47	28	25.2	18	19000	26000	0.224
7205AC/DB	246205	25	52	30	24.9	19	12000	15000	0.28
7205AC/DF	346205	25	52	30	24.9	19	12000	15000	0.28
7205AC/DT	446205	25	52	30	24.9	19	12000	15000	0.28
7205B/DB	226205	25	52	30	22.7	17.4	9200	12000	0.287
7205B/DF	366205	25	52	30	22.7	17.4	9200	12000	0.287
7205B/DT	466205	25	52	30	22.7	17.4	9200	12000	0.287
7205C/DB	236205	25	52	30	26.9	20.5	17000	23000	0.279
7205C/DF	336205	25	52	30	26.9	20.5	17000	12000	0.279
7205C/DT	436205	25	52	30	26.9	20.5	17000	23000	0.279
7206AC/DB	246206	30	62	32	34.7	27.4	10000	13000	0.416
7206AC/DF	346206	30	62	32	34.7	27.4	10000	13000	0.416
7206AC/DT	446206	30	62	32	34.7	27.4	10000	13000	0.416
7206B/DB	226206	30	62	32	31.6	25	7700	10000	0.416
7206B/DF	366206	30	62	32	31.6	25	7700	10000	0.416
7206B/DT	466206	30	62	32	31.6	25	7700	10000	0.416
7206C/DB	236206	30	62	32	37.4	29.5	14000	19000	0.416
7206C/DF	336206	30	62	32	37.4	29.5	15000	19000	0.416
7206C/DT	436206	30	62	32	37.4	29.5	14000	19000	0.416
7207AC/DB	246207	35	72	34	45.7	37.3	8800	11000	0.623
7207AC/DF	346207	35	72	34	45.7	37.3	8800	11000	0.623
7207AC/DT	446207	35	72	34	45.7	37.3	8800	11000	0.623
7207B/DB	2262207	35	72	34	41.6	34.1	6600	8800	0.63
7207B/DF	366207	35	72	34	41.6	34.1	6600	8800	0.63
7207B/DT	466207	35	72	34	41.6	34.1	6600	8800	0.63
7207C/DB	236207	35	72	34	49.4	40.2	12000	16000	0.622
7207C/DF	336207	35	72	34	49.4	40.2	12000	16000	0.622
7207C/DT	436207	35	72	34	49.4	40.2	12000	16000	0.622
7208AC/DB	246208	40	80	36	54.6	46.7	8000	10000	0.764
7208AC/DF	346208	40	80	36	54.6	46.7	8000	10000	0.764
7208AC/DT	446208	40	80	36	54.6	46.7	8000	10000	0.764
7208B/DB	226208	40	80	36	49.7	42.7	6000	8000	0.764
7208B/DF	366208	40	80	36	49.7	42.7	6000	8000	0.764
7208B/DT	466208	40	80	36	49.7	42.7	6000	8000	0.764
7208C/DB	236208	40	80	36	59.1	50.4	11000	15000	0.764
7208C/DF	336208	40	80	36	59.1	50.4	11000	15000	0.764
7208C/DT	436208	40	80	36	59.1	50.4	11000	15000	0.764
7209AC/DB	246209	45	85	38	61.3	53.2	7500	9400	0.921
7209AC/DF	346209	45	85	38	-	-	-	-	-
7209AC/DT	446209	45	85	38	61.3	53.2	7500	9400	0.921
7209B/DB	226209	45	85	38	55.8	48.6	5600	7500	0.934
7209B/DF	366209	45	85	38	-	-	-	-	-
7209B/DT	466209	45	85	38	55.8	48.6	5600	7500	0.934
7209C/DB	236209	45	85	38	66.3	57.4	10000	14000	0.928
7209C/DF	336209	45	85	38	-	-	-	-	-
7209C/DT	436209	45	85	38	66.3	57.4	10000	14000	0.928
7210AC/DB	246210	50	90	40	64	58.7	6800	8500	1.02
7210AC/DF	346210	50	90	40	64	58.7	6800	8500	1.02
7210AC/DT	446210	50	90	40	64	58.7	6800	8500	1.02
7210B/DB	226210	50	90	40	58	53.5	5100	6800	1.04
7210B/DF	366210	50	90	40	58	53.5	5100	6800	1.04
7210B/DT	466210	50	90	40	58	53.5	5100	6800	1.04
7210C/DB	236210	50	90	40	69.6	63.6	9400	12000	1.02
7210C/DF	336210	50	90	40	-	-	-	-	-
7210C/DT	436210	50	90	40	69.6	63.6	9400	12000	1.02
7211AC/DB	246211	55	100	42	79.1	74.2	6100	7600	1.27
7211AC/DF	346211	55	100	42	79.1	74.2	6100	7600	1.27
7211AC/DT	446211	55	100	42	79.1	74.2	6100	7600	1.27
7211B/DB	226211	55	100	42	71.6	67.6	4600	6100	1.27
7211B/DF	366211	55	100	42	71.6	67.6	4600	6100	1.27
7211B/DT	466211	55	100	42	71.6	67.6	4600	6100	1.27
7211C/DB	236211	55	100	42	85.9	80.4	8400	11000	1.27
7211C/DF	336211	55	100	42	85.9	80.4	8400	11000	1.27
7211C/DT	436211	55	100	42	85.9	80.4	8400	11000	1.27
7212AC/DB	246212	60	110	44	95.7	91.5	5500	6900	1.64
7212AC/DF	346212	60	110	44	95.7	91.5	5500	6900	1.64
7212AC/DT	446212	60	110	44	95.7	91.5	5500	6900	1.64
7212B/DB	266212	60	110	44	86.8	83.3	4100	5500	1.64
7212B/DF	366212	60	110	44	86.8	83.3	4100	5500	1.64
7212B/DT	466212	60	110	44	86.8	83.3	4100	5500	1.64
7212C/DB	236212	60	110	44	104	99	7500	10000	1.64
7212C/DF	336212	60	110	44	104	99	7500	10000	1.64
7212C/DT	436212	60	110	44	72.5	90	7700	10000	1.57
7213AC/DB	246213	65	120	46	109	108	5200	6400	2.04
7213AC/DF	346213	65	120	46	109	108	5200	6400	2.04
7213AC/DT	446213	65	120	46	109	108	5200	6400	2.04
7213B/DB	266213	65	120	46	99	98.7	3900	5200	2.04
7213B/DF	366213	65	120	46	99	98.7	3900	5200	2.04
7213B/DT	466213	65	120	46	99	98.7	3900	5200	2.04
7213C/DB	236213	65	120	46	119	117	7100	9400	2.04
7213C/DF	336213	65	120	46	119	117	7100	9400	2.04
7213C/DT	436213	65	120	46	119	117	7100	9400	2.04
7214AC/DB	246214	70	125	48	113	111	4900	6100	2.24
7214AC/DF	346214	70	125	48	113	111	4900	6100	2.24
7214AC/DT	446214	70	125	48	113	111	4900	6100	2.24
7214B/DB	266214	70	125	48	103	101	3700	4900	2.24
7214B/DF	366214	70	125	48	103	101	3700	4900	2.24
7214B/DT	466214	70	125	48	103	101	3700	4900	2.24
7214C/DB	236214	70	125	48	123	120	6700	8900	2.24
7214C/DF	336214	70	125	48	123	120	6700	8900	2.24
7214C/DT	436214	70	125	48	123	120	6700	8900	2.24
7215AC/DB	246215	75	130	50	129	130	4600	5800	2.46
7215AC/DF	346215	75	130	50	129	130	4600	5800	2.46
7215AC/DT	446215	75	130	50	129	130	4600	5800	2.46
7215B/DB	266215	75	130	50	116	119	3500	4600	2.46
7215B/DF	366215	75	130	50	116	119	3500	4600	2.46
7215B/DT	466215	75	130	50	116	119	3500	4600	2.46
7215C/DB	236215	75	130	50	140	141	6400	8500	2.46
7215C/DF	336215	75	130	50	140	141	6400	8500	2.46
7215C/DT	436215	75	130	50	140	141	6400	8500	2.46
7216AC/DB	246216	80	140	52	139	143	4300	5400	3.2
7216AC/DF	346216	80	140	52	139	143	4300	5400	3.2
7216AC/DT	446216	80	140	52	139	143	4300	5400	3.2
7216B/DB	266216	80	140	52	125	130	3200	4300	3.26
7216B/DF	366216	80	140	52	125	130	3200	4300	3.26
7216B/DT	466216	80	140	52	125	130	3200	4300	3.26
7216C/DB	236216	80	140	52	151	155	5900	7900	3.2
7216C/DF	336216	80	140	52	151	155	5900	7900	3.2
7216C/DT	436216	80	140	52	151	155	5900	7900	3.2
7217AC/DB	246217	85	150	56	160	167	4000	5000	3.74
7217AC/DF	346217	85	150	56	160	167	4000	5000	3.74
7217AC/DT	446217	85	150	56	160	167	4000	5000	3.74
7217B/DB	266217	85	150	56	145	152	3000	4000	3.74
7217B/DF	366217	85	150	56	145	152	3000	4000	3.74
7217B/DT	466217	85	150	56	145	152	3000	4000	3.74
7217C/DB	236217	85	150	56	174	181	5500	7400	3.74
7217C/DF	336217	85	150	56	174	181	5500	7400	3.74
7217C/DT	436217	85	150	56	174	181	5500	7400	3.74
7218AC/DB	246218	90	160	60	183	193	3800	4700	4.97
7218AC/DF	346218	90	160	60	183	193	3800	4700	4.97
7218AC/DT	446218	90	160	60	183	193	3800	4700	4.97
7218B/DB	266218	90	160	60	166	176	2800	3800	5.06
7218B/DF	366218	90	160	60	166	176	2800	3800	5.06
7218B/DT	466218	90	160	60	166	176	2800	3800	5.06
7218C/DB	236218	90	160	60	199	209	5200	6900	4.96
7218C/DF	336218	90	160	60	199	209	5200	6900	4.96
7218C/DT	436218	90	160	60	199	209	5200	6900	4.96
7219AC/DB	246219	95	170	64	198	207	3500	4400	5.56
7219AC/DF	346219	95	170	64	198	207	3500	4400	5.56
7219AC/DT	446219	95	170	64	198	207	3500	4400	5.56
7219B/DB	266219	95	170	64	180	188	2700	3500	5.56
7219B/DF	366219	95	170	64	180	188	2700	3500	5.56
7219B/DT	466219	95	170	64	180	188	2700	3500	5.56
7219C/DB	236219	95	170	64	216	224	4900	6500	5.56
7219C/DF	336219	95	170	64	216	224	4900	6500	5.56
7219C/DT	436219	95	170	64	216	224	4900	6500	5.56
7220AC/DB	246220	100	180	68	223	235	3300	4100	6.64
7220AC/DF	346220	100	180	68	223	235	3300	4100	6.64
7220AC/DT	446220	100	180	68	233	235	3300	4100	6.64
7220B/DB	266220	100	180	68	202	214	2500	3300	6.64
7220B/DF	366220	100	180	68	202	214	2500	3300	6.64
7220B/DT	466220	100	180	68	202	214	2500	3300	6.64
7220C/DB	236220	100	180	68	242	254	4600	6100	6.64
7220C/DF	336220	100	180	68	242	254	4600	6100	6.64
7220C/DT	436220	100	180	68	242	254	4600	6100	6.64
7221AC/DB	-	105	190	72	243	265	3100	3900	8.36
7221AC/DF	346221	105	190	72	243	265	3100	3900	8.36
7221AC/DT	446221	105	190	72	243	265	3100	3900	8.36
7221B/DB	266221	105	190	72	220	241	2300	3100	8.54
7221B/DF	366221	105	190	72	220	241	2300	3100	8.54
7221B/DT	466221	105	190	72	220	241	2300	3100	8.54
7221C/DB	236221	105	190	72	264	287	4300	5700	8.35
7221C/DF	336221	105	190	72	264	287	4300	5700	8.35
7221C/DT	436221	105	190	72	264	287	4300	5700	8.35
7222AC/DB	-	110	200	76	263	297	3000	3700	9.8
7222AC/DF	346222	110	200	76	263	297	3000	3700	9.8
7222AC/DT	446222	110	200	76	263	297	3000	3700	9.8
7222B/DB	266222	110	200	76	238	270	2200	3000	10.1
7222B/DF	366222	110	200	76	238	270	2200	3000	10.1
7222B/DT	466222	110	200	76	238	270	2200	3000	10.1
7222C/DB	236222	110	200	76	286	321	4100	5400	9.8
7222C/DF	336222	110	200	76	286	321	4100	5400	9.8
7222C/DT	436222	110	200	76	286	321	4100	5400	9.8
7224AC/DB	-	120	215	80	283	332	2700	3400	11
7224AC/DF	346224	120	215	80	283	332	2700	3400	11
7224AC/DT	446224	120	215	80	283	332	2700	3400	11
7224B	66224	120	215	40	158	151	2600	3400	5.49
7224B/DB	266224	120	215	80	257	302	2100	2800	11
7224B/DF	366224	120	215	80	257	302	2100	2800	11
7224B/DT	466224	120	215	80	257	302	2100	2800	11
7224C/DB	236224	120	215	80	308	359	3800	5000	11
7224C/DF	336224	120	215	80	308	359	3800	5000	11
7224C/DT	436224	120	215	80	308	359	3800	5000	11
7226AC/DB	-	130	230	80	318	395	2500	3200	12.4
7226AC/DF	346226	130	230	80	318	395	2500	3200	12.4
7226AC/DT	446226	130	230	80	318	395	2500	3200	12.4
7226B	66226	130	230	40	177	180	2400	3200	6.21
7226B/DB	266226	130	230	80	288	360	1900	2500	12.4
7226B/DF	366226	130	230	80	288	360	1900	2500	12.4
7226B/DT	466226	130	230	80	288	360	1900	2500	12.4
7226C/DB	236226	130	230	80	346	428	3500	4700	12.4
7226C/DF	336226	130	230	80	346	428	3500	4700	12.4
7226C/DT	436226	130	230	80	346	428	3500	4700	12.4
7228AC/DB	-	140	250	84	355	468	2300	2900	15.5
7228AC/DF	346228	140	250	84	355	468	2300	2900	15.5
7228AC/DT	446228	140	250	84	355	468	2300	2900	15.5
7228B	66228	140	250	42	197	213	2200	2900	7.76
7228B/DB	266228	140	250	84	320	426	1700	2300	15.5
7228B/DF	366228	140	250	84	320	426	1700	2300	15.5
7228B/DT	466228	140	250	84	320	426	1700	2300	15.5
7228C/DB	236228	140	250	84	386	508	3200	4300	15.5
7228C/DF	336228	140	250	84	386	508	3200	4300	15.5
7228C/DT	436228	140	250	84	386	508	3200	4300	15.5
7230AC	46230	150	270	45	248	280	2700	3300	9.75
7230AC/DB	-	150	270	90	403	560	2100	2700	19.5
7230AC/DF	346230	150	270	90	403	560	2100	2700	19.5
7230AC/DT	446230	150	270	90	403	560	2100	2700	19.5
7230B	66230	150	270	45	225	254	2000	2700	9.75
7230B/DB	266230	150	270	90	365	509	1600	2100	19.5
7230B/DF	366230	150	270	90	365	509	1600	2100	19.5
7230B/DT	466230	150	270	90	365	509	1600	2100	19.5
7230C	36230	150	270	45	270	303	3700	4900	9.75
7230C/DB	236230	150	270	90	439	607	2900	3900	19.5
7230C/DF	336230	150	270	90	439	607	2900	3900	19.5
7230C/DT	436230	150	270	90	439	607	2900	3900	19.5
7232AC/DB	-	160	290	96	374	525	2000	2500	24.2
7232AC/DF	346232	160	290	96	374	525	2000	2500	24.2
7232AC/DT	446232	160	290	96	374	525	2000	2500	24.2
7232B	66232	160	290	48	238	279	1500	2500	12.1
7232B/DB	266232	160	290	96	386	557	1500	2000	24.2
7232B/DF	366232	160	290	96	386	557	1500	2000	24.2
7232B/DT	466232	160	290	96	386	557	1500	2000	24.2
7232C/DB	236232	160	290	96	465	665	2700	3600	24.2
7232C/DF	336232	160	290	96	465	665	2700	3600	24.2
7232C/DT	436232	160	290	96	465	665	2700	3600	24.2
7234AC/DB	-	170	310	104	441	661	1800	2300	30.2
7234AC/DF	346234	170	310	104	441	661	1800	2300	30.2
7234AC/DT	446234	170	310	104	441	661	1800	2300	30.2
7234B	66234	170	310	52	245	300	1700	2300	15.1
7234B/DB	266234	170	310	104	398	600	1400	1800	30.2
7234B/DF	366234	170	310	104	398	600	1400	1800	30.2
7234B/DT	466234	170	310	104	398	600	1400	1800	30.2
7234C/DB	236234	170	310	104	482	719	2500	3300	30.2
7234C/DF	336234	170	310	104	482	719	2500	3300	30.2
7234C/DT	436234	170	310	104	482	719	2500	3300	30.2
7236AC/DB	-	180	320	110	477	724	1700	2200	31.4
7236AC/DF	346236	180	320	110	477	724	1700	2200	31.4
7236AC/DT	446236	180	320	110	477	724	1700	2200	31.4
7236B	66236	180	320	52	265	329	1600	2200	15.7
7236B/DB	266236	180	320	110	430	657	1300	1700	31.4
7236B/DF	366236	180	320	110	430	657	1300	1700	31.4
7236B/DT	466236	180	320	110	430	657	1300	1700	31.4
7236C/DB	236236	180	320	110	520	786	2400	3200	31.4
7236C/DF	336236	180	320	110	520	786	2400	3200	31.4
7236C/DT	436236	180	320	110	520	786	2400	3200	31.4
7238AC	46238	190	340	55	303	390	2000	2500	18.8
7238AC/DB	-	190	340	110	493	779	1600	2000	37.6
7238AC/DF	346238	190	340	110	493	779	1600	2000	37.6
7238AC/DT	446238	190	340	110	493	779	1600	2000	37.6
7238B	66238	190	340	55	273	353	1500	2000	18.8
7238B/DB	266238	190	340	110	443	706	1200	1600	37.6
7238B/DF	366238	190	340	110	443	706	1200	1600	37.6
7238B/DT	466238	190	340	110	443	706	1200	1600	37.6
7238C	36238	190	340	55	331	424	2800	3700	18.8
7238C/DB	236238	190	340	110	538	848	2200	3000	37.6
7238C/DF	336238	190	340	110	538	848	2200	3000	37.6
7240AC/DB	-	200	360	116	526	847	1500	1900	44.8
7240AC/DF	346240	200	360	116	560	920	2200	3000	50.3
7240AC/DT	446240	200	360	116	526	847	1500	1900	44.8
7240B/DB	266240	200	360	116	387	834	2200	3000	51.6
7240B/DF	366240	200	360	116	474	768	1100	1500	44.8
7240B/DT	466240	200	360	116	474	768	1100	1500	44.8
7240C/DB	236240	200	360	116	575	921	2100	2800	44.8
7240C/DF	336240	200	360	116	453	974	2200	3000	50.3
7240C/DT	436240	200	360	116	575	921	2100	2800	44.8
7244AC/DB	-	220	400	130	-	-	-	-	-
7244AC/DF	346244	220	400	130	-	-	-	-	-
7244AC/DT	446244	220	400	130	-	-	-	-	-
7244B	66244	220	400	65	-	-	-	-	-
7244B/DB	266244	220	400	130	-	-	-	-	-
7244B/DF	366244	220	400	130	-	-	-	-	-
7244B/DT	466244	220	400	130	-	-	-	-	-
7244C	36244	220	400	65	-	-	-	-	-
7244C/DB	236244	220	400	130	-	-	-	-	-
7244C/DF	336244	220	400	130	-	-	-	-	-
7244C/DT	436244	220	400	130	-	-	-	-	-
7248C/DT	436238	190	340	110	-	-	-	-	-

Bearing No.(New)	Bearing No.(Old)	Inner Diameter(Mm)	External Diameter(Mm)	Width(Mm)	Cr(Kn)	Cor(Kn)	Grease Lubrication Speed(R/Min)	Oil Lubricatin Speed(R/Min)	Weight(Kg)
7315C/DB	236315	75	160	74	223	208	5500	7400	6.81
7315C/DF	336315	75	160	74	223	208	5500	7400	6.81
7315C/DT	436315	75	160	74	223	208	5500	7400	6.81
7316AC	46316	80	170	39	139	109	4700	5900	3.85
7316AC/DB	246316	80	170	78	226	218	3800	4700	8.11

Why buy from us?
1. Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2. Delivery fast -----Goods be sent out within 7 to 15 days based on order quantity.
3. Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.

Payment:
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union or Paypal in advance. (specially for air shipment or small amount)

Our Promises:
Product quality standards are guaranteed. Our products have got ISO 9001 & CE international quality management system. They all produced with best advanced technology.We are proactive and we offer only products complying with top standards of quality and warranty.

Service Quality:
We are a highly qualified team: our employees have wide experience in this business and therefore understand our clients' real needs, being able to generate solutions to fully satisfy them. We believe that customer service is our key work, and consistently try to exceed clients' expectations.

Shanghai Shengjian Bearing Co., Ltd is the new sub-branch of Shandong Shengjian Bearing Co., Ltd, which is specilized in bearing design, R&D, manufacturing and sales for 15 years.

We are committed to manufacturing and providing bearings of high quality, high stability and long life span with advanced technology and strict qualtiy control system like heat treatment, grinding, assembly, testing to meet customers requirements.

Our production line: Deep groove ball bearings, Spherical ball bearing, Thin section bearing, Thrust ball bearing, Thrust roller bearing, Cylindrical roller bearing, Tapered roller bearing, Needle roller bearing, Rod end bearing, Angular contact ball bearing, etc.

Based on long-term elaborately research and advanced management concept, We carefully do every point, every drop for the customers to creat "win-win"

Our advantages:

1. Competitive price, high quality

2. OEM service

3. Timely delivery

4. Large stocks

5. ISO 9001: 2008

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
