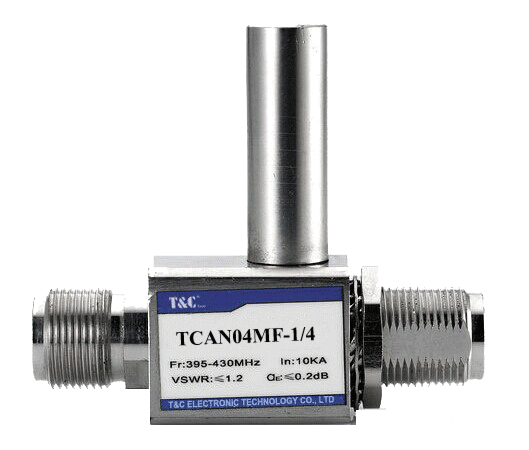

Antenna Lightning Protector/ Surge Protector/Surge Arrester (TCAN04MF-1/4)
Product Specifications
| Prod Model: |
TCAN04MF-1/4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Antenna Feeder Arrester |
| Structure: |
Zinc Oxide Arrester |
| Installation: |
Parallel Arrester |
| Brand: |
T&C Surge |
| Certification: |
CE, SGS, RoHS, ISO9001, TUV |
Product Description
Feature of lightning protector/SPD:
1. Heavy discharge current, No feeding current foe conventional type.
2. Low insertion loss, Small VSWR.
3. Low residual voltage.
4. Simple structure, easy installation and mainenance.
Application:
Antenna lightning protector is mainly used to protect the trransmitting & receiving system of RF signal such as satellite antenna, microwave, mobile communication and intercom system antena, radar antenna against lightning over-voltage, inducing over-voltage and static discharge.
|
I/O Mode |
In-Male |
In-Male |
In-Female |
Im-Female |
|
|
|
|
Out-Male |
Out-Female |
Out-Male |
Out-Female |
|
|
|
|
Code |
MM |
MF |
FM |
FF |
|
|
|
|
Connector Type |
DIN(7/16L29) |
N |
TNC |
SMA |
BNC |
F |
|
Code |
D |
N |
T |
S |
B |
F |
|
Type |
TCAD22MF70-1/4 |
TCAD25MF-1/4 |
TCAN04MF-1/4 |
TCAN25MF-1/4 |
|
|
|
|
Fr |
800-2200MHz |
824-2500MHz |
390-420MHz |
824-2500MHz |
|
|
|
|
Uc |
≤48V |
/ |
/ |
/ |
|
|
|
|
In |
10kA |
20kA |
20kA |
20kA |
|
|
|
|
Imax |
20kA |
30kA |
30kA |
30kA |
|
|
|
|
Up |
≤40V |
≤60V |
≤40V |
≤60V |
|
|
|
|
Insertion loss |
≤0.2dB |
≤0.2dB |
≤0.2dB |
≤0.2dB |
|
|
|
|
VSWR |
≤1.2 |
≤1.2 |
≤1.2 |
≤1.2 |
|
|
|
|
Connector |
DIN-J/K;TNC-K |
DIN-J/K |
N-J/K |
N-J/K |
|
|
|
|
APP. |
GSM,3G |
GSM,CDMA |
SCDMA, PHS |
GSM,CDMA |
|
|
|
|
Re.standard |
IEC61643-21; YD/T1542-2006 |
|
|
|
|
Environment |
Temperature -40~+70°C; Relative hunidity≤95%; Altitude≤3 km |
|
|
|
T&C ELECTRONIC TECHNOLOGY Co., Ltd is a leading supplier in the fields of lightning protection products and the solution of lightning protection, we commit ourselves to offer the comprehensive and reliable lightning protection products and solutions. We are engaged in research, design, manufacture and sale. with many years research and exploration, we have gain a leading edge in the skill of lose efficacy protection for lightning protection.
We have a performance test center for lightning protection. We could make a series of detection. Such as optical analysis at the material surface, impact in structural mechanics, analysis of insertion-withdrawal force, chip resistance ability, TOV faults, lightning impulse, trip test, pressure test, low-temperature test, voltage sag experiment, electrical fast transient test, low-frequency conduction, etc. We also could used for routine examination and simulation operation of actual operation environment.
The plant area is over than 3000 square meter of our factory in Shenzhen, China. We had introduced the advanced management system from home and abroad. Strict, reasonable management and supervision are applied to each link of the products, We adopt ERP management software, keep the temperature and moisture of deposit environment. We carry out comprehensive quality control and promote SPC (Statistical Process Control) gradually, and has passed ISO9001: 2000 International Quality Management Authentication, ISO4001: 2004 environment management System Authentication, TUV Safety Authentication, EU CE Safety authentication. All the products of lightning products have passed the RoHS test. We are positive promote the 5s management, the lead-free management has been overall implemented since 2006. At present, the production ability of plants has been over 100 million per year.
The Product Category includes power serie, signal seriesm antenna series and patented products and lightning counter. All the products have passed the test and attestation in correlative authority institution, and have the CPIC INSURANCE POLICY. Also, they have been widely used in many fields, such as telecommunication, meteorology, finance, videocast, electric power, aviation and aerospace, petroleum and petrochemical industries, military affairs, railway, etc.
