Product Specifications
| Prod Model: |
RC/6000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

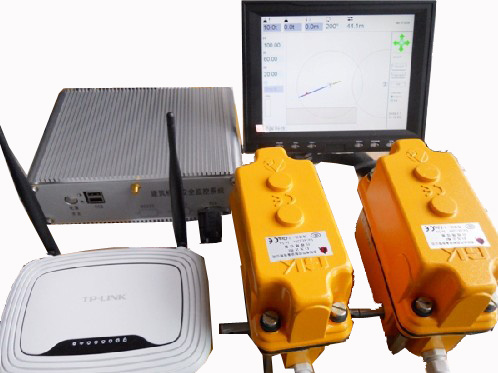

RC/6000 anti-collision and special zone protection system is to control and deal with two major construction site problems simultaneously by computer: Interference between tower cranes in a multi-crane site and the protection of no-go zones. The system can provide real time supervision and monitoring for up to 20 tower cranes in one single site, as well as saving records for tracking and checking.
The system contributes to productivity on site by allowing operators to work at maximum safe speed and optimizing the use of cranes. It continuously calculates the relative locations of jib-arms and trolleys of the tower crane within the network that might interfere with each other. Upon detecting that there are possibilities of tower cranes interfering or even colliding with another or the tower crane hook(or jib) overflying the no-go "sensitive"(protected)zones, such as streets, highways, schools, public areas and power lines etc, the system will give pre-alarm first until the operating system of the tower crane works, stopping the operation, thus keeping the possibilities of accidents from happening due to neglecting or misjudgment by the operator and guaranteeing safe operation of tower crane.
RC/6000 exceptionally stable and accurate magnetic angle sensor that is specially designed to meet the toughest tower crane environment. This magnetic angle sensor will accurately feedback the relative jib position to the tower crane for anti-collision path detection.
The LCD display monitor installed in the operator's cabin is able to intelligently detect its own module failure and also the operation status of the tower cranes in the same group.
Major benefit:
To enhance safety of working environment by:
--management of interference between tower cranes
--automatic prevention of collision when cranes over-flying each other
--automatic prevention of over-flying of sensitive or prohibited areas
Additional benefits:
--optimization of crane usage eg within a single loading area
--quick to install
--simple training for operators
--cost effective
--no negative impact on program
--applicable to almost all brands and types of tower cranes
System features:
1. Control panel using industrial computer
2. High-precision detection, error< ± 3%
3. Full-sealing cabinet, strong anti-interference
4. Indicating by figure and picture, clear and concise
5. LMI can be adjusted according to surrounding environment, like brightness and temperature
6. Simple operation
7. Applying to working under severe environment
8. Simple and easy installation.
|
Logo |
recen |
industrial personal computer(IPC) |
|
production |
|
Anti-collison, zone protection and load indicator |
|
function |
basic model |
functional type |
enhancement mode |
luffing crane |
enhancement mode |
|
model |
RC-6000A |
RC-6000B |
RC-6000C |
RC-6000D |
RC-6000E |
|
type |
Anti-collison and zone protection |
Anti-collison and zone protection& torque |
Anti-collison and zone protection& torque& height& wind speed |
Anti-collison and zone protection& torque& height& wind speed |
Anti-collison and zone protection& torque& height& wind speed |
|
indicating |
Actual load |
|
√ |
√ |
√ |
|
|
Rated load |
|
√ |
√ |
√ |
|
|
Trolley(melination) |
√ |
√ |
√ |
√ |
√ |
|
Slewing angle |
√ |
√ |
√ |
√ |
√ |
|
Hook height |
|
|
√ |
√ |
|
|
Wind speed |
|
|
√ |
|
|
|
control, output, communication |
trolley forward control(slow speed) |
|
|
|
√ |
|
|
Trolley forward control (slow/high speed) |
√ |
√ |
√ |
√ |
√ |
|
Trolley backward control(slow/high speed) |
√ |
√ |
√ |
√ |
√ |
|
Hook up rising |
|
√ |
√ |
√ |
|
Slewing basic control (left low speed,
right low spped, brake) |
√ |
√ |
√ |
√ |
√ |
Slewing enhancing control (left high
speed, right high. (speed, brake) |
|
|
√ |
√ |
|
|
wifi communication |
√ |
√ |
√ |
√ |
√ |
|
wireless date communication |
|
|
|
|
|
|
other function |
buzzer |
√ |
√ |
√ |
√ |
√ |
|
Alarming light |
√ |
√ |
√ |
√ |
√ |
|
USB data update |
|
|
|
|
|
|
Wireless data update |
√ |
√ |
√ |
√ |
√ |
|
multiple tower cranes networking |
√ |
√ |
√ |
√ |
√ |
Recen China-combing innovation and experience, convoy for the construction
Recen is the famous supplier of crane safety system, the products super quality is guaranteed by the advanced technology, as founders, david and enya apply the advance of France and Singapore systems, meeting the technology innovation challenges, volume production starting in 2008 under introduction of olympic committee, the intelligence update innovation movement is coming. Recen safety systems are into market from 2009, with super class mechanism and reasonable price, after discussion with distributors.
After five years development, RECEN grow heathly and strong, getting more and more good and positive feedback from clients, RECEN is brand name now. Sales figures continue to show signs of improvement. clients are interested to be our distributor and brand supporter.
We are working hard to improve our products details and service, be close to be perfect, satisfying the changing market demand. Now our prodcuts range include:
Tower crane and crane load moment indicator, anti-collision and zone protection. Mechanism for yongmao potain sym scm and so on, cradle load indicator and so on. This year we will be at 2014 Shanghai bauma with booth E2.189, TO SHOW OUR COMPANY AND OUR PRODUCTS TO U, TO THE WORLD
