Anti-Explosion XLPE Insulated PVC Sheathed Screened Armored Instrument Computer Cable
| Price: |
US $ 30/Meter |
| Trade Terms: |
FOB,CIF |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T |
Anti-Explosion XLPE Insulated PVC Sheathed Screened Armored Instrument Computer Cable
1. Application
This product is mainly used in petroleum and chemical departments of intrinsically safe equipment and system, it can not only simulate reliable transmission of weak signals, and the anti jamming performance is high, electric performance is stable, make sure of the accuracy of the transmitted signal parameters and safe operation of the control system.2. Product feature1) Cable outer sheath generally uses blue marked, recognition and makes the pipes easier to install.
2) On the process to improve the shielding effect, work to protect the safety of equipment.
3) Laying temperature of cable is not less than 0ºC;
4) Continuous admissible operating temperature of PVC cable is less than 70ºC,XLPE cable is less than 90ºC;
5) Admissible minimum bending radius of cable is not less than 6 times of cable's diameter. 3. Type & Description| No. | Type | Description |
| 1 | IAVPV | Cu core PVC insulated and sheathed, Cu wire braided individual screened control cable for essential safety circuit. |
| 2 | IAVPVP | Cu core PVC insulated and sheathed, Cu wire braided individual and overall screened control cable for essential safety circuit. |
| 3 | IAVP2V | Cu core PVC insulated and sheathed Cu/plastic combined film, individual screened control cable for essential safety circuit. |
| 4 | IAVP2VP2 | Cu core PVC insulated and sheathed, Cu/plastic combined film, individual and overall screened control cable for essential safety circuit. |
| 5 | IAVP3V | Cu core PVC insulated and sheathed, Al/plastic combined film, individual screened control cable for essential safety circuit. |
| 6 | IAVP3VP3 | Cu core PVC insulated and sheathed, Al/plastic combine film, individual and overall screened control cable for essential safety circuit. |
| 7 | IAVPVR | Cu core PVC insulated and sheathed, Cu wire braided screen, soft control cable for essential safety circuit. |
| 8 | IAVPVPR | Cu core PVC insulated and sheathed, Cu wire braided screen, individual and overall screened soft control cable for essential safety circuit. |
| 9 | IAYPV | Cu core PE insulated, PVC sheathed, Cu wire braided screen, individual screened control cable for essential safety circuit. |
| 10 | IAYPVP | Cu core PE insulated, PVC sheathed, Cu wire braided screen, individual and overall screened control cable for essential safety circuit. |
| 11 | IAYP2V | Cu core PE insulated, PVC sheathed, Cu/plastic combined film, individual screened control cable for essential safety circuit. |
| 12 | IAYP2VP2 | Cu core PE insulated, PVC sheathed, Cu/plastic combined film, individual and overall screened control cable for essential safety circuit. |
| 13 | IAYP3V | Cu core PE insulated, PVC sheathed, Al/plastic combine film, individual screened control cable for essential safety circuit. |
| 14 | IAYP3VP3 | Cu core PE insulated, PVC sheathed, Al/plastic combine film, individual and overall screened control cable for essential safety circuit. |
| 15 | IAYPVR | Cu core PE insulated, PVC sheathed, Cu wire braided individual screened soft control cable for essential safety circuit. |
| 16 | IAYPVPR | Cu core PE insulated, PVC sheathed, Cu wire braided individual and overall screened soft control cable for essential safety circuit. |
| 17 | IAYJPV | Cu core, polythene insulated, PVC sheathed, Cu wire braided individual screened control cable for essential safety circuit. |
| 18 | IAYJPVP | Cu core, polythene insulated, PVC sheathed, Cu wire braided individual and overall screened control cable for essential safety circuit. |
| 19 | IAYJP2V | Cu core, polythene insulated, PVC sheathed, Cu/plastic combined film, individual screened control cable for essential safety circuit. |
| 20 | IAYJP2VP2 | Cu core, polythene insulated, PVC sheathed, Cu/plastic combined film, individual and overall screened control cable for essential safety circuit. |
| 21 | IAYJP3V | Cu core XLPE insulated, PVC sheathed, Al/plastic combine film, individual screened control cable for essential safety circuit. |
| 22 | IAYJP3VP3 | Cu core XLPE insulated, PVC sheathed, Al/plastic combine film individual and overall screened control cable for essential safety circuit. |
| 23 | IAYJPVR | Cu core XLPE insulated, PVC sheathed, Cu wire braided individual screen, soft control cable for essential safety circuit. |
| 24 | IAYJPVPR | Cu core XLPE insulated, PVC sheathed, Cu wire braided individual and overall screened soft control cable for essential safety circuit. |
| Prod Model: |
IA-DJYJPVP22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Applied: |
Q/321084 Kla059-2004 |
| Rated Voltage: |
300/500V or 450/750V |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
IEC |
| Application: |
Anti-Explosion |
| Range Of Application: |
Anti-Explosion |
| Brand: |
Qiangling |

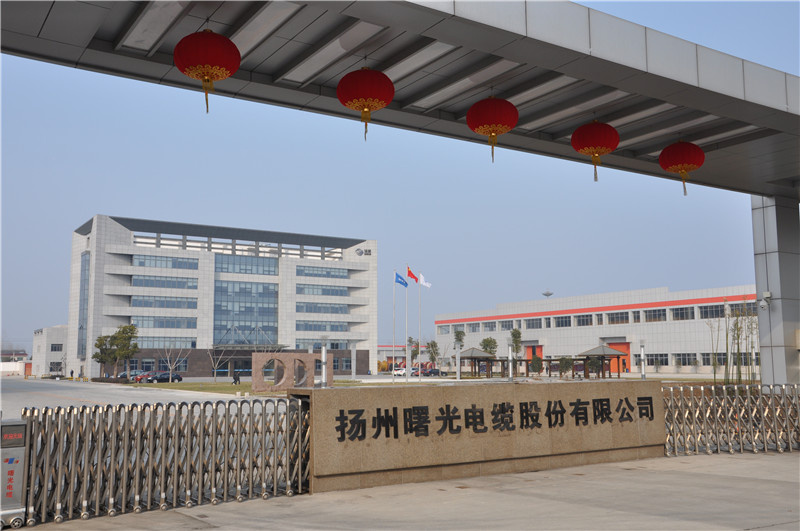

Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".
