Anti-Static Ricocel Sheet for Wave Solder Pallet

Name: Anti-Static Ricocel Sheet for Wave Solder Pallet
Brand: china-manufacturer-directory.com
SKU: 755330255
Availability: InStock
Rating: 4.9 (111 reviews)

Supplier:	Prior Plastic Co., Limited
Price:	US $ 15KG
Min Order:	100KGS
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PR-RIC-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

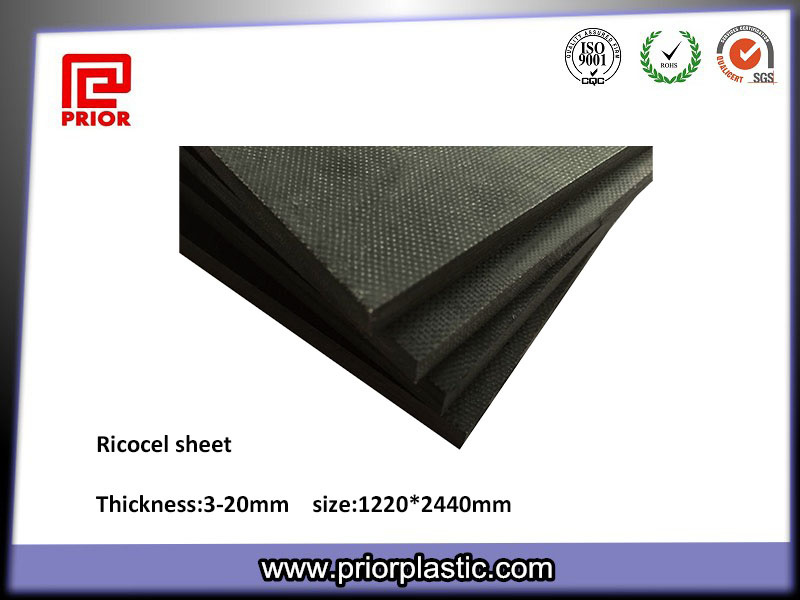

Thickness:	3/4/5/6/8/10/12/15/20/25/30 Mm
Size:	1220*2440mm
Density:	2.1g/cm3
FOB Port:	Shenzhen
Sample Availability:	Yes
Small Order:	Accepted
Lead Time:	3 Working Days
Service:	Cut-to-Size
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Maximum Voltage:	10KV~20KV

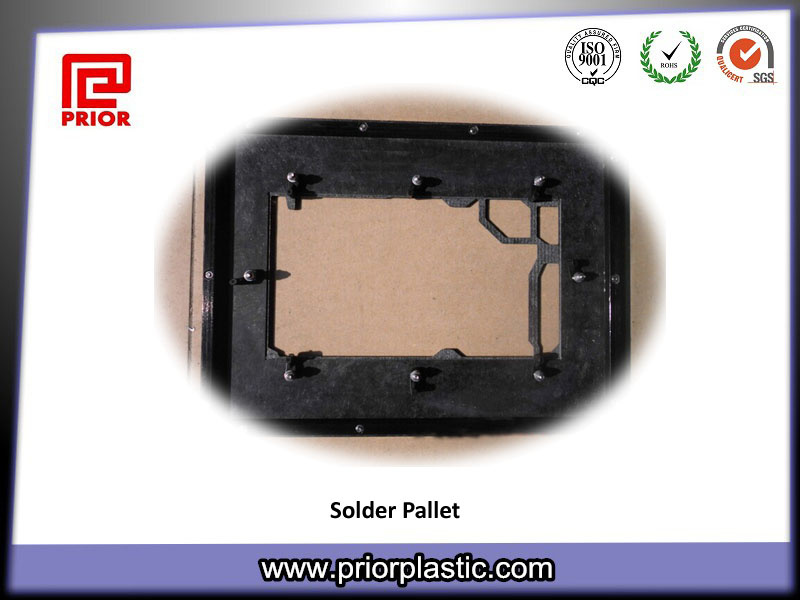

Application:	Solder Pallet
Thermal Rating:	300°c
Color:	Black
Brand:	Prior

Product Description

Anti-Static Ricocel Sheet for Wave Solder Pallet

Comparison between Durostone and Ricocel

1.Anti-static resistance value

Alternative Ricocel	Alternative Durostone
10^6~10^9	10^5~10^9

2. Thermal warpage

From the figure below, the 24 hour, 280°C continuous heating proves shows that ricocel has less deformation, material size :3x500x500mm

3. Thin wall tooling yielding rate

Alternative Ricocel	Alternative Durostone
99.48%	96.53%

During the tooling process, the thin wall yielding rate will affect the carrier yield rate and production line life. Thus alternative can provide better performance and longer life.

4. Tool wear

With the same tooling conditions, alternative Ricocel can reduce more than 30% of tool wear.

Technical data sheet

Name	Ricocel ES-3261A Sheet for SMT Pallet/Wave Solder Pallet
Grade	Anti-static
Color	Black
Density(g/cm³)	2.1±0.5
Flexural Strength 3 point support⊥(Mpa)	470
Water Absorption(%)	<0.1
Coefficient of linear Expansion(10^-⁶/k)	11
Thermal Conductivity (w/m⁰k)	0.4
Maximum Operating Temperature(ºC) 10-20seconds	360
Standard Operating Temperature(ºC)	300
Life Cycles(Times)	>20000
Surface Resistivity(Ω)	10^6-10^9
Thermal Capacity(J/kgk)	960
Modulus of Elasticity (Mpa)	20000
Chemical Resistance	Good
Thickness Available(mm)	3,4,5,6,8,10,12,other thickness available on request
Thickness Tolerance(mm)	±0.1
Flatness Tolerance (For a panel size of 300*300	±0.1
Parallelism(mm)	±0.1
Sheet Size (mm)	1220*2440mm

Prior Plastic Co., Limited is dedicated in manufacturing semi-finished plastic sheets&plastic rods. Most of our products have been approved by SGS&RoHS, our mission is to deliver the right product, with right price, at right time. Our product covers

Engineering Plastics

POM Sheet, POM Rod, Nylon Sheet, Nylon Rod, PTFE Sheet, PTFE Rod, UHMW PE Sheet, UHMW PE Rod, PC Sheet, PC Rod, PVDF Sheet, PVDF Rod

General Plastics

ABS Sheet, ABS Rod, HDPE Sheet, HDPE Rod, PP Sheet, PP Rod

Insulation Materials

Bakelite Sheet, Epoxy Sheet, Epoxy Rod, Phenolic Sheet, Phenolic Rod, Durostone CAS761 Sheet, Ricocel ES-3261A Sheet

Machined Parts: As per drawings

Besides the standard profiles, we can offer OEM/ODM service. We can not only customize according to your drawings, but also design the drawings for you.

Welcome to send inquiries to us at any time, you will be replied within 12 hours! We look forward to working together with you to set up a bright future.
