Product Specifications
| Prod Model: |
DDSF155 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
110V/220V/230V/240V Customized Data |
| Rated Frequency: |
50/60Hz |
| Current: |
5(30)a /5(40)a /5(60)a /10(40)a /10(60)a /10(8 |
| Power Consumption: |
≤0.5W |
| Pulse Constant(Imp/Kwh): |
6400, 3200, 2400, 1600, 1200, 800, 400, 200 |
| Lifetime: |
More Than 10 Years |
| Display Method: |
LCD/LED |
| Communication Method: |
RS485, Infrared |
| Size: |
135mm*108mm*60mm |
| Accuracy Class: |
1.0, 2.0 |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Energy Meter |
Product Description

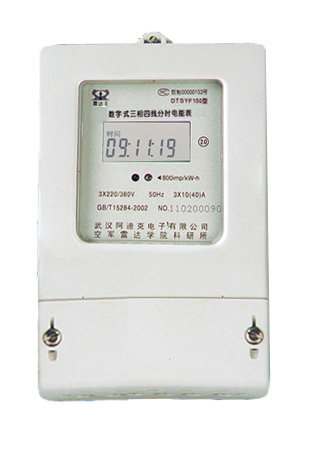

This Meter is used to measure 50Hz AC active energy and the power flow of peak time, flat time and off-peak time. Its functions comply with the corresponding technical requirements for the Class 1 Single-phase Watt-hour Meter and its data communication protocols obey the IEC standards.The features of this meter are: long service life, high accuracy class, high overload, low power consumption and small size.
Total Energy
A. Measure total amount of forward active, reverse active energy and restore the data, which are indicated by LED
B. The screen of LCD will display 'reverse' when power reverse.
C. Measure reverse active energy separately
Measuring multi-tariff in different time internals
The meter has 4 kinds of tariff defined as sharp, peak, shoulder and off-peak. The meter can be programmed as single tariff, double tariff and three-tariff or four-tariff. During each tariff interval, the meter can measure forward/reverse active energy.
Tariff and Time Intervals
The meter has 12 programmable interval tables, of which each can set up to 12 intervals assharp, peak, shoulder and off-peak during 24 hours.
The minimum unit of each tariff interval can be set up as 1 minute.
The meter can automatically switch calendar, time and leap year.
Measuring real- time powerMeasure real-time power through pulse constant and pulse interval.
The function of data-transfer
The meter can transfer data automatically on the reading date( 1st to 27th are programmable ).That is the transfer of total forward/ reverse active energy.The meter can store the data in the previous 12 months and store the data for 10 years at power failing.
Recording reverse energy
The meter can record the total time of reverse energy and the last time period of reverse energy.
Meter programmingThe meter can restore the times of programming and the latest programming time.
Remote control function
The meter has the function of remote control through RS-485.
Item | Specifications |
| Standard | IEC 62052-11 2003
IEC 62053-21 2003
IEC 62056-21
GB/T17215.321 2008 (CHINESE) |
| Accuracy | Class 1.0 , 2.0 |
| Rated Voltage(V) | 220V ~ 240V AC |
| Operation Voltage Range | 80%Un ~ 120%Un |
| Nominal Current(A) | 5(30)A /5(40)A /5(60)A /10(40)A /10(60)A /10(80)A |
| Rated Frequency | 50Hz/ 60 Hz |
| Frequency Range | 50Hz±5%\60Hz±5% |
| Start Current | ≤10mA, ≤20mA |
| Max. Computation Current | 90A |
| Meter Constant | 800imp/kwh, 1600imp/kwh |
| Power Consumption | Voltage circuit: <1.0W or <4.0VA,
Current circuit: <1VA |
| Pulse Output Method | LED, optoelectronic isolating |
Wuhan Radarking Electronics Corp. is a high-tech corporation which established in 2002. As professional manufacture in meters, our mainly products including: Full Digital IC Card Prepayment Electronic Meters, Smart Electronic Meters, IC Card Prepayment Water Meters, Gas Meters as well as Meter (network) Reading System. We are one of the few manufacturers in Hubei Province whose annual production of electronic meters and water meters can be up to 2.4 million sets.
Employee: There are more than 200 employees including 50 technicians, 10 senior technical staff and 70 employees who have already got college degree, 30 of them obtained metrological verification certificate. Production and technical staff all undergo a rigorous pre-service training, who are skilled and have a strong sense of quality.
Technology: We have a R & D group of 20 persons (About 10% of the company's employees).
Equipment: We have 260 sets of production and testing equipments, including 7 production lines, more than 20 units of the calibration device such as wave soldering machine, reflow soldering machine, automatic placement machine, plug-in assembly lines, assembly lines, packing lines and etc, which have all meet the production requirement.
Material: Materials are in strict accordance with the requirements of the meters and the procurement of national standards, we have already established a qualified supplier evaluation system, and developed a series of test standard. All the materials have to pass strict test before entering into factory, and then be used in production. Measures have been taken to prevent damp and static electricity to ensure the normal performance of the raw materials.
Craft: To make a variety of electronic meters in accordance with the production process, we have developed process documents, to ensure the quality of the products.
Test: We have electronic meter laboratory and full range of test equipments, such as EMC Equipment (ESD, EFTB, SURGE, RF, Attenuation Oscillasion Impulse, DIP, Impulse Current, Pulsed Voltage and etc), Environmental Test Equipment (Alternating Temperature Humidity Test Chamber, Dust Test Devices, Waterproof Test Device, Shock Test Device, Vibration Test Device and etc), R&D Testing Equipment. We make a variety of electronic meters in accordance with the test and develop our test documents to ensure the quality of the products.
Environment: Our production base covers an area of 30 acres, and self-building workshop covers an area of 7000 square meters, production and storage area covers more than 5000 square meters.
Management: We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS.
