Product Specifications
| Prod Model: |
CV5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indication: |
2 LED 1 Buzzer |
| Power: |
9V DC (9-12V), <150mA |
| Housing: |
IP65 Outdoor Use |
| Interface: |
RS232, Wiegand / Clock & Data / ABA |
| RFID Frequency: |
13.56MHz in Read / Write Mode |
| Support: |
ISO14443A Mifare |
Product Description
CV5XXX is access control door reader, it's a contactless read/write or read only (UID) device that supports ISO14443A/B, ISO15693, Mifare.
It features compatibility for most controllers on the market, and it has unique multi-format interface.
Advantages:
1. Vandal resistant for harsh environment (0F/1F casing)
2.45cm Pigtail or plug connector with screw terminal is available on request
3. Build-in TCP/IP (CV5XXX-X-2B)
4. Feature with relay on request (CV5XXX-X-2B)
5.4 bit or 8 bit Burst output format
6. Can be installed on metal surface
7. Indoor and Outdoor (IP65, Electric epoxy potted) version for selection
8. Hardware Watchdog and voltage monitoring enhance the system reliability
9. Firmware can be changed to meet customer's request
10. Built-in memory to enhance security in transaction
11. Supporting multi block transfer
12. Auto PPS (PICC)
13. Authentication key available on request.
Readers and cards require matching keys to function. All RF data transmission between the card and reader is encrypted by using a secure algorithm. The key management system reduces the risk of compromised data or duplicated cards.
Suitable Applications:
Access Control
Time Attendance
Personal Identification
E-ticket
E-payment

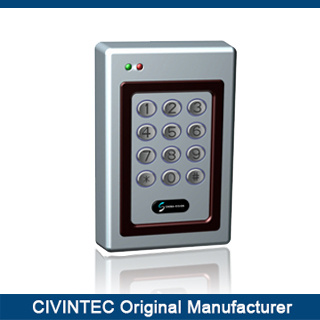

| Model | CV5620A |
| Standard | 13.56 MHz ISO 14443A |
| Supported Cards | Read/Write :
MIFARE® Classic 1K, MIFARE® Classic 4K, MIFARE Ultralight ® , MIFARE® Pro/Prox,
MIFARE® DESFire ® D40, MIFARE® DESFire® EV1 (2K, 4K, 8K),ISO14443A compatible cards |
| Power Supply | 9V DC (9-12V), <150mA |
| Interface | TCP/IP,RS232,RS485,Wiegand 26-58 / Clock & Data 8, 10 / ABA1, 2, |
| Reading output format | Wiegand 26-58 / Clock & Data 8,10(3 byte, 5byte, HEX, DEC) / ABA1, 2 |
| Keypad output format | 4bit, 8bit, Wiegand 26-58 / Clock & Data 8, 10 / ABA1, 2 |
| Keypad | 3*4 keypad with backlight |
| Indicators | 2 LEDs and Buzzer controlled by three-wires |
| Connection | 45cm Pigtail or plug connector with screw terminal is available
on request |
| Reading Distance | 50 - 100mm (depending on antenna, transponder) |
| Writing Distance | 30 - 50mm (depending on antenna, transponder) |
| Operating Temperature | -20°C ~ +60°C / -4°F ~ +140°F |
| Storage Temperature | -20°C ~ +60°C / -4°F ~ +140°F |
| Operating Humidity | 0 ~ 95% relative humidity non-condensing |
| Housing Material | Zn-Fe alloy for 0F/1F housing |
| Protection Class | IP65, electric epoxy potted for harsh environment |
CIVINTEC Global is the world leading R&D and manufacturer of reader devices, terminals and systems, specialized in NFC technology, 13.56MHz contactless smart card, biometric and embedded OS technologies. CIVINTEC Global is an innovative product supplier of smart card and security solutions for various markets which include physical access control, time attendance, club membership, personal identification, public transportation, e-payment etc.
Based on our strong and experienced R&D team which is composed of creative and motivated professionals, Civintec global is always dedicated to provide market oriented and reliable high-tech products to benefit our customers.
CIVINTEC Global is committed to enhancing customer value by running our Partner Program since 2006. Till today, we become the main supplier of OEMs, system integrators, application developers and provide products from R&D to production around the world and is proud of being the supplier of some stock listed enterprises. We are proud to be working with a worldwide network of partners from various market segments to achieve win-win business mode.
Involved technologie
ISO18092 Near Field Communication NFC
RF contactless Smart Card technology: 13.56MHz ISO14443A, ISO14443B, ISO15693, Felica
ISO7816 contact technology
Biometric
Wireless Communication – WiFi, GPRS, 3G
Embedded OS with Professional Software
Product Range
13.56MHz&NFC OEM module/readers
Access Control & T/A terminals and systems
Handheld terminals and systems
Multi-purpose Terminals and systems
Biometric terminal and systems
Embedded OS with Professional Software
CIVINTEC Global has built strong cooperation with several global market leaders, including NXP, HID Global, LEGIC, Infineon, TI, Inside, etc.
