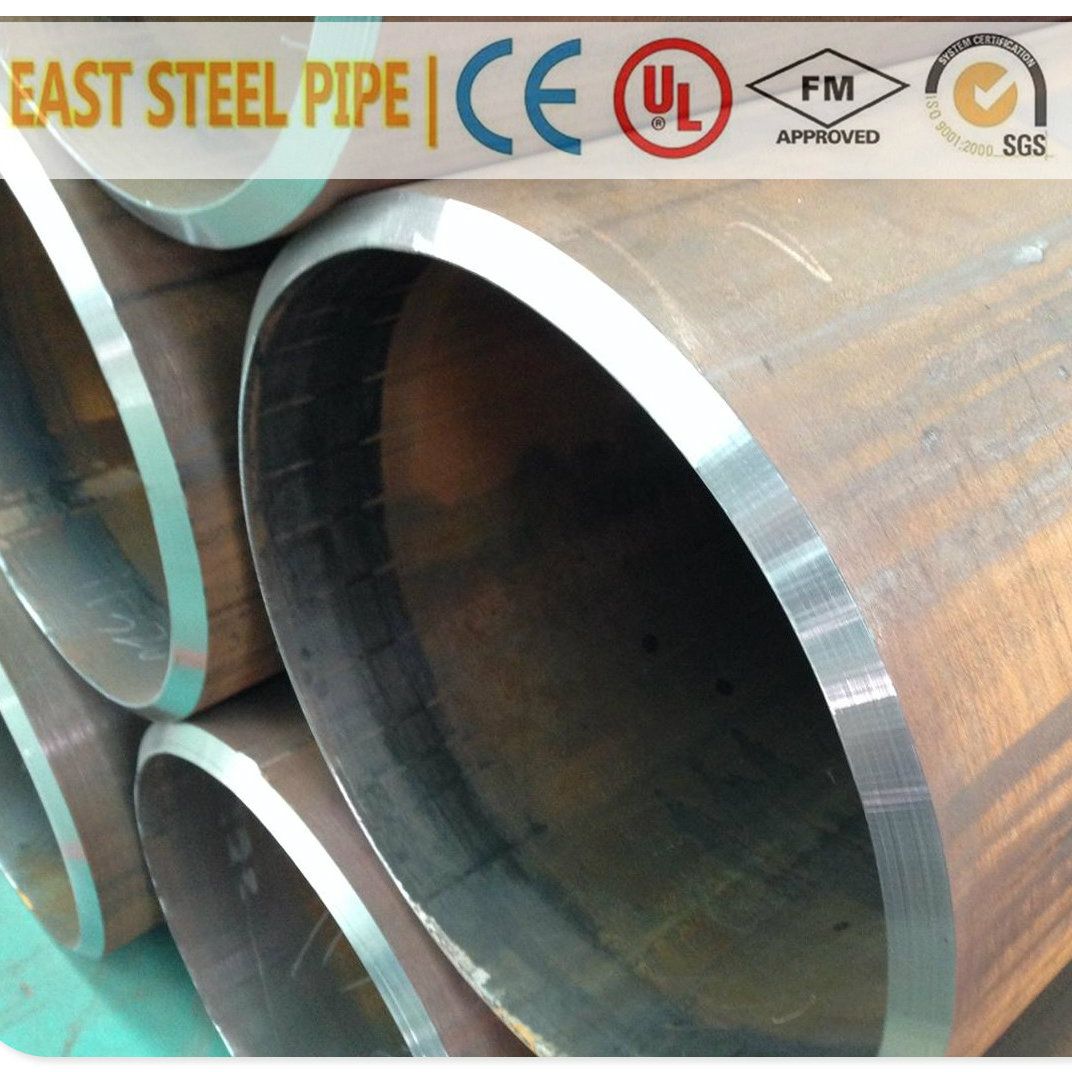

API 5L X40-X70 LSAW Welded Steel Pipe

Product Specifications

Prod Model:	lsaw
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Grade:	X40-X70
O.D.:	219mm-1820mm
W.T.:	5.0-50mm
Length:	6-18m
Type:	Welded
Certification:	CE
Application:	Hydraulic Pipe
Section Shape:	Round
Usage:	Thermal Equipment
Technique:	SAW
Surface Treatment:	Bare, Bare/Oil Varnished /Anti-Corrosion Coating

Product Description

API 5L X40-X70 LSAW Welded Steel Pipe


Process:
LSAW (Longitudinal Submerge-arc Welded) UO(UOE), RB(RBE), JCO(JCOE)
DSAW (Double Submerged arc welded)

Steel Grade:
BS: 1387, EN10217: S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST52
ASTM A 53: Gr. A, Gr B, Gr C, Gr. D
API 5L: A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
GB/T3091, SY/T5037, SY/T 5040, CJ/T 3022: Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8

Size:
O. D: 219mm-1820mm
W. T. 5.0mm-50mm
Length: 6mtr-18mtr

End: Square ends (straight cut, saw cut, and torch cut). Or beveled for welding, beveled,

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)

Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2, 000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
Strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Sign Size	O.D. (mm)	Wall Thickness (mm)	Nominal weight (kg/m)	Test Pressure (Mpa)
				L245	L290	L320	L360	L390	L415	L450	L285	L555
20	508	6.4	79.17	3.7	6.6	7.3	8.2	8.8	9.4	10.2	11.0	12.6
	508	7.1	87.71	4.1	7.3	8.1	9.1	9.8	10.4	11.3	12.2	14.0
	508	7.9	97.43	4.6	8.1	9.0	10.1	10.9	11.6	12.6	13.6	15.5
	508	8.7	107.13	5.0	8.9	9.9	11.1	12.0	12.8	13.9	15.0	17.1
	508	10.3	126.42	6.0	10.6	11.7	13.1	14.2	15.1	16.4	17.7	20.3
22	559	7.1	96.64	3.7	6.6	7.3	8.2	8.9	9.5	10.3	11.1	12.7
	559	7.9	107.37	4.2	7.4	8.1	9.2	9.9	10.6	11.4	12.3	14.1
	559	8.7	118.07	4.6	8.1	9.0	10.1	10.9	11.6	12.6	13.6	15.5
	559	10.3	139.38	5.4	9.6	10.6	11.9	12.9	13.8	14.9	16.1	18.4
24	610	7.1	105.57	3.5	6.1	6.7	7.5	8.2	8.7	9.4	10.2	11.6
	610	7.9	117.30	3.8	6.8	7.5	8.4	9.1	9.7	10.5	11.3	12.9
	610	8.7	129.01	4.2	7.4	8.2	9.2	10.0	10.7	11.6	12.5	14.2
	610	10.3	152.33	4.9	8.8	9.8	11.0	11.9	12.6	13.7	14.8	16.9
26	660	7.1	114.32	3.2	5.6	6.2	7.0	7.6	8.0	8.7	9.4	10.7
	660	7.9	127.05	3.5	6.2	6.9	7.8	8.4	8.9	9.7	10.4	12.0
	660	8.7	139.74	3.90	6.9	7.6	8.5	9.3	9.8	10.7	11.5	13.2
	660	10.3	165.03	4.6	8.1	9.0	10.1	11.0	11.7	12.6	13.6	15.6
28	711	7.9	136.98	3.3	5.8	6.4	7.2	7.8	8.3	9.0	9.7	11.1
	711	8.7	150.68	3.6	6.4	7.0	7.9	8.6	9.1	9.9	10.7	12.2
	711	9.5	164.35	3.9	7.0	7.7	8.7	9.4	10.0	10.8	11.7	13.3
	711	10.3	177.99	4.3	7.6	8.3	9.4	10.2	10.8	11.7	12.6	14.5
30	762	7.9	146.92	3.0	5.4	6.0	6.7	7.3	7.7	8.4	9.1	11.1
	762	8.7	161.62	3.4	6.0	6.6	7.4	8.0	8.5	9.2	10.0	11.4
	762	9.5	176.30	3.7	6.5	7.2	8.1	8.8	9.3	10.1	10.9	12.5
	762	10.3	190.94	4.0	7.1	7.8	8.8	9.5	10.1	10.9	11.8	13.5
32	813	7.9	156.85	2.9	5.1	5.6	6.3	6.8	7.3	7.9	8.5	9.7
	813	8.7	172.57	3.1	5.6	6.2	6.9	7.5	8.0	8.7	9.3	10.7
	813	10.3	203.90	3.7	6.6	7.3	8.2	8.9	9.5	10.3	11.1	12.7
	813	12.7	250.65	4.6	8.2	9.0	10.1	11.0	11.7	12.7	13.6	15.6
36	914	8.7	194.24	2.8	5.0	5.5	6.2	6.7	7.1	7.7	8.3	9.5
	914	9.5	211.91	3.1	5.4	6.0	6.7	7.3	7.8	8.4	9.1	10.7
	914	10.3	229.55	3.3	5.9	6.5	7.3	7.9	8.4	9.1	9.8	11.3
	914	12.7	282.29	4.1	7.3	8.0	9.0	9.8	10.4	11.3	12.1	13.9
40	1016	9.5	235.81	2.7	4.9	5.4	6.1	6.6	7.0	7.6	8.2	9.3
	1016	12.7	314.23	3.7	6.5	7.2	8.1	8.8	9.3	10.1	10.9	12.5
	1016	14.3	353.26	4.1	7.3	8.1	9.1	9.9	10.5	11.4	12.3	14.1
	1016	17.5	430.90	5.0	9.0	9.8	11.1	12.0	12.8	13.9	15.0	17.1
44	1118	9.5	259.70	2.5	4.4	4.9	5.5	6.0	6.3	6.9	7.4	8.5
	1118	10.3	281.37	2.7	4.8	5.3	6.0	6.5	6.9	7.5	8.0	9.2
	1118	12.7	346.18	3.3	5.9	6.5	7.4	8.0	8.5	9.2	9.9	11.3
	1118	14.3	389.23	3.8	6.7	7.4	8.3	9.0	9.6	10.4	11.2	12.8
	1118	20.6	557.47	5.3	9.6	10.5	11.9	12.8	13.7	14.9	16.0	18.3
48	1219	10.3	307.03	2.5	4.4	4.9	5.5	5.9	6.3	6.8	7.4	8.4
	1219	12.7	377.81	3.1	5.4	6.0	6.8	7.3	7.8	8.4	9.1	10.4
	1219	14.3	424.85	3.4	6.1	6.8	7.6	8.2	8.8	9.5	10.2	11.7
	1219	20.6	608.75	4.8	8.8	9.6	10.9	11.7	12.6	13.6	14.7	16.8
52	1321	10.3	332.94	2.3	4.1	4.5	5.1	5.5	5.8	6.3	6.8	7.8
	1321	12.7	409.76	2.8	5.0	5.5	6.2	6.7	7.2	7.8	8.4	9.6
	1321	14.3	460.82	3.2	5.7	6.2	7.0	7.6	8.1	8.8	9.5	10.8
	1321	22.2	711.30	4.9	8.8	9.6	10.9	11.7	12.5	13.6	14.6	16.7
