API Standard Drill Pipe for Oilwell

Name: API Standard Drill Pipe for Oilwell
Brand: China-Manufacturer-Directory.com
SKU: 684208312
Availability: InStock
Rating: 4.8 (25 reviews)

Supplier:	Puyang Zhongshi Group Co., Ltd.
Price:	US $ 800/Ton
Min Order:	10/Ton
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	3 1/2"
Markets:	North America,Southeast Asia,Africa,Mid East,Eastern Asia
Length:	R2
Grade:	G
Thread:	Nc
Size:	5 1/2"
Grade2:	S105
Type:	Seamless
Certification:	API
Application:	Drill Pipe
Section Shape:	Round
Surface Treatment:	Copper Coated
Technique:	Hot Rolled

Product Description

APi standard Drill pipe for oilwell
Specifications 1:

--API 5DP standard
--Good quality raw material of seamless pipe
--All self made procedure
--Factory with I/E right

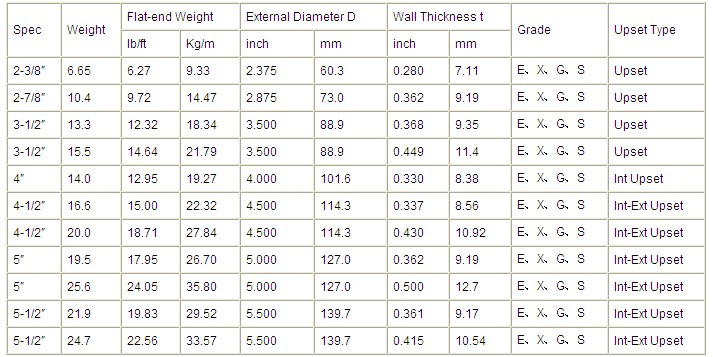

Size			Nominal mass Lb/ft	Calculated weight Wpe		Grade	Wall thickness		Upset ends (See note) for weld-on tool joint
in.	mm		Nominal mass Lb/ft	lb/ft	kg/m	Grade	in.	mm	Upset ends (See note) for weld-on tool joint
2 3/8	60.3		6.65	6.26	9.32	E,X,G,S	0.280	7.11	EU
2 7/8	73.0		10.4	9.72	14.48	E,X,G,S	0.362	9.19	EU , IU
3 1/2	88.9		9.50	8.81	13.12	E	0.254	6.45	EU , IU
3 1/2	88.9		13.30	12.31	18.34	E,X,G,S	0.368	9.35	EU , IU
3 1/2	88.9		15.50	14.63	21.79	E	0.449	11.40	EU , IU
3 1/2	88.9		15.50	14.63	21.79	X,G,S	0.449	11.40	EU , IEU
4	101.6		14.00	12.93	19.26	E,X,G,S	0.330	8.38	EU , IU
4 1/2	114.3		13.75	12.24	18.23	E	0.271	6.88	EU , IU
4 1/2	114.3		16.60	14.98	22.31	E,X,G,S	0.337	8.56	EU , IEU
4 1/2	114.3		20.00	18.69	27.84	E,X,G,S	0.430	10.92	EU , IEU
5	127.0		16.25	14.87	22.15	X,G,S	0.296	7.52	IU
5	127.0		19.50	17.93	26.71	E	0.362	9.19	IEU
5	127.0		19.50	17.93	26.71	X,G,S	0.362	9.19	EU , IEU
5	127.0		25.60	24.03	35.79	E	0.500	12.70	IEU
5	127.0		25.60	24.03	35.79	X,G,S	0.500	12.70	EU , IEU
5 1/2	139.7		21.90	19.81	29.51	E,X,G,S	0.361	9.17	IEU
5 1/2	139.7		24.70	22.54	33.57	E,X,G,S	0.415	10.54	IEU
Note:		EU - External upset IU - Internal upset

Specifications 2:

We regard customer satisfaction and market cultivation as its central job of service and provides first class product and personalized service. Senior technical engineers and production backbones go deeply into the marker for investigation. And tap the potential demands of customers at the first time. We provide customers with perfect solutions.
