Product Specifications
| Prod Model: |
FIB-100WH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Refrigerate |
| Cooling Method: |
Indirect Cooling |
| Compressor: |
Bitzer/Bock/Copeland |
| Capacity: |
10000kgs |
| Certification: |
CCC |
| Ice Shape: |
Ice Block |
| Condition: |
New |
Product Description

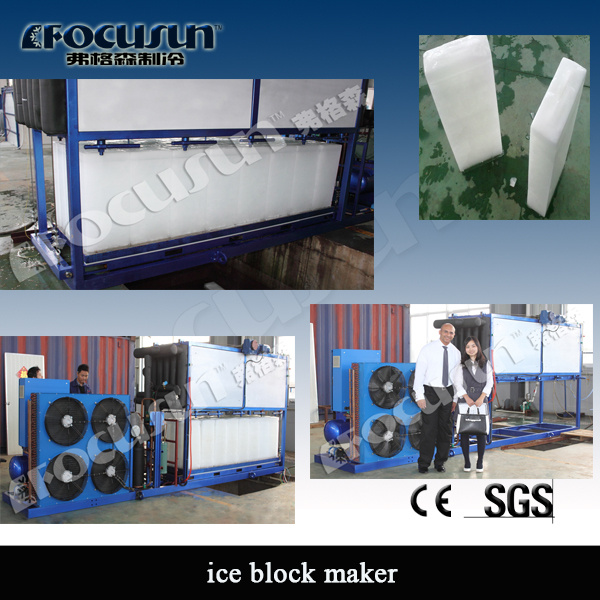

Containerized Direct System Ice Block Machine
10000kgs/24hrs
FocusunTM Block Ice Machine is manufactured with the latest technology, which is quite different from the traditional block ice machine. The traditional model is quite complicated and needs technicians from the factory to install all units on the spot, which is not only expensive in cost but electricity-consumed as well.
Focusun evaporator is made of freezing aluminum alloy. Refrigerant is evaporated in the middle of the aluminum plate. Water can be frozen into ice within a very short time. This Block Ice Machine has modular shape with features of plug and play ready system with tropical condition & coastal climate adjustment tests, so it's easy to install and energy efficient.
Direct refrigeration block ice machine
In order to fulfill the demands of ice for human consumption or the food grade ice, FocusunTM has been practicing in the direct refrigeration technology for years.
Differed from the brine refrigeration, the direct refrigeration block ice machine is producing ice blocks in the aluminium evaporator. The material of aluminium is requirements in many countries. In addition to its hygienic advantage, the expectancy of usage can be extended due to its property of rust resistance.
FocusunTM has also developed a reliable ice distributing system. With high degree customizability, we offer multiple solutions to clients with diverse needs.
Equipment Features:
Pneumatic crawler conveying system, maximizing the protection to the ice blocks during harvesting.
Aerospace technology level special aluminium, outstanding durability, totally compliant with the food hygienic standards.
Bitzer compressor offers abundant compressing power and guarantees producing ice in the shortest period with the least energy consumption.
Proven performance secured by world top brands, Siemens, Schneider, Danfossetc.
Module design, the whole set consists of machine unit module, evaporator module, and cooling tower module; easy to ship and install; evaporator module can contain several parts in terms of capacity
Direct refrigeration block ice machine technical parameter
Model | Capacity | Refrigerant | Electricity consumption | Installment power | Operating weight | Dimension |
|---|
| -- | Ton/D | -- | Kw | Kw | Kg | mm |
| FIB-05 | 0.5 | R22/R404A | 2.055 | 2.5 | 560 | 1500×800×1800 |
| FIB-10 | 1.0 | R22/R404A | 4.850 | 6.0 | 960 | 1800×1200×2000 |
| FIB-15 | 1.5 | R22/R404A | 6.940 | 8.5 | 1260 | 2800×1200×2000 |
| FIB-20 | 2.0 | R22/R404A | 8.160 | 10.0 | 1460 | 2800×1400×2000 |
| FIB-25 | 2.5 | R22/R404A | 9.510 | 12.0 | 1660 | 3200×1400×2000 |
| FIB-30 | 3.0 | R22/R404A | 11.520 | 14.0 | 2180 | 3600×1400×2200 |
| FIB-35 | 3.5 | R22/R404A | 14.850 | 18.0 | 2100 | 3600×1650×2000 |
| FIB-50 | 5.0 | R22/R404A | 20.900 | 25.0 | Unit | L1400×W1000×H1250 |
| Evaporator | L4800×W1000×H2250 |
| Cooling tower | 1380×H2170 |
| FIB-100 | 10.0 | R22/R404A | 33.980 | 50.0 | Unit:1680 | L1800×W1000×H1450 |
Evaporator:
2860×2 | L4800×W1000×H2250 |
Cooling tower:
670 | 2000×H2410 |
| FIB-150 | 15.0 | R22/R404A | 59.150 | 75.0 | Unit:2160 | L2000×W1200×H1600 |
Evaporator:
2860×3 | L4800×W1000×H2250 |
| Cooling tower:1120 | 2175×H2565 |
| FIB-200 | 20.0 | R22/R404A | 85.550 | 105.0 | Unit:2896 | L2400×W1600×H1800 |
Evaporator:
2860×4 | L4800×W1000×H2250 |
| Cooling tower:1300 | 2650×H2645 |
| FIB-250 | 25.0 | R22/R404A | 94.050 | 120.0 | Unit:3260 | L3200×W1800×H2200 |
Evaporator:
2860×5 | L4800×W1000×H2250 |
Cooling tower:
1630 | 3050×H2780 |
| FIB-300 | 30.0 | R22/R404A | 113.550 | 150.0 | Unit:3500 | L3000×W2000×H2200 |
Evaporator:
2860×6 | L4800×W1000×H2250 |
Cooling tower:
2730 | 3300×H2785 |
| Standard condition: Dry bulb temperature is 33 ºC and water inlet temperature is 20ºC. |
Focusun Containerized Direct Refrigeration Block Ice Plant
In order to apply Focusun's advanced ice making technology in the most tough, critical condition, Focusun block ice making system has adopted the containerized concept in design to address issues like extreme temperature, complicated installation and mobility of ice making plant.
If you don't have a workshop but want to start your ice making business, you can consider about our containerized ice machine, a mobile plant that you can make and storage ice.
Salient features:
1. Cost-saving
There is no need for workshop so it saves the initial construction investment, labor cost and time a lot.
Besides, the whole system is completely installed in the container, fully automatic so that very minor labor is needed for both operation and installation.
2. Easy installation
Pre-assembled and well-tested ice plants installed in 20ft or 40ft containers are ready for connection to water and electricity. No complicated on-site installation work is needed at all. Once filled with refrigerant, the machine can start immediately after being connected to water and electricity.
3. Movable
Focusun containerized ice plant is easily transportable by truck or rail, making it particularly useful in remote locations, or those that need to move ice making facilities from one project site to another.
4. Convenient transportation
The cargo container is suitable for ocean container shipping and it saves the operation of packing into or taking out the ice machine from the container. Thus it prevents the ice plant from getting damaged during the long-distance transportation.
5. High-quality cargo container
The block ice machine is installed into brand new ISO certified standard ocean freight container. With decent modification to reinforce the structure, the container is ready to handle heavy machines in operating, lifting and transporting. PVC coated cargo container makes sure the ice machine inside is sheltered form the wind and rain.
6. Stable operating environment
The container provides a relatively closed operating environment and maintains the appropriate inside temperature. It ensures the stable and efficient ice making process.
7. Compact & Space-saving
All equipments are installed in the container compactly, making the most of the internal space of the container. Compared with installing the non-containerized ice making machine on the workshop, the containerized ice maker saves much space. It only takes about 13.2m2(20ft container) and 26.4m2(40ft container) totally.
