Product Specifications
| Prod Model: |
FIB-50B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Daily Capacity: |
5000kgs |
| Condensation Methods: |
Air Cooling/Water Cooling |
| Compressor: |
Bitzer/Bock/Copeland |
| Certification: |
CCC |
| Ice Shape: |
Ice Block |
| Condition: |
New |
Product Description
Focusun Containerized Brine System Block Ice MachineDaily capacity: 5000 KG
Why containerized?
Generally, working conditions are crucial for maintaining the stability and performance of an ice machine. Being containerized, the ice machine can work in a relatively isolated environment, where the ambient temperature can be controlled at 20ºC-25ºC.And all this facilitate the ice making process.
The whole container has been specially treated and reinforced. It is also a perfect protection from the physical impact to the machine, and keeps the dust outside.
Both the brine refrigerating block ice machine and the direct refrigerating block ice machine are required to be fixed onto the plant ground. And it will become a trouble when you need to move the machine elsewhere, but that will never happen to a containerized one.
Your options:
Focusun offers the containerized ice blockers in both 20'HQ model and 40'HQ model.

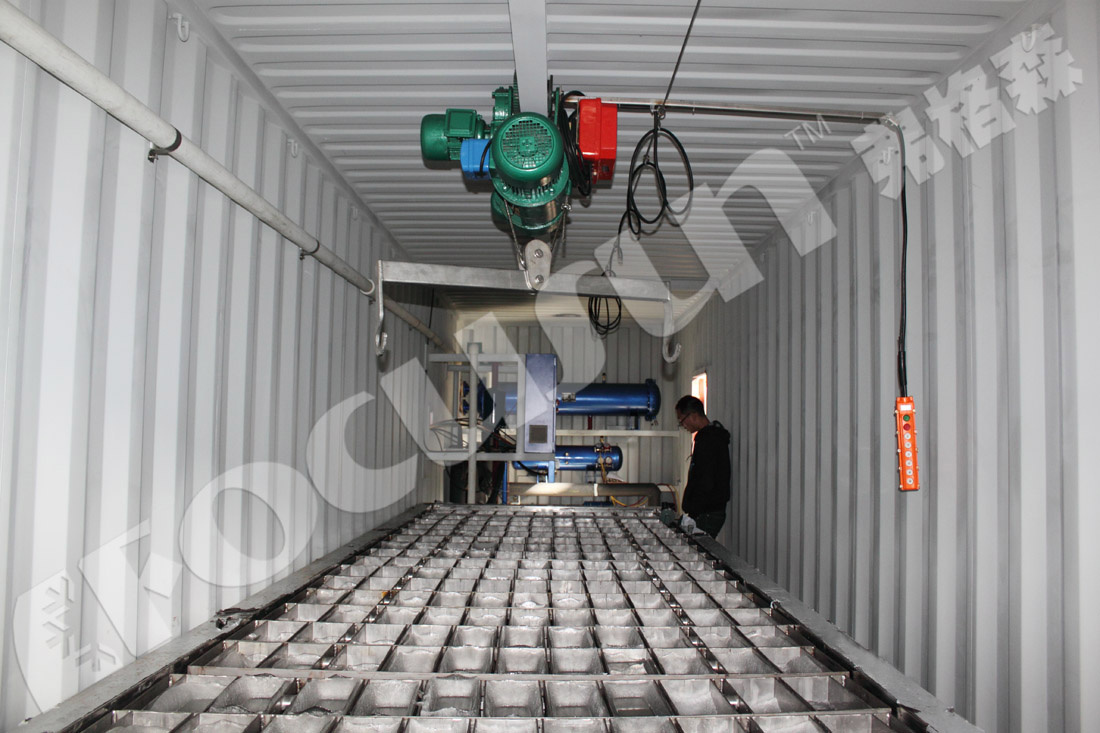

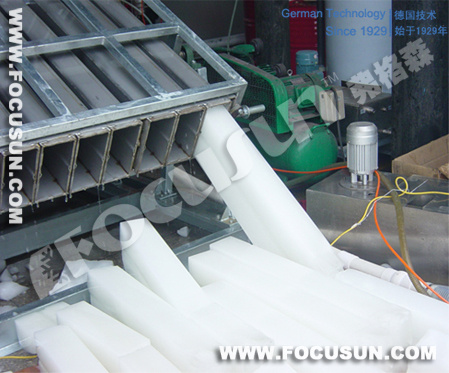

Max capacity of 20'HQ models: 5Ton/dayMax capacity of 40'HQ models: 12.5Ton/dayWorking Principles:Fully feed the ice bucket with water, press the button and start the refrigeration system. The agitator makes the water flow cyclically which will have a heat transfer with the refrigerant inside the Ti evaporative coils and then the temperature is lowered. Then the low temperature brine water has a heat transfer with the water inside the ice bucket which will be lowered to 0ºC below. After a certain ice making time, the water in the ice bucket all becomes ice when the ice thawing system is beginning to run. The crane will hoist a row of buckets down into the ice thaw tank full of running warm water. So the bucket temperature will be rising when the ice surface thaws and gets separated from ice bucket. Then ice buckets will be hoisted to the ice can dump. Fix buckets and then rotate dump upside down and ice is dropped down. Put up the buckets and refill water to a certain level using water feeding gadget, then the crane will hoist the buckets back to the brine water tank and hoist another row of ice buckets in the brine water tank. Thaw ice, drop ice and add water cyclically
Advantage of Focusun:
1. Leading ice making machines manufacturer with rich experience;
2. One-station solution for ice storage room, cold room, packing system, ice delivery system, etc.
3. Adopt famous high quality components to guarantee the quality;
4. Professional team for solution design, manufacture, installment and after-sales service.

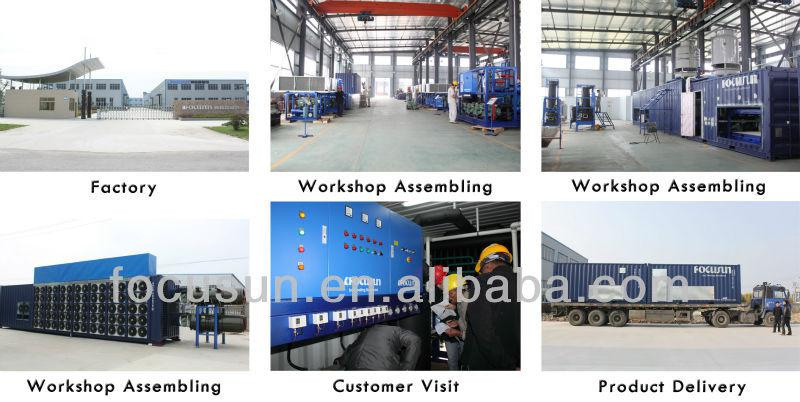

Focusun Factory working studio View:
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.

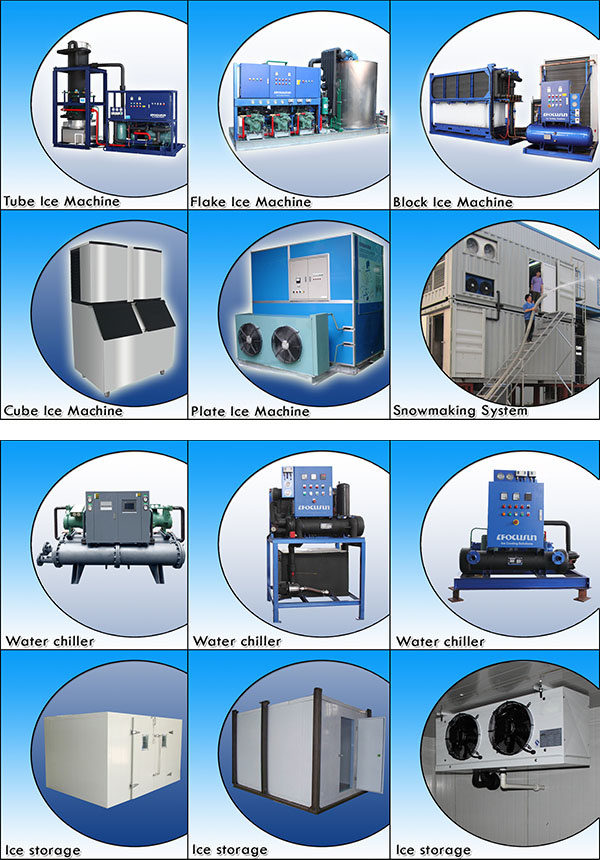

Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
