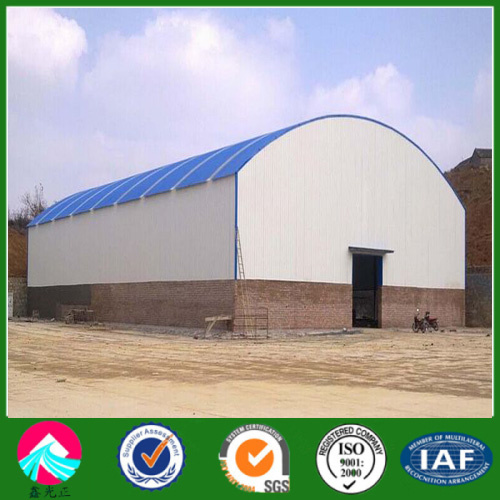

Arched Steel Structure Building

Product Specifications

Prod Model:	Steel building-170
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure Type:	Portal, Truss, Grid Structure
Design Load:	Wind Speed, Snow Load, Earthquake etc
Steel Grade:	Q235B Q345b
Strucuture Anti Rust Grade:	St2.5 Painted, or Hot DIP Galvanized
Roof And Wall:	Steel Sheetsandwich, EPS Cement Panel
Bracing:	Rod Steel, Angle Steel, C/Z Purlin etc.
Connection:	Bolt Connect, Weld Connect
Window:	Aluminum /PVC, as Requested
Door:	Aluminum /PVC, as Requested
Installation:	Engineer Guide Install or Send Installation Team
Type:	H-Section Steel
Application:	Steel Structure Bridge
Forming:	Hot-Rolled Steel
Standard:	BS
Member:	Steel Beam
Trademark:	Quality Carbon Structural Steel and Alloy Structural Steel
Connection Form:	Bolt Connection
Carbon Structural Steel:	Q235
Residential Wall Structure:	Wall Support
Type Of Steel For Building Structure:	H-Section Steel

Product Description

1. Size: 144X60X9m( eave height) 10%slope
2. Wind 100Km/H Snow load: 95kg/m2  no earthquake
3. Total steel weight: 300 ton Q345B & Q235B steel structure
4. Maintenance: Galvanized steel sheet
5. 2 Sets 16 ton Double grider Crane and 2 Set 5 ton Double Grider Crane
6. Surface treatment: Painted
7. Twice primer lacquer: Alkyd Primer (mixed paint); Iron red, medium grey
One coat: Any color, according to your request.
8.Two months delivery date
9.One stop service

ADVANTAGE
*Durability
*High quake-proof, water proof and fire proof
*Easy to install and maintenance
*Fast construction, save time and labor cost
*Prefabricated and customized design
*High space efficiency
*Life time: Over 25-50years
*Environment friendly
*Nice appearance

SERVICE

Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer.
No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture,deliver to installation and after-service.
We can manufacture strictly according to your drawings and request.
We can design ourself to supply you a most suitable proposal to you.

QUALITY

Raw material reserves: Steel bought from major steel mill
Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC Continuous mode of production lines etc

Strictly quality control: Manufacture strictly according to drawings, Inspection every link,Pre assembled before delivery.

DESIGN & DELIVERY & PACKING

Sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.
With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.
Packed in container by sea or by train, with stable package for no damage during transpotation.

CERTIFICATE

We have ISO9001:2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.

Economic type	Mian steel frame	Span 5-8m (unrestricted width and length),less than 7 meters high,column and beam:square tube and C purlin
	Cladding material	Single layer steel sheet/EPS panel/brick wall(supplied by client at site)
	Door	sandwich panel silding door /single door
	Window	PVC window
	Usuage	Simple workshop,warehouse,garage,shading light shed,interim steel building etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia and other countries with low wind speed and no snow.
Standard type	Mian steel frame	Span 10-30 m (unrestricted width and length),less than 20 meters high
	Roof and wall panel	EPS panel/glass wood/rock wool/polyurethane/Mgo/concrete panel/brick wall(supplied by client at site)
	Door	silding door /single door/roller shutter door
	Window	PVC / Aluminium window
	Usuage	workshop,warehouse,garage,shading light shed,shopping mall,office building,showroom,simple hotel etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia,South America,Canada etc.
	Crane	With or without (1 - 50 tons)
Lage span and high strength type	Mian steel frame	Span 30-80 m (unrestricted width and length),less than 12 meters high
	Roof and wall panel	EPS panel/glass wood/rock wool/polyurethane/Mgo/concrete panel/brick wall(supplied by client at site)
	Door	silding door /single door/roller shutter door
	Window	PVC / Aluminium window
	Usuage	workshop,warehouse,garage,shading light shed,shopping mall,office building,showroom,simple hotel etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia,South America,Canada etc.
	Crane	With or without (1 - 50 tons)
Fireproof type	Mian steel frame	Unrestricted width,length,height and span
	Roof and wall panel	Rock wool panel(50mm to 150mm thickness,density:60kg/m3 - 150kg/m3) or rock wool mgo panel
	Door	Fire proof door
	Usuage	workshop,warehouse,garage,shopping mall,office building,showroom,hotel etc.
	Suitable area	Africa,Southeast Asia,Middle East,UAE,Australia,South America,Canada and other countries with firepooof .
	Crane	With or without (1 - 50 tons)
	Paint	Fireproof paint
Heat insulation type	Mian steel frame	Unrestricted width,length,height and span
	Roof and wall panel	Polyurethane panel(50mm to 200mm thickness,density: 35kg/m3 - 45kg/m3) or rock wool mgo panel
	Door	Polyurethane door or hear insulation door
	Usuage	coolroom,fresh-keeping cold storage,workshop,warehouse,garage,shopping mall,office building,showroom,hotel etc.
	Suitable area	Russia,Canada,Northern Europe and other countries with low temperature and high requirement for heat insulation .
	Crane	With or without (1 - 50 tons)
