Product Specifications
| Prod Model: |
W38VR / D32VR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bulb: |
White CREE Xm-L U2 LED |
| Bulb 2: |
Red CREE XP-E N3 LED |
| Color Temperature: |
White LED: 5000k; Red LED: 610-630 Nm Wavelength |
| Three Output Levels: |
White High>White Low>Red |
| Runtime: |
High: 90-120min, Low: 240 Min, Red:: 210 |
| Angle Of Light Beam: |
120° |
| Battery: |
32650 Li- Ion Battery *1 |
| Brightness: |
1400 Lumens |
| Waterproof Standard: |
IP68 |
| Emitting Color: |
White |
| Certification: |
CE |
| Application: |
Diving Underwater Photography Underwater Camer |
Product Description

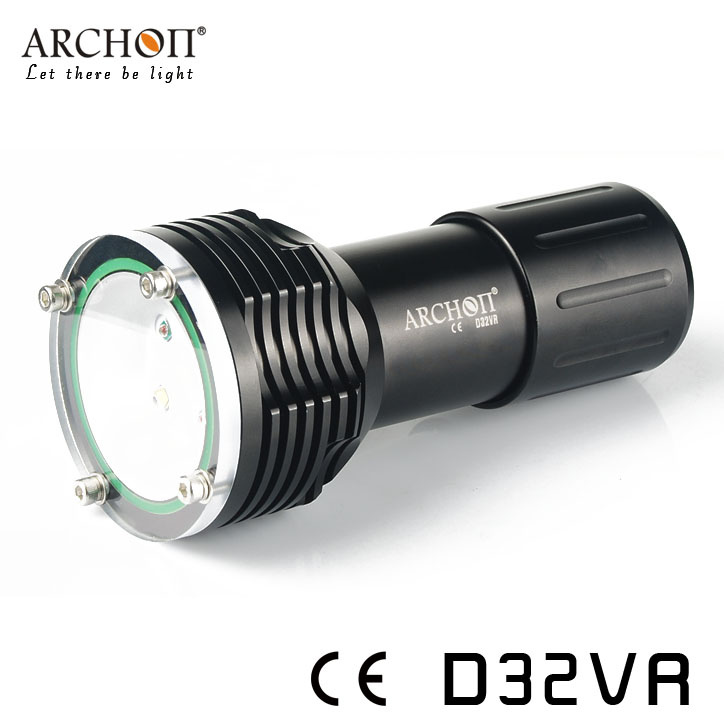

Archon W38VR/D32VR Diving Light
OPERATING INSTRUCTIONS
PRODUCT SPECIFICATIONS
Model: W38VR multifunction underwater photographing Light
Bulb: White CREE XM-L U2 LED *2 (max 1400 Lumens); Red CREE XP-E N3 LED*2 (max 200 Lumens)
Color temperature: White LED: 5000k; Red LED: 610-630 nm Wavelength Three output levels. White high> White low> Red
Runtime: High: 90-120min, Low: 240 min, Red: 210 min
Reflector: No hotspot design, no reflector
Lens: 6mm Polycarbonate Board.
Body material: Durable aircraft-grade aluminum.
Angle of light beam: 120°
Surface treatment: Premium Type III hard-anodizing.
Color: Black
Battery: 32650 Li- ion battery *1.
With battery over-discharging protection, polarity reversing protection
Operation voltage: 2.8V to 4.5V.
Waterproof: 100 meters underwater
Dimensions: 133mm (length)*28mm (dia. Of body)*60mm (dia. Of Head).
Impact resistance: 1.5M.
Weight: 290 grams (without battery); 430 grams (with battery)
Underwater Weight: 320 grams (with battery)
BATTERY INSTALLATION
1. Remove the tail by turning counter-clockwise.
2. Remove used batteries and replace with fresh batteries as shown by The polarity stickers.
3. Mount the tail by turning clockwise. DO NOT ACTIVATE IT YET.
BATTERY CHARGING
1. Plug the charger in the wall power socket, the indicator light is green In the free-load status.
2. Put the battery in the slot of the charger.
3. The indicator light is red if the battery is not fully charged; It will turn Green after fully charged.
4. Take out the fully charged battery and use them in the diving light.
ON/OFF Turn the tail clockwise until the light activates. DO NOT OVERTIGHTEN.
To turn the light off, back off the tail counter-clockwise until the light Goes off.
Continue to back off for approximately one full turn to eliminate the Possibility of the light activating accidentally in storage. For Underwater use, backing off too much will allow water to enter past the O-ring.
MODES CHANGING
Successive switch ON-OFF within two seconds to cycle through high, Low, red.
SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged o-ring or Mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the O-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
CAUTION
If the light is not to be used for some time, remove the batteries to Prevent possible leakage or corrosion. Please remove the batteries During transportation to prevent it from misoperation.
WARRANTY RETURN POLICY
Please contact your local distributor or retailer for information on how To handle your warranty items.
REPLACEMENT PARTS
CAT# DESCRIPTION
W388 O-ring
W389 Lens
