Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Cable Mode: |
single-mode or multimode |
| Fiber Type: |
simplex or duplex or other |
| Fiber Diameter: |
0.9mm,2.0mm,3.0mm |
| Fiber Length: |
1m,2m,3m or other length |
| Application: |
Communication |
| Type: |
Single-Mode or Multi-Mode |
| Connection Structure: |
Sc/APC Sc/Upc LC/APC LC/Upc FC/APC FC/Upc St/Upc S |
| Certification: |
Telcordia Gr-326-Core,Ice Standard |
Product Description
1. Product Introduction

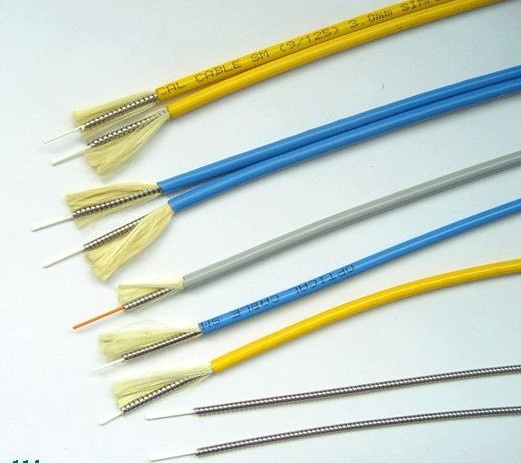

This optical cable is used to micro stainless steel pipe as protection at outside of optical fiber. Compared with traditional optical fiber, this optical fiber feathers high compressive resistance, high tensile strength, anti-rat bite, small diameter, flexible, etc.,
2. Application
*Optical fiber patchcord or pigtail
*Interconnect between instruments, communication equipments
3. Features
*High indentation strength, high tensile strength,
*Gopher protected, small diameter, flexibility and easy bend.
*Excellent stripping performance of tight buffer fiber
4. Applications
*Process armored jumper
*Fiber optic temperature transmission project
*Communication wiring of army field fight
*Oil field, mining operation, radar, etc communication transmission
5. Standards
*Comply with standard YD/T 1258.2-2003, ICEA-596, GR-409, ICE60794-2-10/11 etc.
*Meet the requirements of UL approval for OFNR, OFNP.
6. Specifications
The details are in the form below
|
fiber count code |
Outside diameter (mm) |
Tensile strength Long term/short term (N) |
Crush resistance Long term/short term (N/100 mm) |
Bending radius Static/Dynamic (mm) |
The general decay 1310/1550nm 850/1300nm |
|
1 |
3 |
150/300 |
3000/4000 |
30/D60D |
≤ 0.4/0.3≤ 3.0/1.0 |
|
2 |
3.3 |
150/300 |
3000/4000 |
30D/60D |
≤ 0.4/0.3≤ 3.0/1.0 |
