Product Specifications
| Prod Model: |
4.24CL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
4-Input 8-Output Digital Speaker Processor |
| Application: |
Professional Performance |
Product Description
Ashly 4.24C Style Processor
Speaker processor
Digital Crossover/System Processor

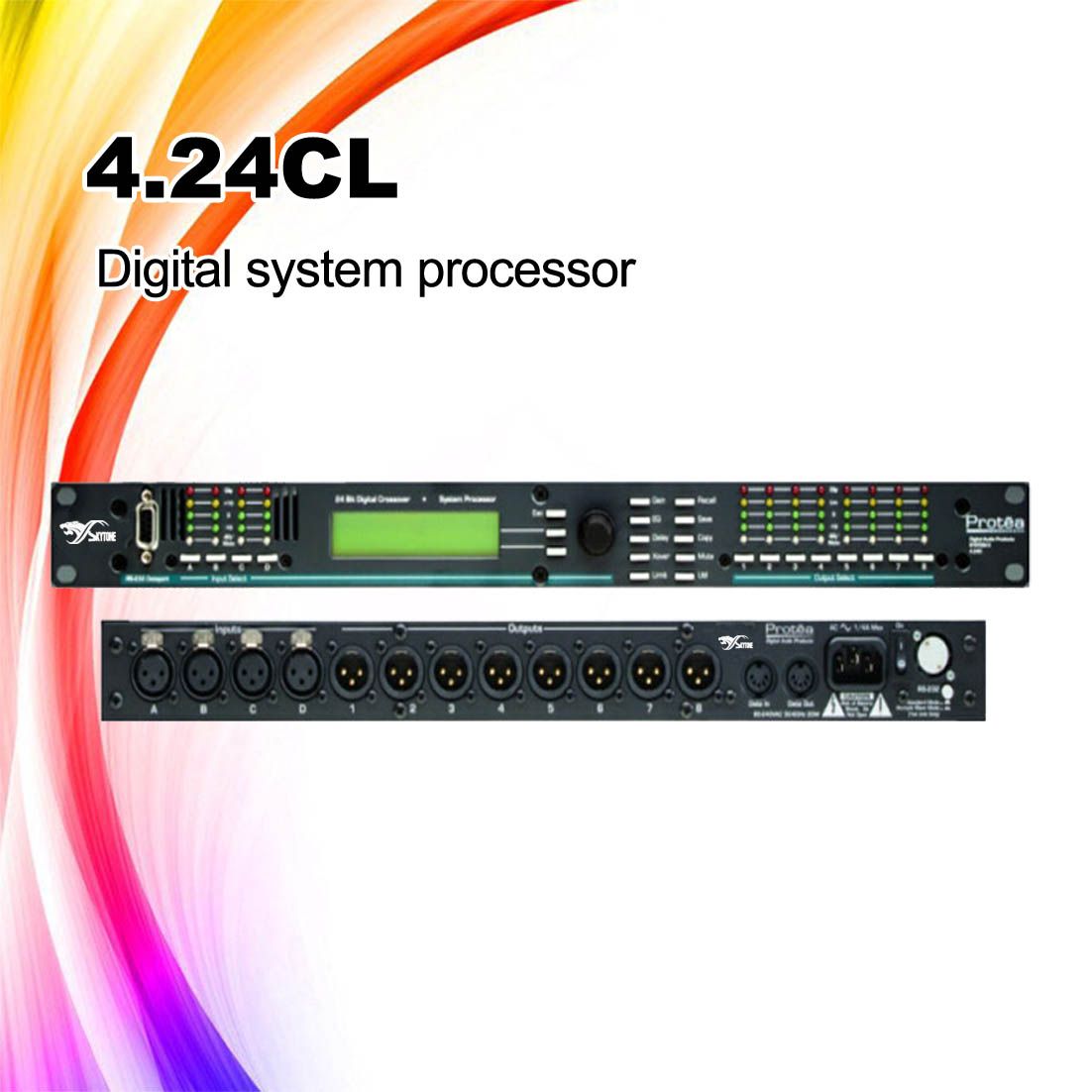

Ashly 4.24cl Style Professional Speaker Processor
A powerful tool for live sound control
The Protea 4.24C is a 4-input, 8-output speaker processor coupled with a user interface that is so easy you won't even need the manual to set up your system. The Protea System II 4.24C Digital Crossover/System Processor has all the audio processing tools needed for precise crossover and sound control. Each input allows you to control gain, delay and six parametric, low or high shelf filters. In addition to setting crossover frequencies, each output may be assigned to any one or a combination of inputs, allows you to program four parametric, low or high shelf filters, delay for time delay adjustments, output gain, reverse polarity and a compressor/limiter for speaker protection.
Features:
--One Rack Space
--Four Inputs — Eight Outputs
--Outputs Assignable to Any Input
--Crossover, EQ, Delay and Limiter
--Functions
--Linkwitz-Riley, Bessel and
--Butterworth Filters
--12, 18, 24 and 48dB/Octave Slopes
--Parametric EQ: Full Bandwidth, 1/64th to 4 Octave Range
--Input and Output Delay
--Limiter on Each Output
--Intuitive User Interface
--Programmable by Front Panel, PC or
--MIDI
--Individual Input and Output
--Metering
--Balanced Inputs and Outputs
--XLR Audio Connections
--Password Protected System Security
| Technical Specification | 4.24C |
| Frequence response | 20Hz – 20kHz( +/- 0.25dB) |
| Distortion: | < 0.01%, in 1KHz, +20dBu |
| Dynamic Range: | 20Hz – 20kHz( > 110dB)(not weighted) |
| Output noise | < -90dB(not weighted) |
| Power supply voltage: | 80-260VAC, 60/50Hz, 30W(The maximum power) |
| Environmental temperature: | 40° F - 120° F(4° C-49° C) |
| Size: | 482.6mm× 44.4mm× 152.4mm |
| Weight: | 4.5kg |
Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake.
We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.
Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
