Product Specifications
| Prod Model: |
4.8SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

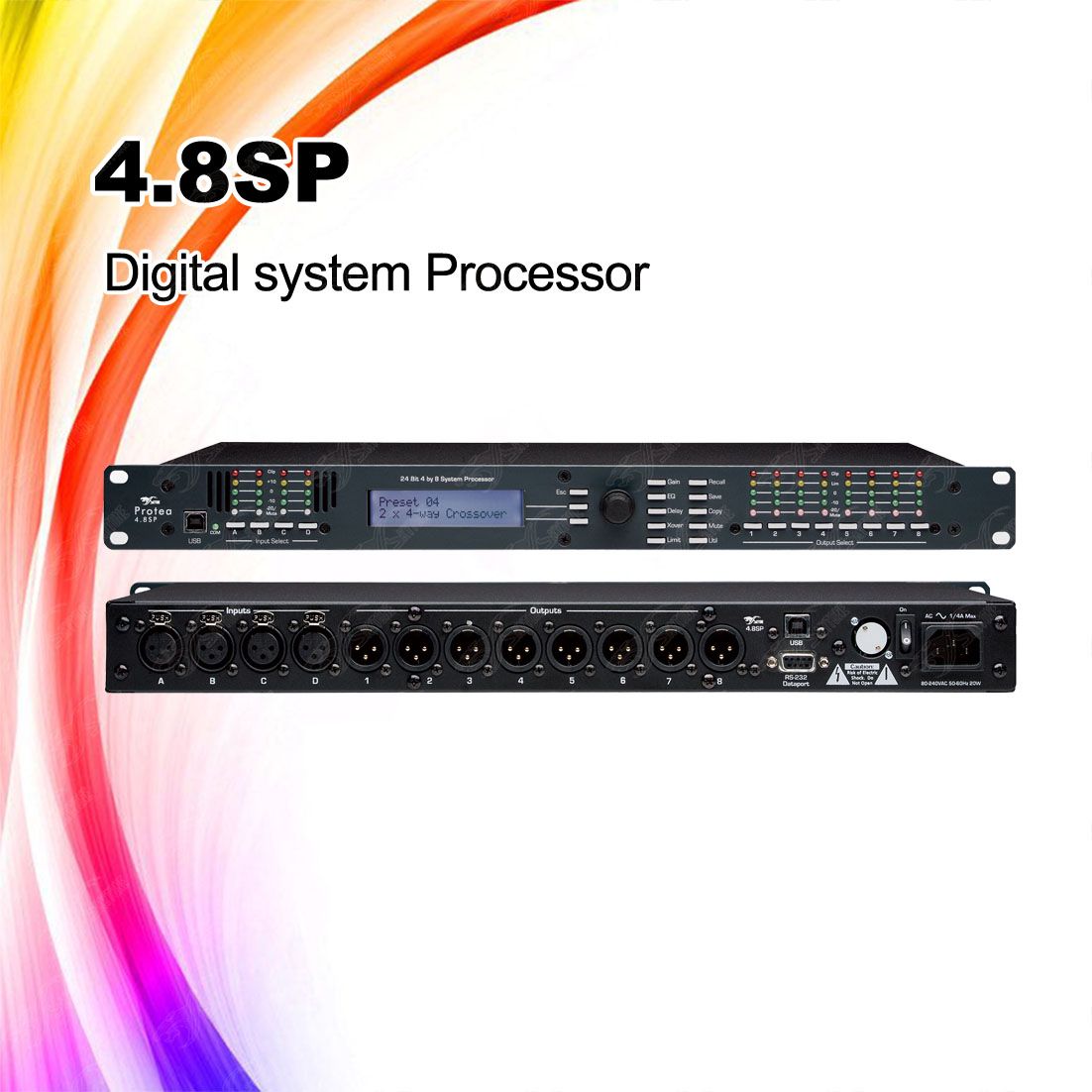

Ashly 4.8SP Style Processor
24-Bit Digital Processing
Protea System Processor (4.8)
The 4.8SP is the 4-in by 8-out model. With active front panel controls, SP's are at home in a dynamic, live sound environment. The USB inputs (front and rear panel) provide set-up via Protea™ Software, making SP's a great choice for permanent installations.
Features:
--Front Panel Parameter Control
-- Single rack space with XLR audio connections
-- Extremely intuitive user interface
--Crossover, EQ, delay and limiter functions
--Outputs assignable to any input
--Front panel or PC programming and control with 4 levels of security
--USB and RS-232 interface
--Third-party control friendly
--Balanced inputs and outputs
--Linkwitz-Riley, Bessel and Butterworth filters
--12, 18, 24 and 48dB/octave slopes
--Parametric EQ: 1/64th to 4 octave range
--682ms input and output delay (1, 364ms total)
--Limiter on each output
-- Individual input and output metering
--Safety/Compliance: CE, FCC, RoHS

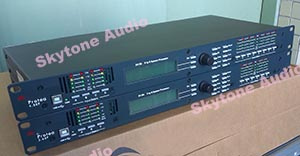

Real photos:
| 4.8SP SPECIFICATIONS |
| Input | Active Balanced, 18KΩ |
| Max. Input Level | +20dBu |
| Input Gain Range | -40dB to +12dB |
| Output | Active Balanced, 112Ω |
| Max. Output Level | +20dBu |
| Output Gain Range | -40dB to +12dB |
| EQ |
| EQ Filter Types | 1st or 2nd Order High or Low Shelf, Parametric |
| Shelving Filter Boost/Cut Range | ±15dB |
| Shelving Filter Frequency Range | Low Shelf 19.7Hz to 2kHz, High Shelf 3.8kHz to 21.9kHz |
| Parametric Filter Boost/Cut Range | +15dB/-30dB |
| Parametric Filter Frequency Range | 19.7Hz to 21.9kHz, 1/24 Octave Steps |
| Parametric Filter Bandwidth | Four Octaves to 1/64 Octave |
| Input and Output Delay | 0-682 milliseconds |
| Crossover |
| HPF and LPF Frequency Range | 19.7Hz to 21.9kHz, Off |
| Available Filter Types | 12dB/Oct Butterworth,
12dB/Oct Bessel, 12dB/Oct Linkwitz-Riley
18dB/Oct Bessel, 18dB/Oct Linkwitz-Riley
24dB/Oct Butterworth,
24dB/Oct Bessel, 24dB/Oct Linkwitz-Riley
48dB/Oct Butterworth,
48dB/Oct Bessel, 48dB/Oct Linkwitz-Riley |
