Product Specifications
| Prod Model: |
EC21-7060A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
700X600X200mm |
| Type: |
Universal Testing Machine |
| Weight: |
1000-2000Kg |
Product Description

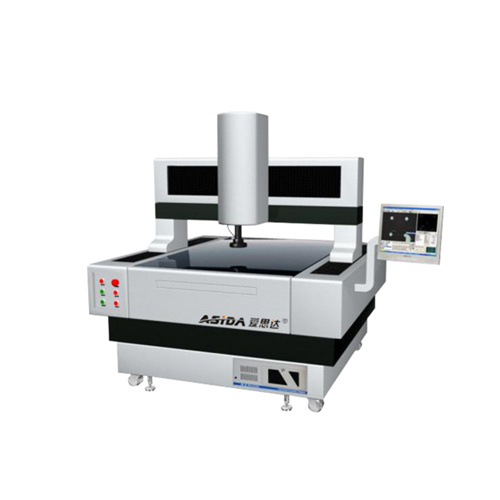

USAGE
Applicable to two-dimensional measuring instruments mainly include points, lines, circles, rectangles and other geometric elements and zeropieces of length, angle, contour, shape, surface shape, increasing three-dimensional measuring probe can be realizde.
CHARACTERISTIC
1. Used of natural granite base and column sitting, strong stability, high hardmess. Not easy to deformation; Piece length, angle, contour, shape, surface shape, increasing three-dimensional measuring probe can realized;
2. X, Y to the use of air bearings, granite-oriented, can work long hours to ensure the accuracy and stability of mechanical systems.
3. The German edentulous screw and ball screw drive are used on machine drivers;
4. Ring LED cold light source, long life, will not produce thermal deformation measurement;
5. Optical system quality, bright and clear images, image reduction is good;
6. Three -axis servo motor drive with Panasonic.
| ASIDA7050A | ASIDA70560A | ASIDA8070A |
| (X.Y.Z)(X.Y.Z Stroke) | 600×500×200 | 700×600×150 | 800×700×200 |
| (Loader Size) | 650×550mm | 750×650 mm | 850×650mm |
| (Max Loading) | 30KG |
| (Base Materials) | 00 00 Granite |
| (Objective Lens Focal ) | 82mm |
| (Objective lens) | 0.75X_5X |
| (Total Max Magnification) | 30X_230X |
| (Grating Solution) | ≤0.001mm |
| X\Y(Linear Accuracy) | ≤(3+L/200)um (L mm) |
| (Repeat Accuracy) | ≤±0.003mm |
| (mm)(Total Machine Size) | 1300×1400×1800 | 1500×1400×1800 | 1550×1650×1800 |
| (Total Machine Weight) | 1800Kg | 2000Kg | 24800Kg |
| (Measuring Software) | ASIDA VMA 3.00.01(\\) |
| (Data Output Format) | DXF\EXCEL\WORD |
| (OS) | WindowsXP Pro |
| PC(PC Requirement) | CPU:(Dul Core),≥2G(Memory),≥320G(Hard Disk) |
| (Power) | 220/50HZ(200V/50HZ) |
| ( Work Environment) | (Temperature):20+/-2OC;(Humidity):45%~75%;(Vibration):<0.002g,<15Hz |
| (Optional Accessories) | NAVITAR(USA NAVITAR Lens System);Renishaw
(UK Renishaw Probe System);(Japan Keyence Laser Sensor System) |
| (Remark) | (The stroke of machine can be customized depending customer requirements) |
