Product Specifications
| Prod Model: |
WNS1-15t/h |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Style: |
Horizontal |
| Gas Flow Type: |
Fire Tube |
| Fuel: |
Gas-Fired |
| Usage: |
Industrial |
| Pressure: |
Pressure |
| Burning Style: |
Chamber Combustion Boiler |
| Media: |
Steam |
| Water Circulation: |
Natural Circulation |
| Manufacturing Level: |
A |
Product Description

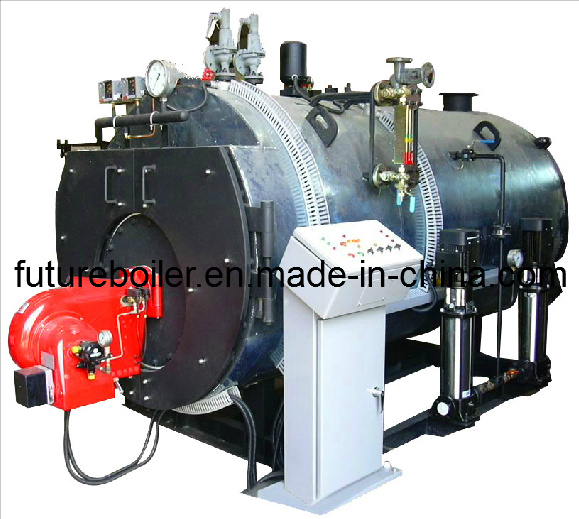

ASME Code Oil/Gas Fired Steam Boiler:
Product features:
1) Steam boiler controller: English menu and LCD machine-man interface, showing the boiler working condition dynamically.
2) Steam boiler PLC controller: Working automatically according to the users' setting program
3) Steam boiler PLC controller: The load is controlled and adjusted automatically by one section or multi-section. Automatic feed water which showed by graph, with multiple chaining protections, in addition of dual independent water lever control and alarm devices, as well as triple pressure protection and alarm devices: The boiler can work safely in every condition.
4) Steam boiler PLC controller: Standard RS485 interface enables centralized control and remote monitor is reliable. What's more, the boilers can form anent and work automatically accord to load.
5) Steam boiler: With imported color steel(stainless steel)and glass silk package, the boiler not only has elegant appearances but also never rust.
6) Steam boiler: Adopting international advanced and unique design, the boiler is reliable, economical and efficient.
7) Steam boiler: Fully wet back and centre flame combustion structure, increase the furnace space and heating area, and expand the boiler life.
8) 4. CE marking as per Pressure Equipment Directive (PED 97/23/EC) & ASME Specifications as options.
Industrial Steam Boiler Functions:
Used in Factory, School, Hotel, Hospital, Greenhouses, Food Processing, Garment Processing Aids and Drink&Milk Processing industries, etc.
|
Model |
WNS0.5-0.7-Y.Q |
WNS1-0.7-Y.Q |
WNS1.5-1.0-Y.Q |
WNS2-1.0-Y.Q |
WNS3-1.0-Y.Q |
WNS4-1.0-Y.Q |
|
Item |
Unit |
|
Steam Capacity |
t/h |
0.5 |
1 |
1.5 |
2 |
3 |
4 |
|
Utilization Horsepower |
BHP |
32 |
64 |
96 |
128 |
192 |
256 |
|
Equivalent Output |
lbs/h |
1100 |
2200 |
3300 |
4400 |
6600 |
8800 |
|
Rated Working Pressure |
MPa |
0.7 (1.0) |
1.0 (1.25) |
1.0 (1.25,1.6) |
|
Saturated Steam Temp. |
°C |
171 (184) |
184 (193) |
184 (193,204) |
|
Heating Surface |
m2 |
14.3 |
25 |
36 |
58.8 |
90.66 |
111.8 |
|
Fuel Consumption |
Light Diesel |
Kg/h |
34 |
68 |
102 |
136 |
204 |
272 |
|
Heavy Oil |
Kg/h |
35.36 |
69.7 |
104 |
139.4 |
210 |
278.8 |
|
Natural Gas |
Nm3/h |
37 |
74 |
111 |
148 |
222 |
296 |
|
LPG |
Nm3/h |
13.4 |
26 |
39.1 |
56 |
85 |
113 |
|
Water Inlet Dia. |
DN |
25 |
32 |
32 |
40 |
50 |
50 |
|
Main Steam Outlet Dia. |
DN |
40 |
50 |
65 |
80 |
80 |
100 |
|
Safety Valve Dia. |
DN |
40 |
50 |
2×40 |
2×40 |
2×40 |
2×50 |
|
Blowdown Valve Dia. |
DN |
40 |
40 |
40 |
50 |
50 |
2×50 |
|
Overall Dimension |
mm |
2800×2100×2100 |
3500×2300×2350 |
3900×2500×2450 |
4300×2600×2500 |
5300×2850×2980 |
5840×3200×3200 |
|
Net Weight |
kg |
3300 |
4500 |
6200 |
8500 |
9300 |
13300 |
|
Model |
WNS5-1.25-Y.Q |
WNS6-1.25-Y.Q |
WNS8 -1.0-Y.Q |
WNS10-1.25-Y.Q |
WNS12-1.25-Y.Q |
WNS15-1.25-Y.Q |
|
Item |
Unit |
|
Steam Capacity |
t/h |
5 |
6 |
8 |
10 |
12 |
15 |
|
Utilization Horsepower |
BHP |
320 |
384 |
512 |
640 |
768 |
960 |
|
Equivalent Output |
lbs/h |
11000 |
13200 |
17600 |
22000 |
26400 |
33000 |
|
Rated Working Pressure |
MPa |
1.25 (1.6, 2.5) |
|
Saturated Steam Temp. |
°C |
193 (204, 224) |
|
Heating Surface |
m2 |
163.1 |
181.17 |
190.77 |
232.16 |
346.3 |
467.5 |
|
Fuel Consumption |
Light Diesel |
Kg/h |
34 |
68 |
102 |
136 |
204 |
272 |
|
Heavy Oil |
Kg/h |
348.4 |
418.1 |
553 |
686.4 |
836 |
1044.9 |
|
Natural Gas |
Nm3/h |
37 |
74 |
111 |
148 |
222 |
296 |
|
LPG |
Nm3/h |
130 |
145 |
226 |
260 |
290 |
390 |
|
Water Inlet Dia. |
DN |
40 |
40 |
50 |
50 |
50 |
50 |
|
Main Steam Outlet Dia. |
DN |
125 |
125 |
150 |
150 |
200 |
200 |
|
Safety Valve Dia. |
DN |
80/50 |
80/50 |
2×80 |
2×80 |
2×100 |
2×100 |
|
Blowdown Valve Dia. |
DN |
2×50 |
2×50 |
2×50 |
2×50 |
3×50 |
3×50 |
|
Overall Dimension |
mm |
6730×2900×3600 |
7200×3260×3900 |
7500×3680×4100 |
8100×3800×4200 |
8200×3800×4600 |
8700×4050×4800 |
|
Net Weight |
kg |
14300 |
19500 |
22600 |
25800 |
32700 |
40500 |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
