Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fire Resistant: |
Australia Standard |
Thermal Insulation: |
Sound Insulation |
Water Proof: |
Green Material |
Fashionable: |
High Strength |
Easy Installation: |
Safe&Durability |
Grade: |
Grade A |
Appearance: |
Panel |
Color: |
White |
Material: |
Non-asbestos |
Type: |
High-temperature Adhesives |
Surface Finishing: |
Texture |
Edge: |
Square |
Shape: |
Square |
Refractory Temperature: |
1580~1770℃ |
Usage: |
Building |
Product Description

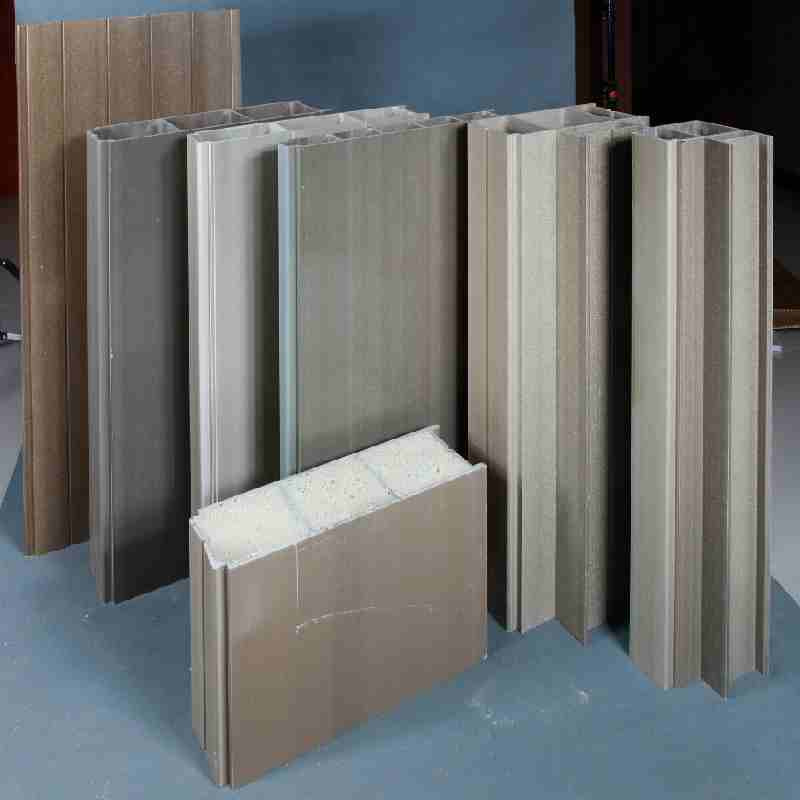

Luxwood wall panel:
Component and technology
polyvinyl chloride as adhesive, flying ash, tailing or other inorganic material as main component, mixing with wood fiber , fire retardant and other additives , formed by extrusion technology.
Application
Popularly used as wall structure and roof structure in civil building, business building, public service, temporary housing, gym, hotel, hospital, department, industry building.
Item | Standard | Results |
Planar density, kg/m2 | JG/T 169-2005 | 42.0 |
Impact resistance | panel remained intact after 7 times impact |
Hanging strength | without damage under1000N hanging load, 24h |
Compression strength,MPa | 6.9 |
Softening coefficient | 0.99 |
Heat transfer coefficient, W/(m2*K) | GB/T 13475-2008 | 0.30 |
Compression load, kN | GB 50152-1992 | 325 |
Sound reduction index | GB/T 19889.3-2005 GB/T50121-2005 | RW(C,Ctr)=48(-3;-9)dB |
Frost resistance | JG/T 169-2005 | no crack, without change on surface |
limit of fire resistance, h | GB/T9978.1-2008 | 2.15 |
Fire-protection rating | GB 8624-1997 | Non-combustible A |
Formaldehyde release, mg/L | GB 18580-2001 | non |
Interior exposure index | GB/T 6566-2010 | 0.1 |
Exterior exposure index | 0.2 |
Luxwood wall properties Fire retardant The flame retardant and smoke prevent additives in the recipe can effectively stop the wall panel get fired.
As the test report shows the limit of fire resistance of Luxwood wall panel exceeded 2 hours, belong to non-combustible A.
Energy-saving and heat prevention Take 150mm Luxwood wall panel as example, when the entire wall body is 197mm, heat index is 0.3 [W/(m2
·K)].
While fired hollow brick and concrete block construct wall body normally 250-320mm thick, but heat index 0.5-0.6[W/(m2
·K)].
Environment friendly Limits of radio-nuclides formaldehyde content in Luxwood panel is low, which is no harm for people
's health.
The panel could be recycled and reused after pulling down or remove the house , no construction waste created.
High strength , low weight Take 150mm Luxwood wall panel (42kg/m2)as example, entire wall body weight is no more than 60 kg/m2 . Each panel(150*450*2800mm) can afford 328KN compressed load vertically. Low self-weight enable the panel good quack-proof property and reduce risk in earthquake .
While fired hollow brick and concrete block construct wall (200mm) normally 3-4 times the Luxwood wall weight.
We are an Australian-based engineering company specialising in the manufacture and distribution of Composite Polymer Extruded Panels. The products are manufactured in China using world-class extrusion techniques and exclusively distributed to the Asia Pacfic region. We are committed to bring you high quality products at the best possible prices.
Our products are manufactured in our own warehouse in China, allowing us to provide excellent products without additional expenses factored into the price. PHE Solutions employs 90 staff in our state-of-the-art China manufacturing plant. We are constantly striving to improve our products, and are undergoing extensive testing to further ensure the quality of our products.
If you're looking to undertake your own home renovation or for alternative commercial applications, look no further than PHE Solutions. Our products can be used in many scenarios including:
Multipurpose Mining Camps,
Emergency Housing,
Schools and Halls,
Eco Housing,
And many more.
We stand by our products. Contact us today to find out how we can help you complete your next project at the best possible price.
